Operation CHARM: Car repair manuals for everyone.
Home >> Pontiac >> 1999 >> Firebird V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Amplifier, Sound System

Amplifier, Sound System

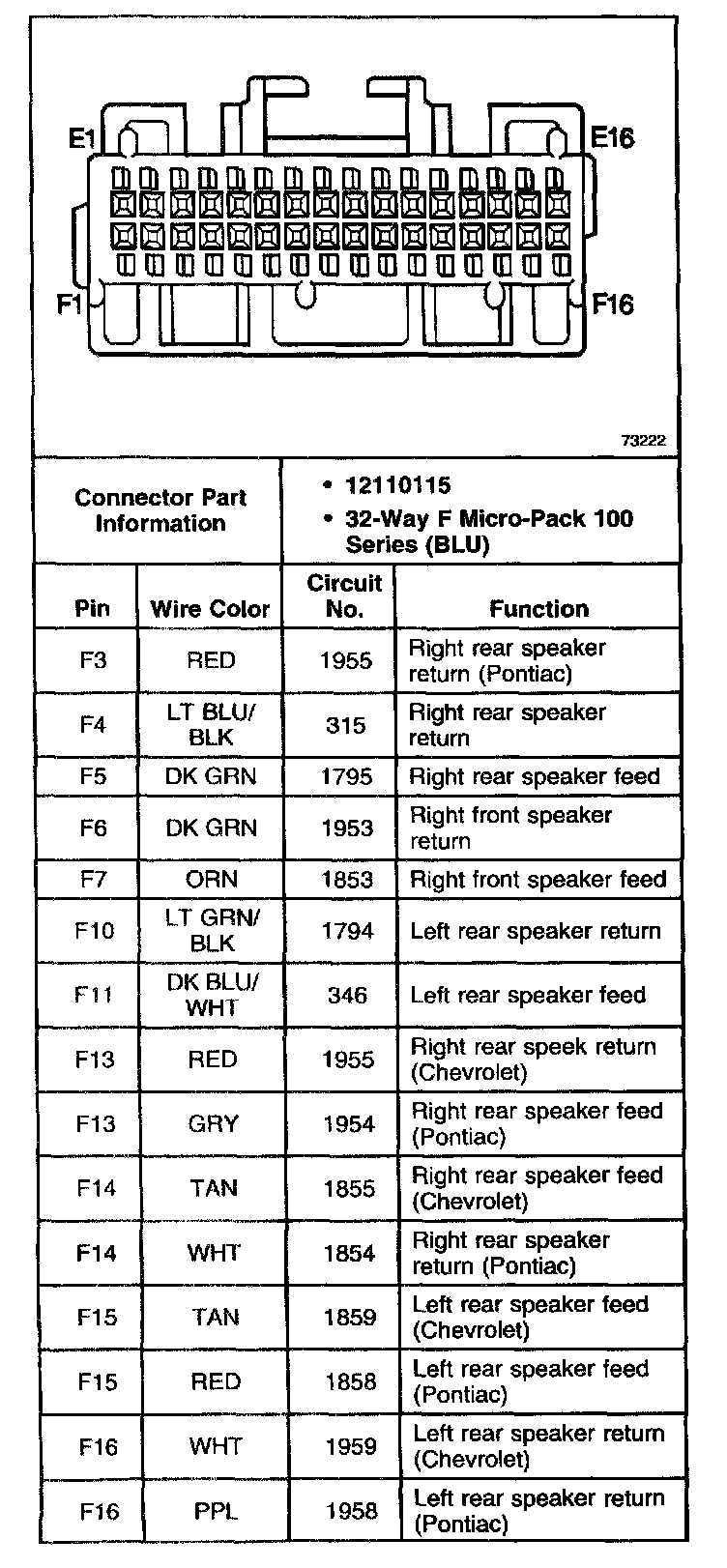

Amplifier (Part 1 Of 2):

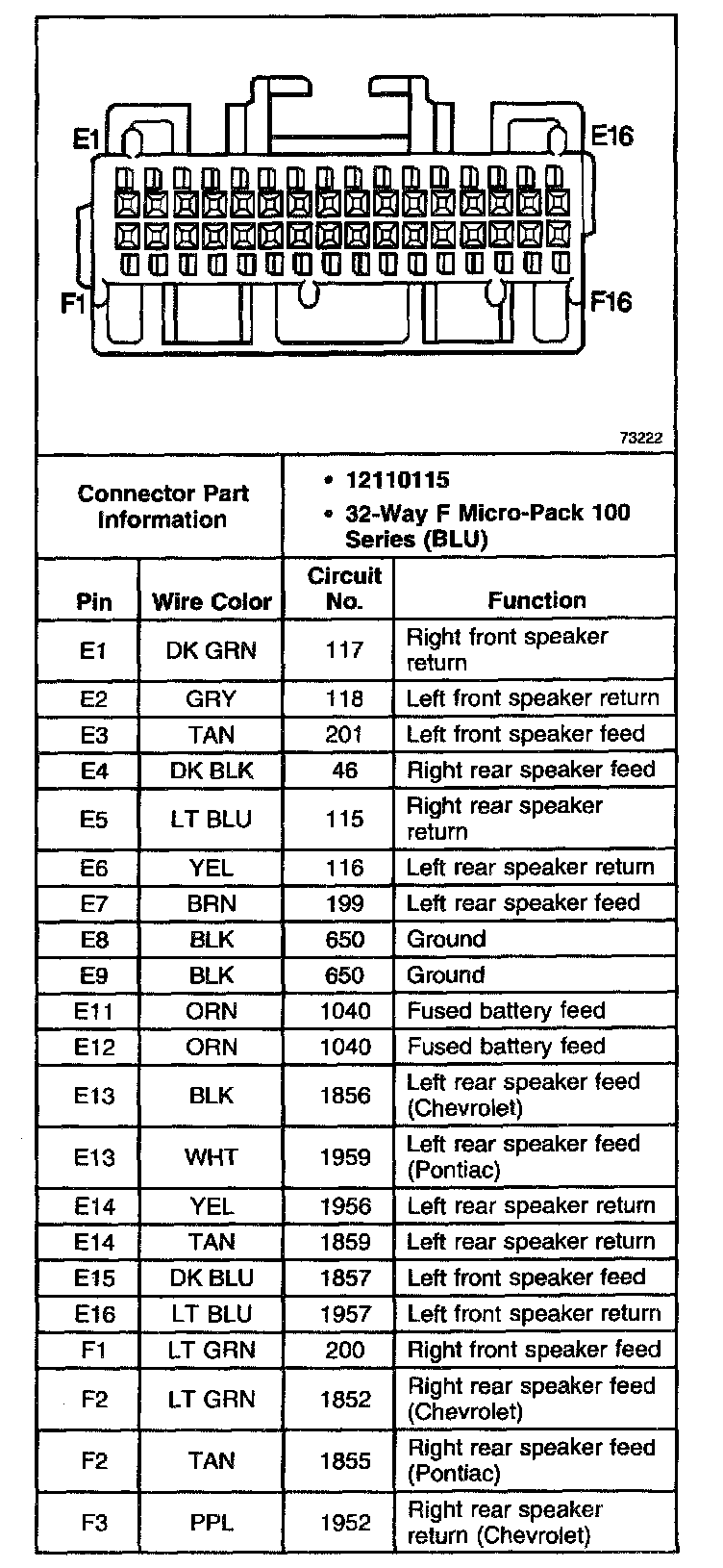

Amplifier (Part 2 Of 2):
