Shift Solenoid, A/T

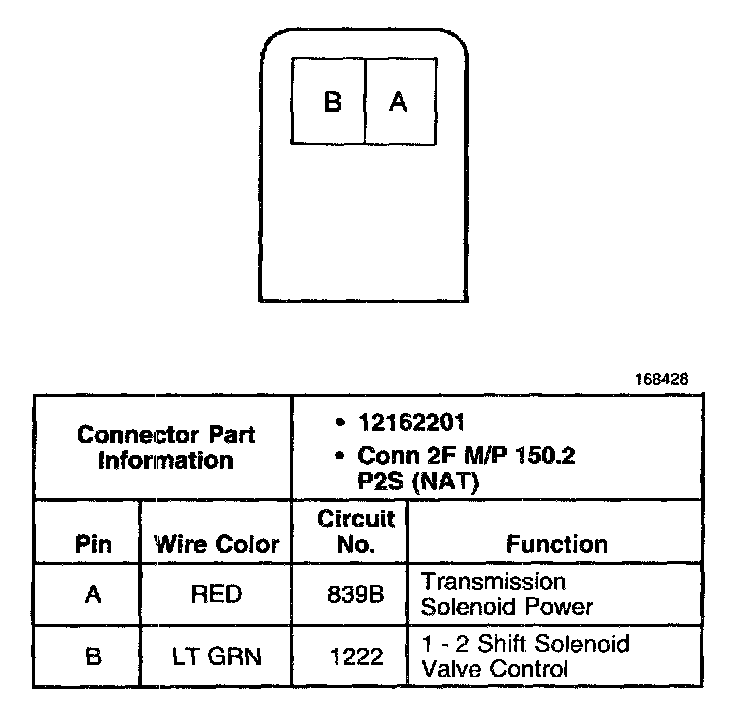

1 - 2 Shift Solenoid (SS) Valve Connector, Wiring Harness Side





2 - 3 Shift Solenoid (SS) Valve Connector, Wiring Harness Side

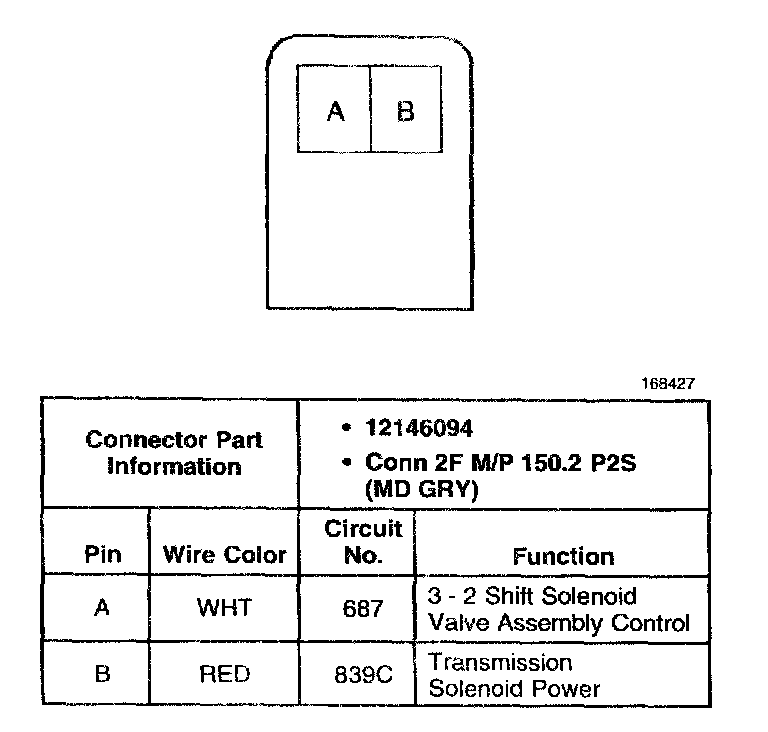

3 - 2 Shift Solenoid (SS) Valve Assembly Connector, Wiring Harness Side
