Home >> Pontiac >> 1999 >> Firebird V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brake Lamp >> Stoplamp Switch (C1)

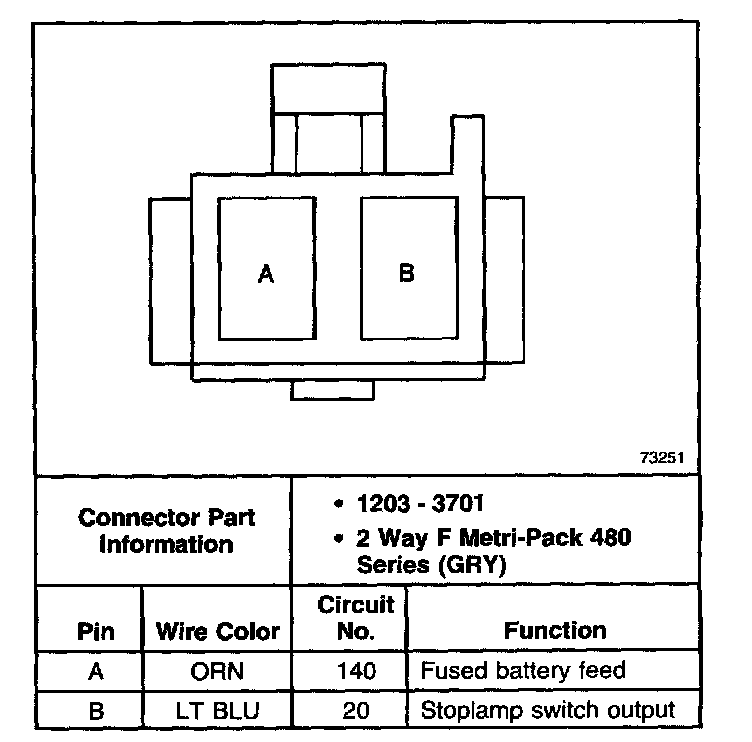

Stoplamp Switch (C1)

Stoplamp Switch (C1):
