C200A/C200D
C200A/C200D

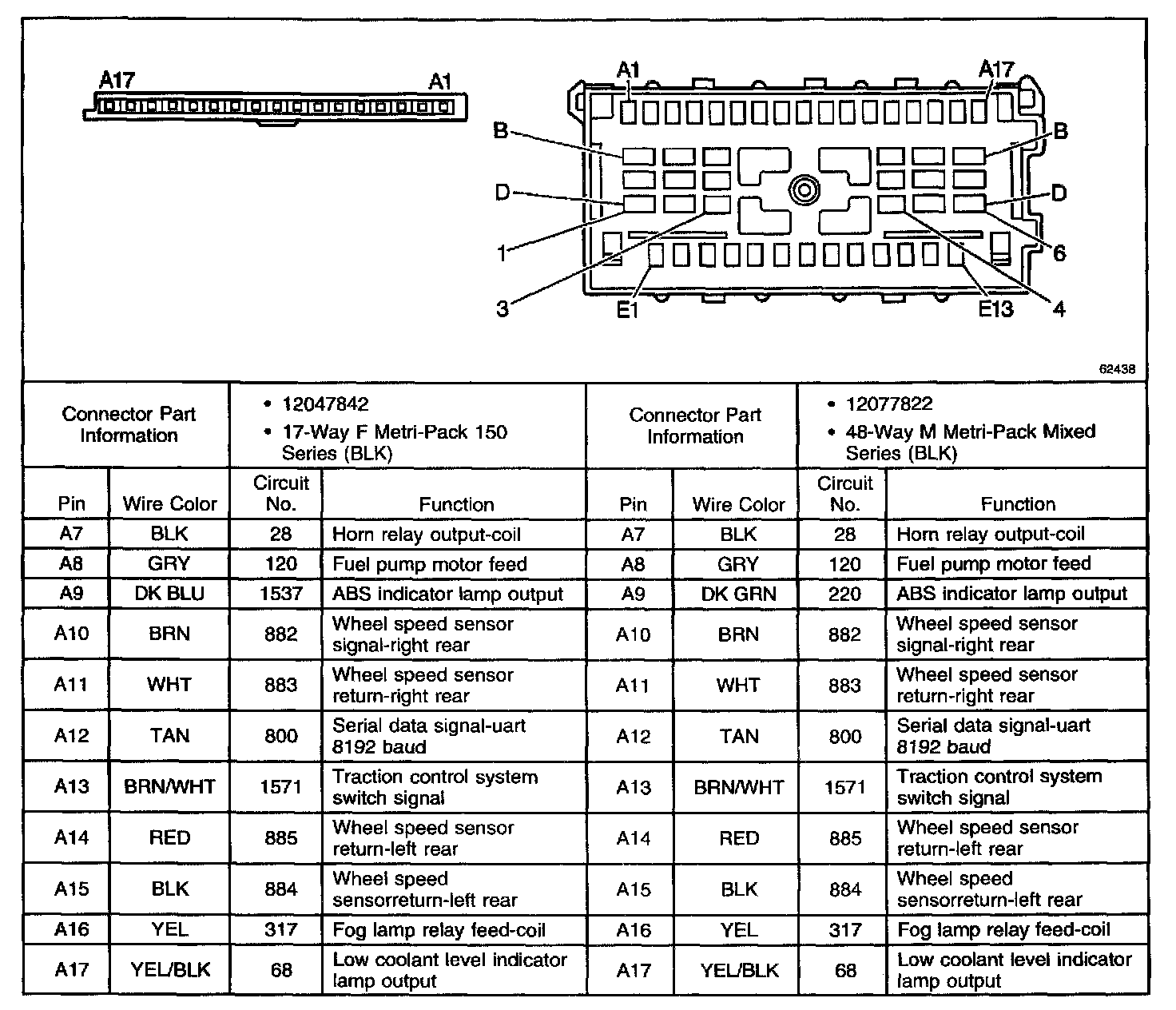

In-Line Connector C200A/C200D (Part 1 Of 2):

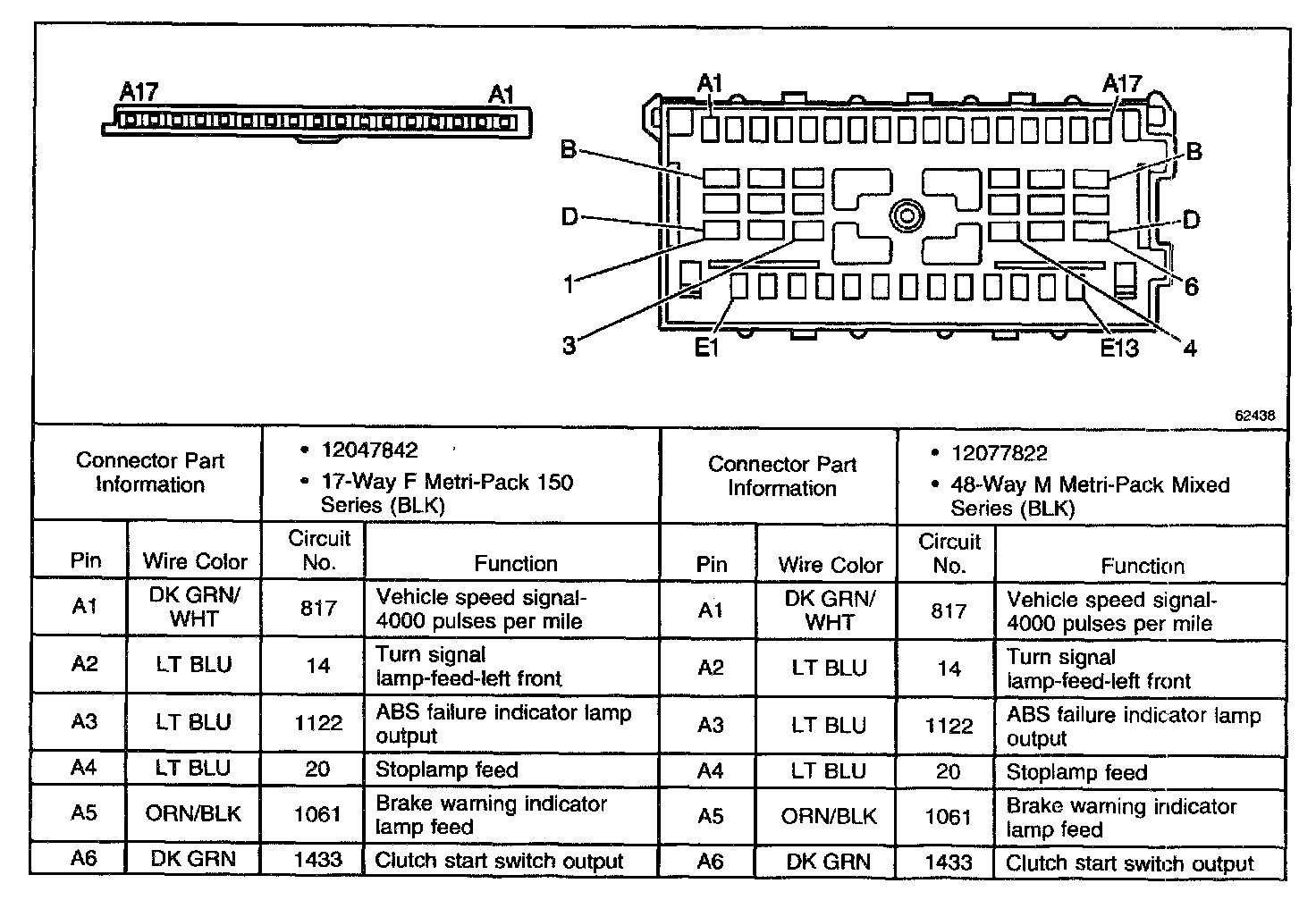

In-Line Connector C200A/C200D (Part 2 Of 2):
