C405A/C405B
C405A/C405B

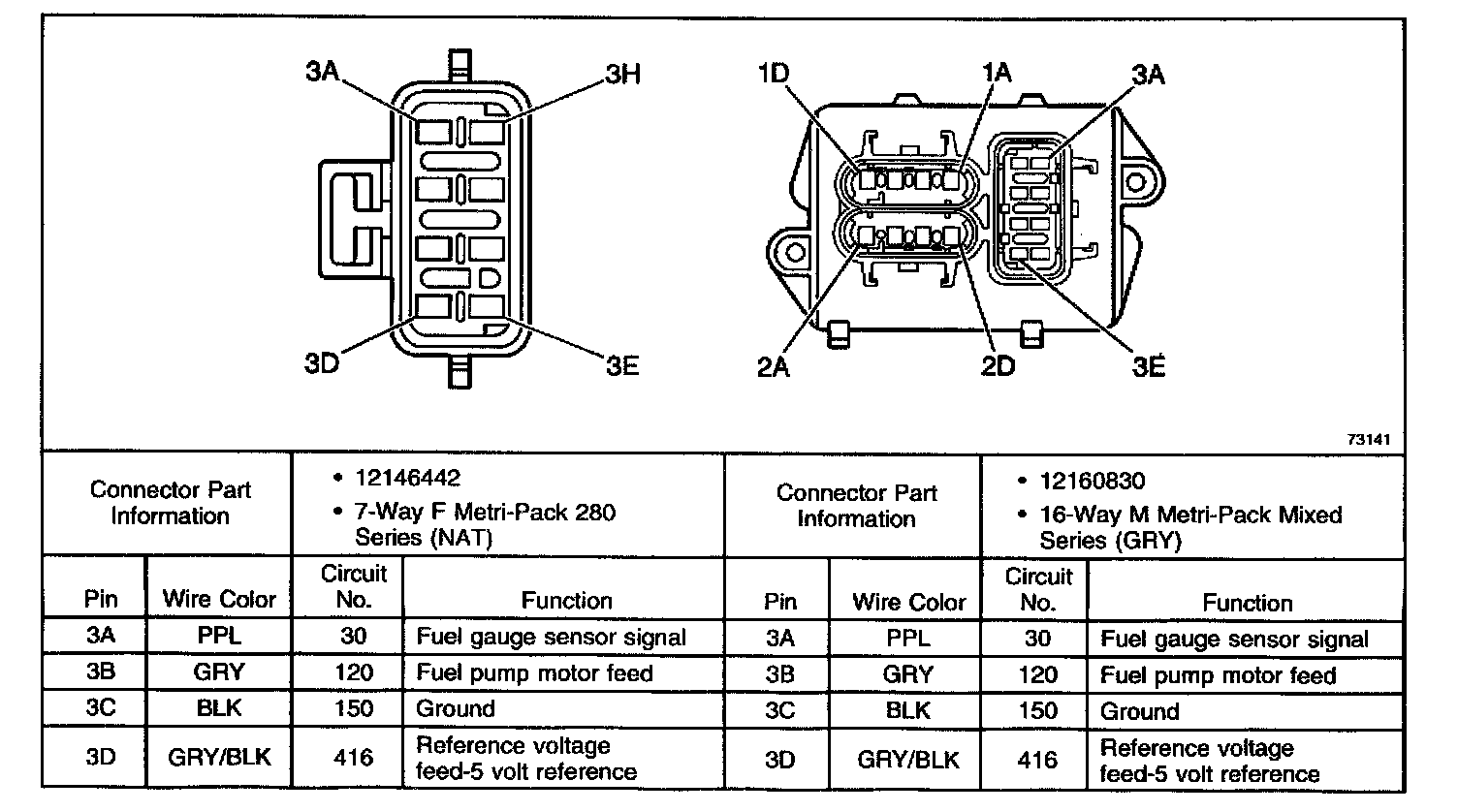

In-Line Connector C405A/C405B (Part 1 Of 2):
In-Line Connector C405A/C405B (Part 2 Of 2):
