Daytime Running Lamp Control Unit
>>

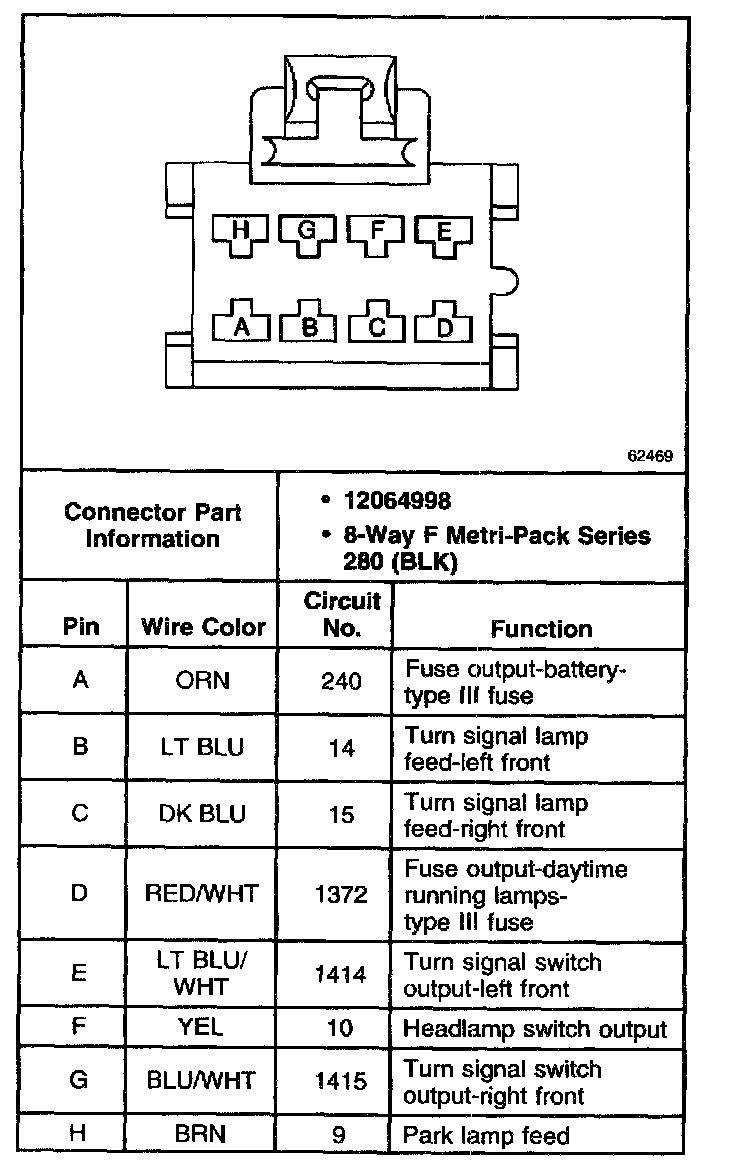

Daytime Running Lamps (DRL) Module C1
Daytime Running Lamps (DRL) Module C1
Daytime Running Lamps (DRL) Module C1:
