System Diagram

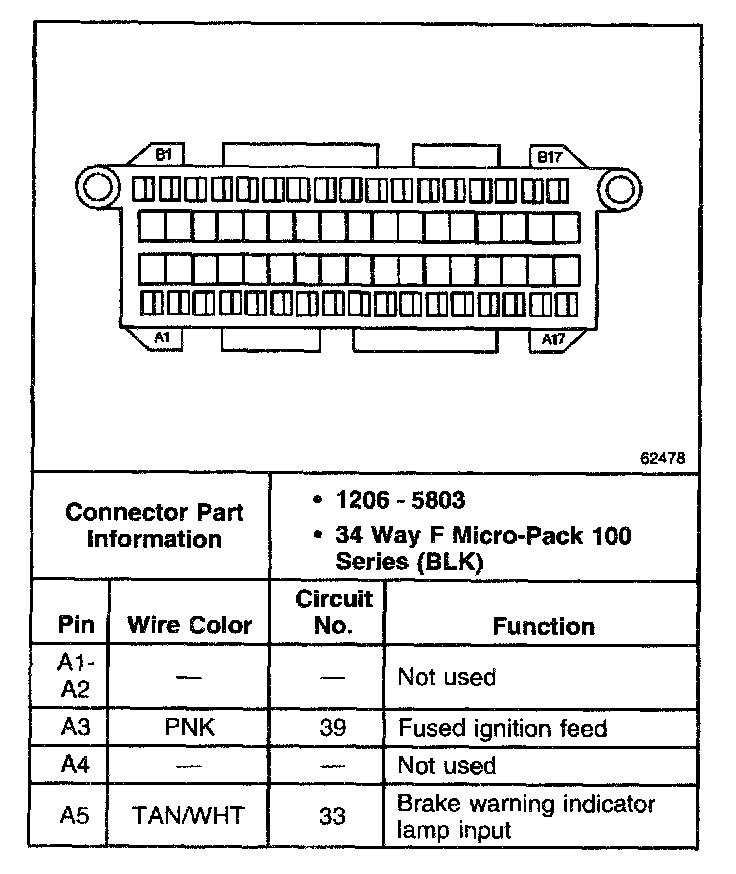

Instrument Cluster (Part 2 Of 3):



Instrument Cluster (Part 1 Of 3):



Instrument Cluster (Part 3 Of 3):
