Firebird V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>

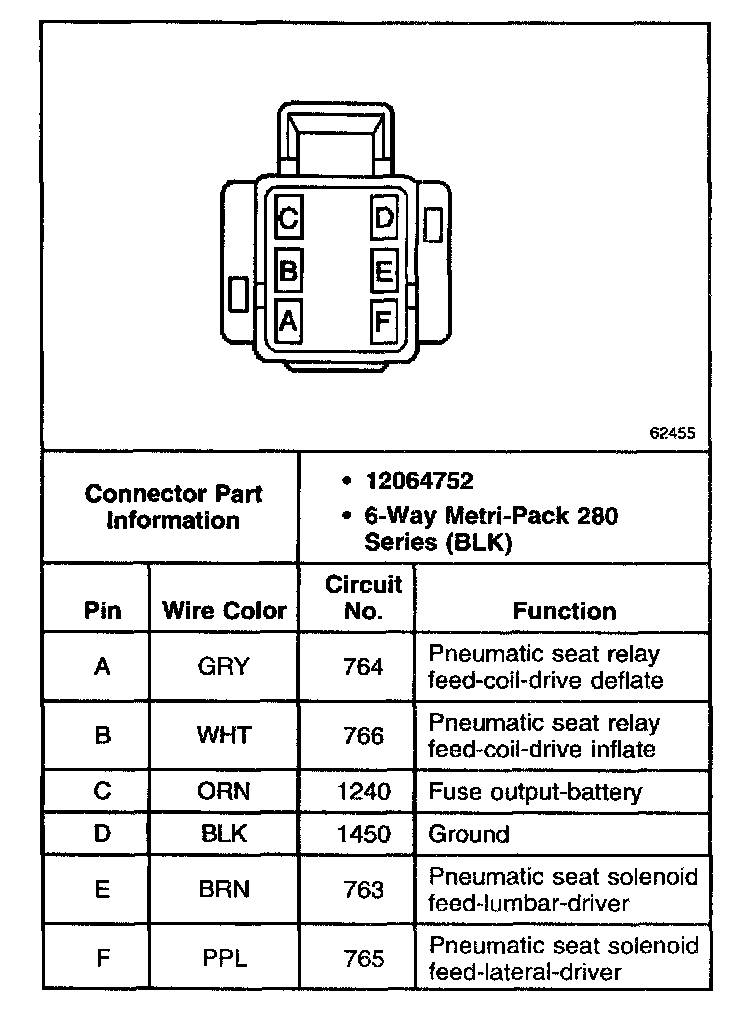

In-Line to Power Seat Switch (LH) C300
In-Line to Power Seat Switch (LH) C300
In-Line To Power Seat Switch (LH) C300:
