Pontiac
>>
1999
>>
Firebird V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>
In-Line to Power Seat Switch (RH) C305
In-Line to Power Seat Switch (RH) C305

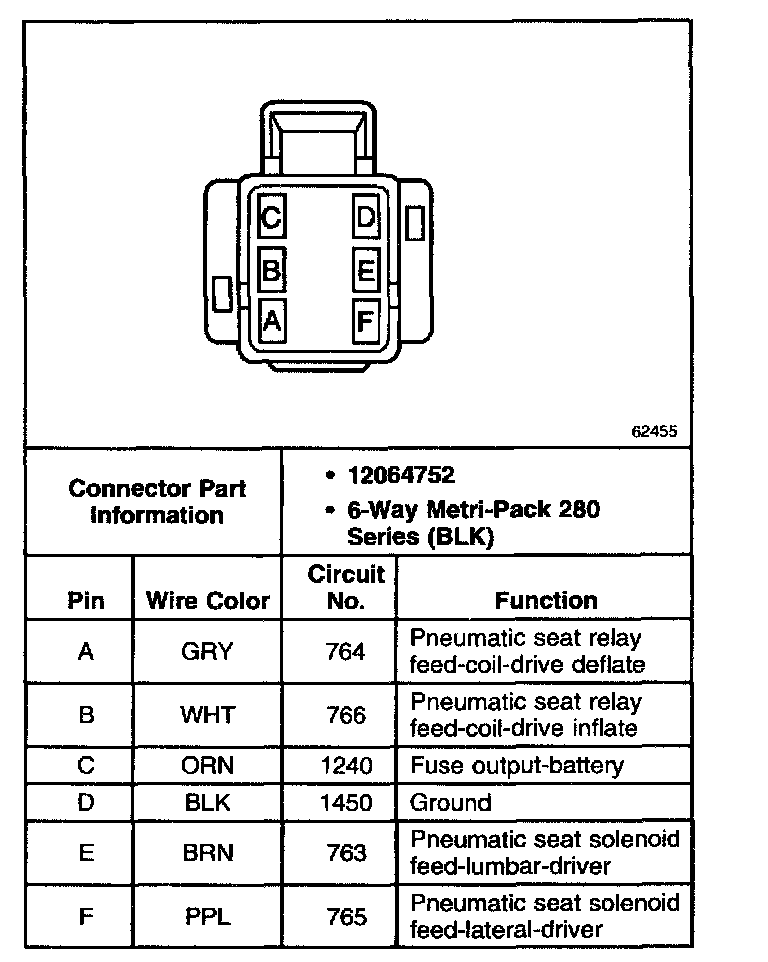

In-Line To Power Seat Switch (RH) C305:
