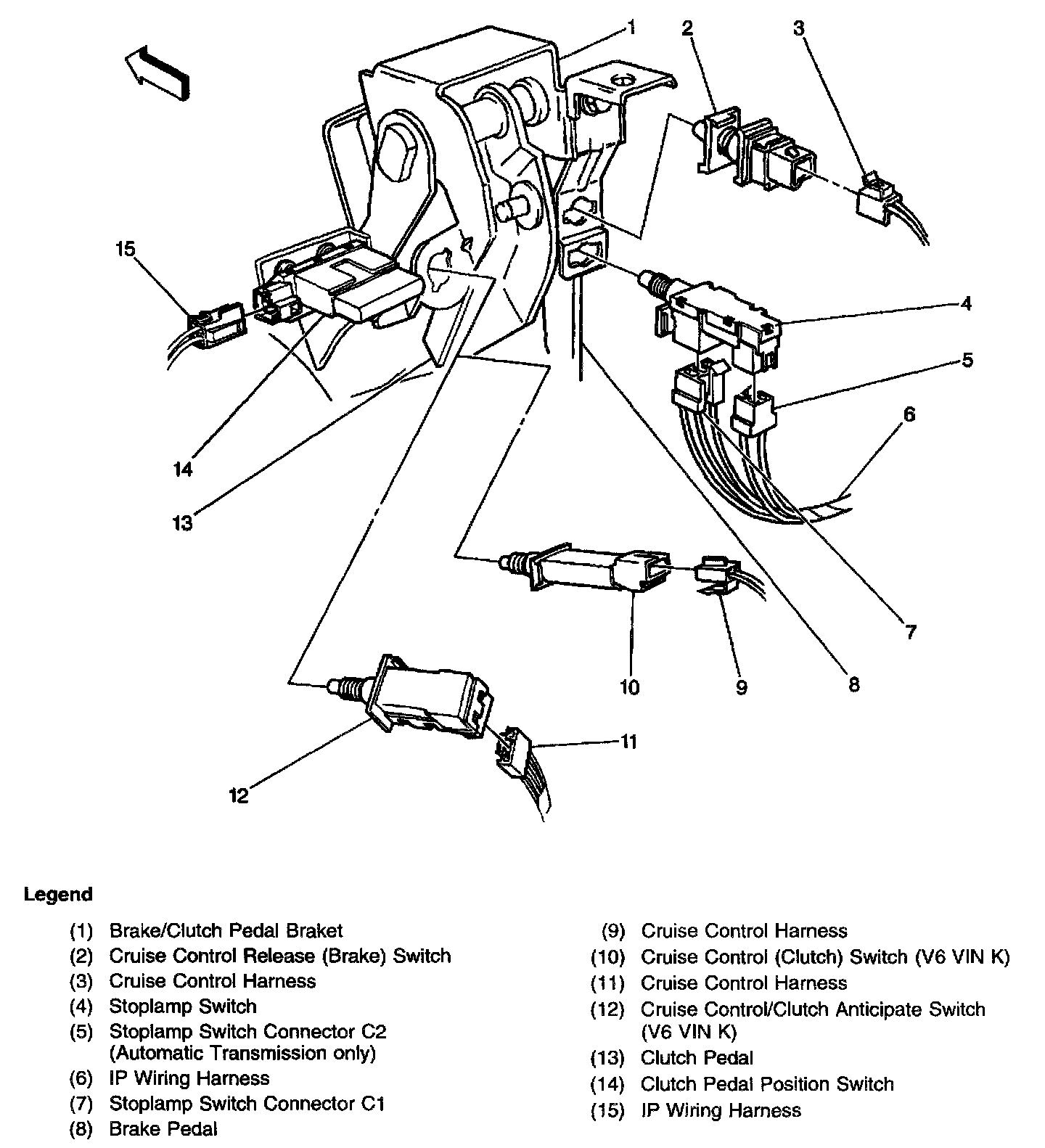

Stoplamp Switch Connector C2 (Automatic Transmission only)
Stoplamp Switch Connector C2 (Automatic Transmission only)
Under Left Side Of The Instrument Panel:
