Firebird V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Convertible Top
Convertible Top

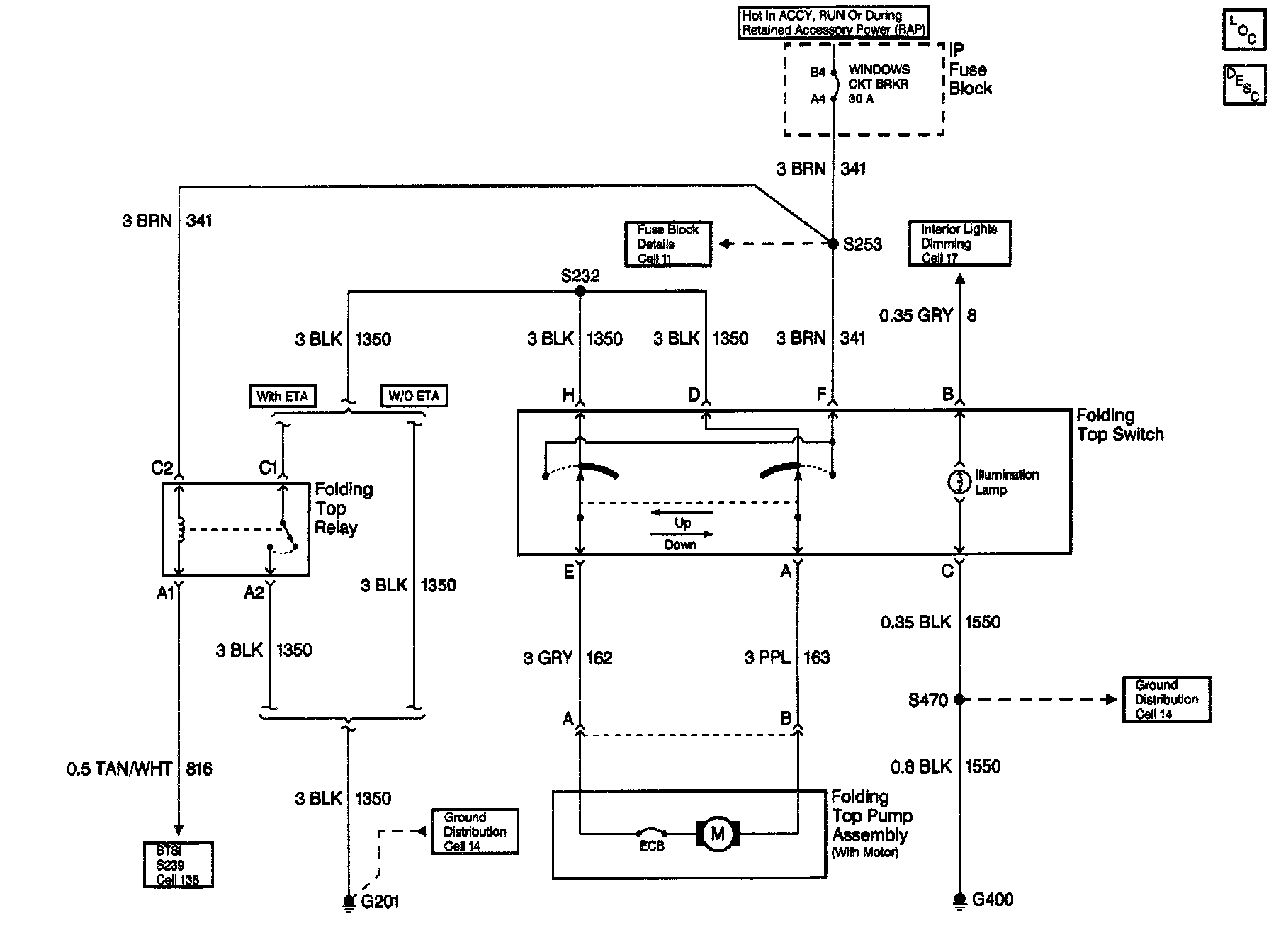

Power Folding Top Schematics:
