BCM and Rear Compartment Lid Release Components
BCM and Rear Compartment Lid Release Components

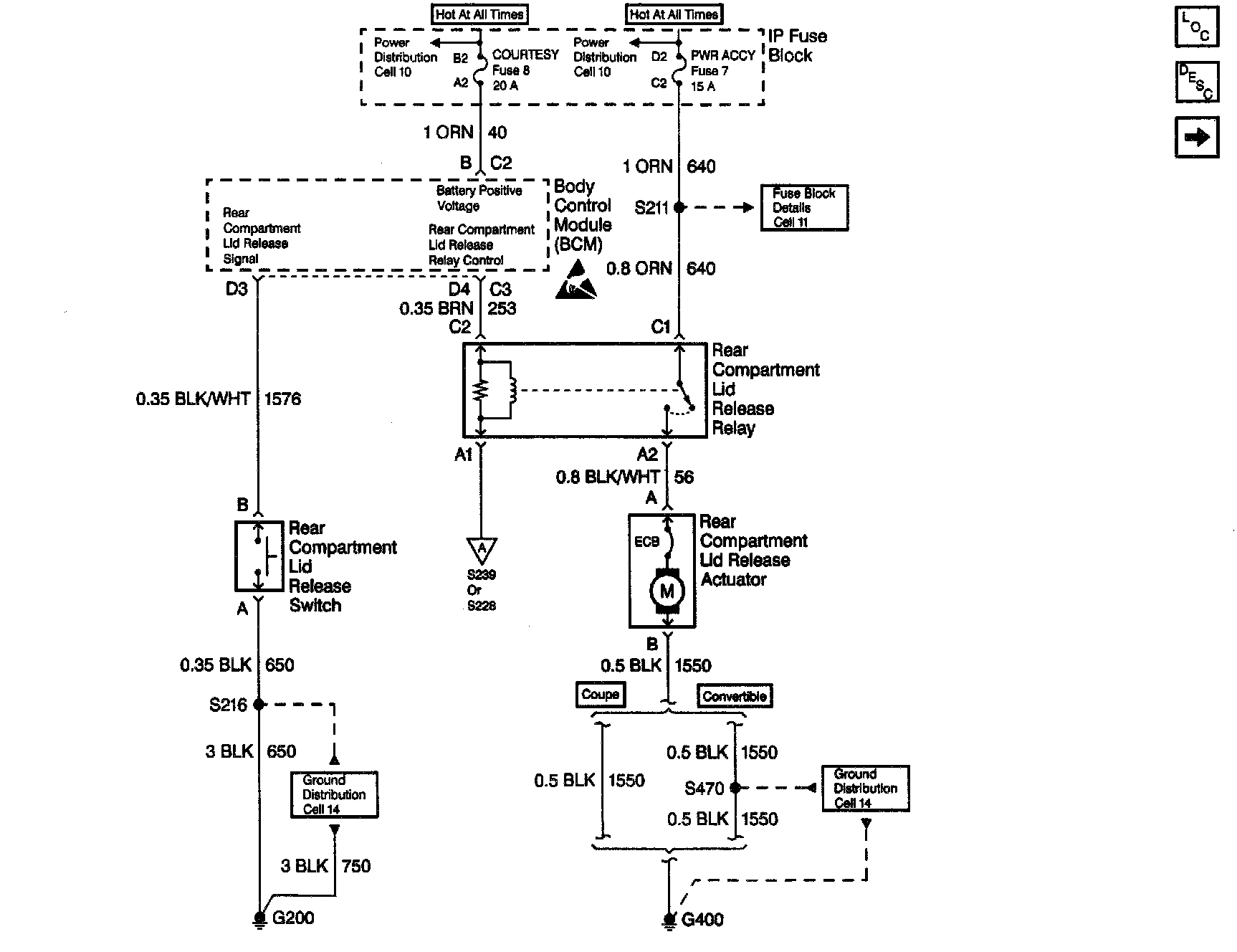

Release Systems Schematics: BCM And Rear Compartment Lid Release Components:
