87. Intake Manifold Installation - Upper

1. Install the upper intake manifold gasket.

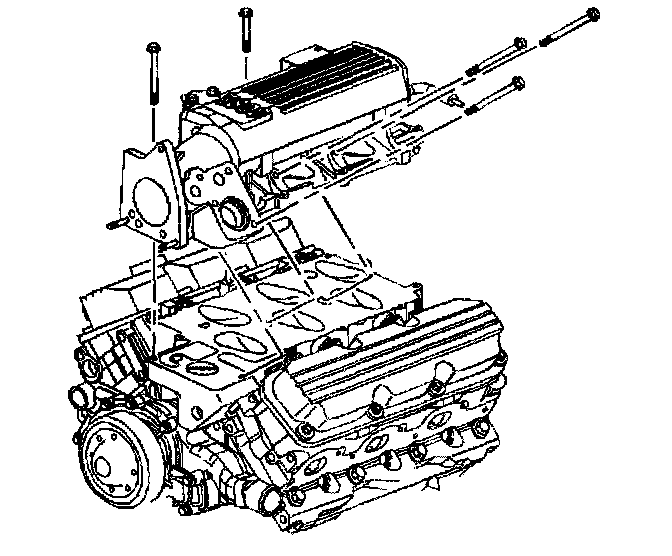

2. Install the upper intake manifold.
3. Install the water outlet.

Notice: Refer to Fastener Notice in Service Precautions.

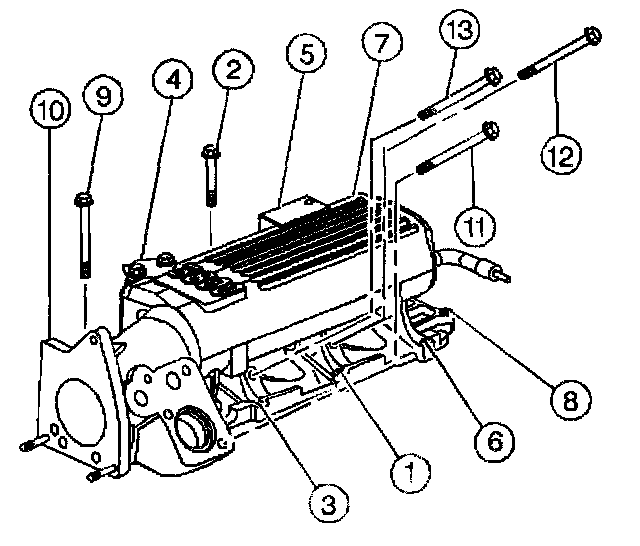

4. Install the upper intake manifold bolts.
^ Tighten the vertical bolts in sequence to 15 Nm (11 ft. lbs.).
^ Tighten the two water outlet bolts in sequence to 27 Nm (20 ft. lbs.).
^ Tighten the side bolts in sequence to 30 Nm (22 ft. lbs.).

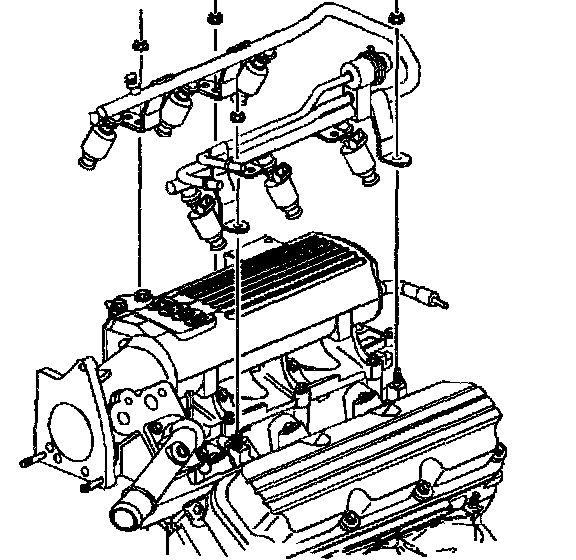

5. Install the fuel injector rail.
6. Install the fuel injector rail nuts.
^ Tighten the fuel injector rail nuts to 9 Nm (80 inch lbs.).

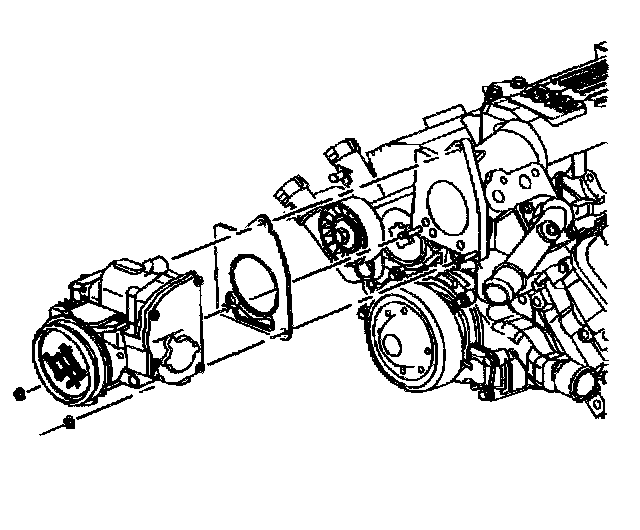

7. Install the throttle body gasket.
8. Install the throttle body.
9. Install the throttle body nuts and bolt.
^ Tighten the throttle body nuts and bolt to 10 Nm (89 inch lbs.).





10. Install the EGR outlet pipe to the intake manifold.
^ Tighten the EGR outlet pipe bolt and nut to 29 Nm (21 ft. lbs.).
11. Install the manifold vacuum source.
12. Install the rear generator mounting bracket and bolts.
^ Tighten the bolts to 50 Nm (37 ft. lbs.).
