Air Outlet Replacement - Side Window

Air Outlet Replacement - Side Window

REMOVAL PROCEDURE
1. Remove the I/P carrier.
2. Place the I/P carrier face down on a clean work surface.

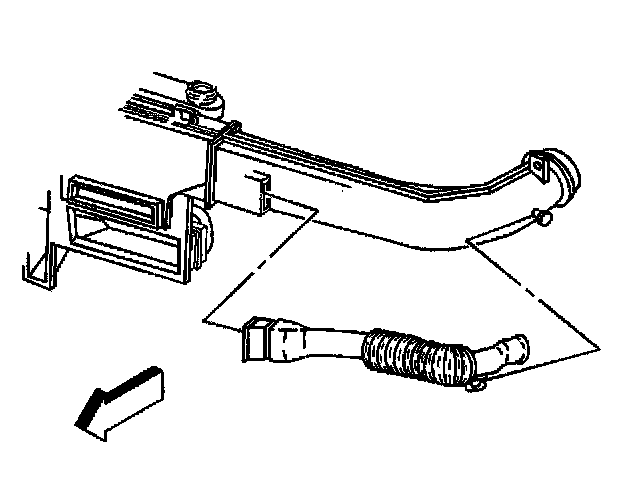

3. Unsnap the side window defogger outlet duct from the air distributor.

INSTALLATION PROCEDURE
1. Snap the side window defogger outlet duct to the air distributor.
2. Install the I/P carrier.
