Instrument Panel (IP) - Trim Pad Replacement - Upper

REMOVAL PROCEDURE



1. Remove the windshield side garnish moldings.
2. Gently lift the instrument panel (I/P) trim pad (2) to disengage the dual-lock fasteners (1).

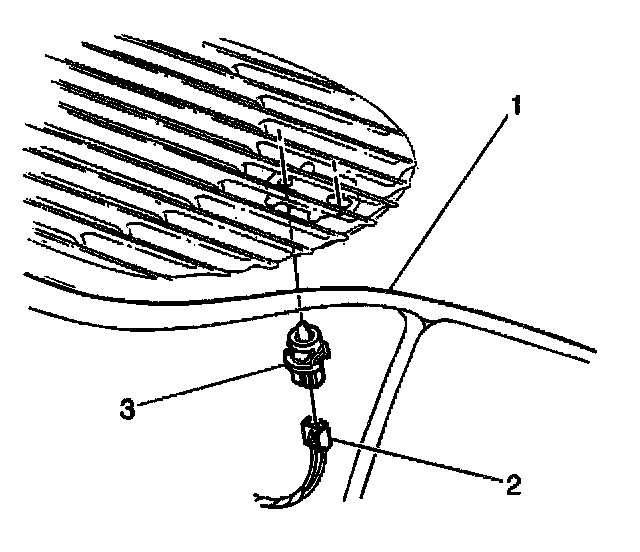

3. Remove the daytime running lamp ambient light sensor (1).




4. Remove the security indicator lamp (3).
5. Remove the I/P upper trim panel (1).

INSTALLATION PROCEDURE



1. Set the I/P trim pad (1) into place.
2. Install the security indicator lamp (3).




3. Install the daytime running lamp ambient light sensor (1).

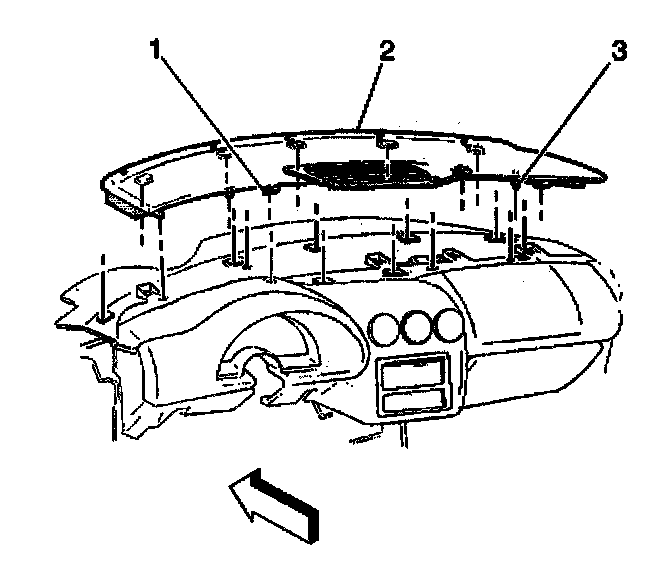

4. Using the locator pins (3), align the I/P upper trim panel (2).
5. Apply pressure to the rear of the I/P upper trim panel (2), engaging the dual lock fasteners (1).
6. Apply pressure to the front of the I/P upper trim panel (2), engaging the dual lock fasteners (1).
7. Install the windshield side garnish moldings.
