BCM and Headlamp Dimmer Switch

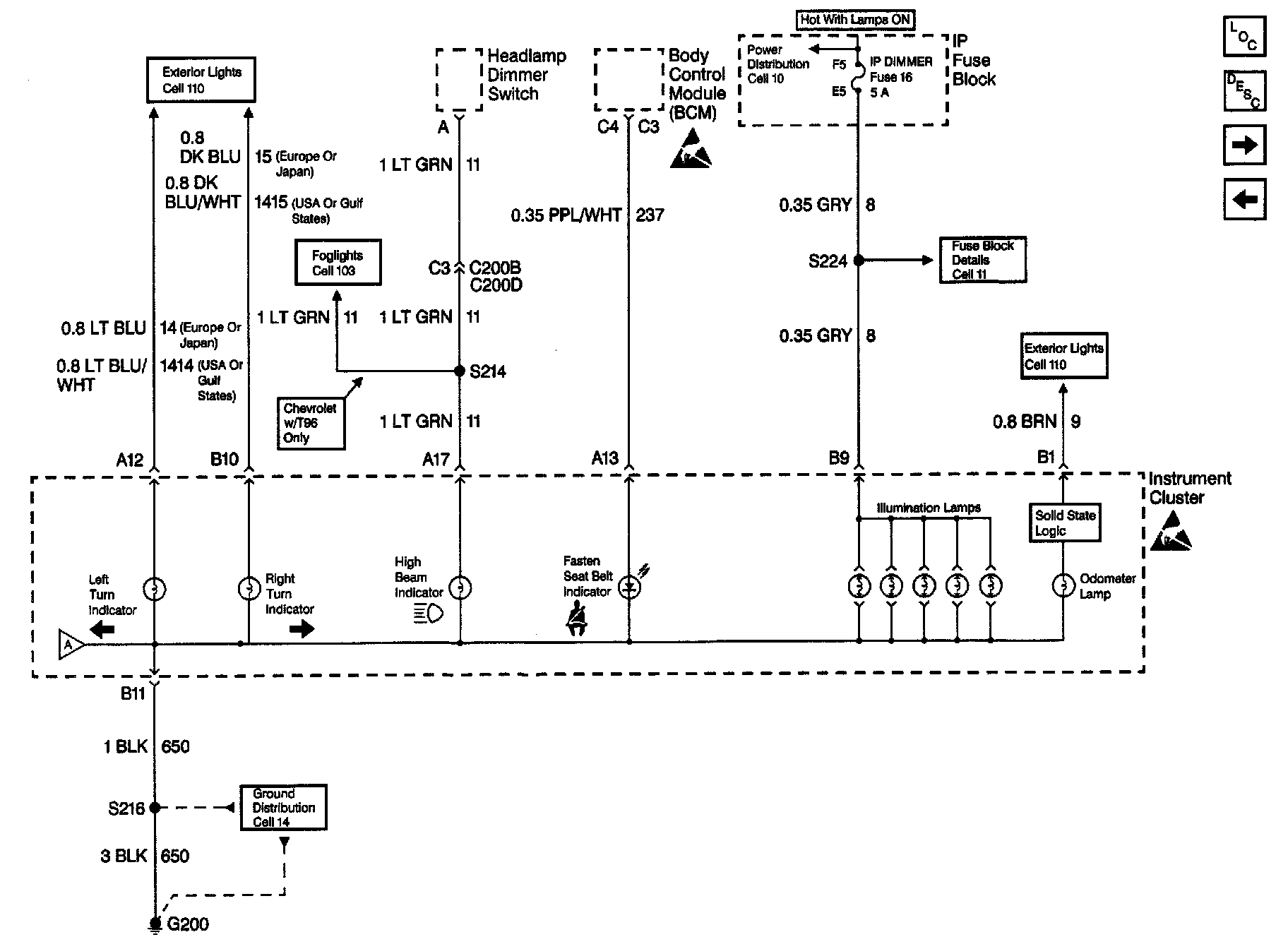

Instrument Cluster Analog Schematics: BCM And Headlamp Dimmer Switch:
