Fog Lamp Replacement - Front

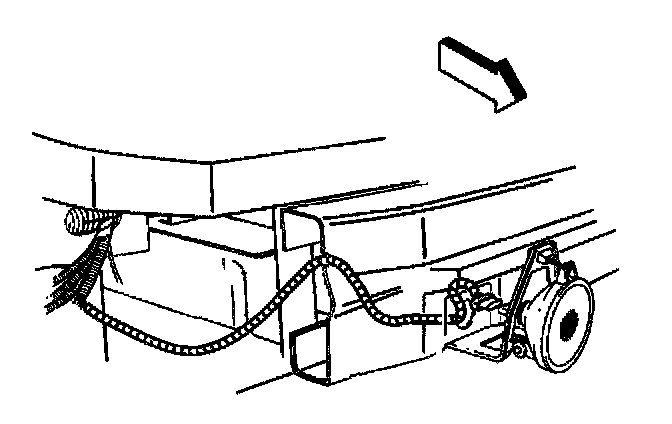

TRANS AMREMOVAL PROCEDURE
1. Raise and suitably support the vehicle.
2. Remove the push pin retainers that are located at the bottom center of the front fascia.
3. Disconnect the electrical connector from the fog lamp.
4. Remove the fog lamp bolts.
5. Remove the fog lamp and bracket.
INSTALLATION PROCEDURE
1. Install the fog lamp and bracket.
NOTE: Refer to Fastener Notice in Cautions and Notices.
2. Install the fog lamp bolts.
Tighten
Tighten the tog lamp bolt to 15 N.m (11 lb ft).
3. Connect the electrical connector to the fog lamp.
4. Install the push pin retainers at the bottom center of the front fascia.
5. Lower the vehicle.

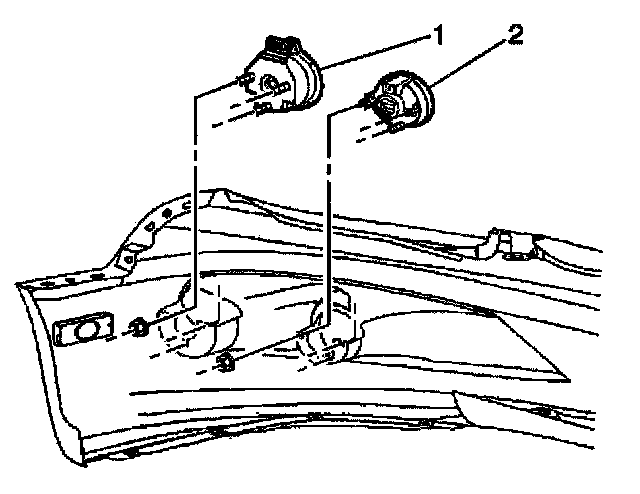

FIREBIRD/FORMULA
REMOVAL PROCEDURE
1. Raise and suitably support the vehicle.
2. Open the access door in the front bumper air deflector.
3. Disconnect the fog lamp electrical connector from the socket.
4. Remove the fog lamp nuts.
5. Remove the fog lamp (1).
INSTALLATION PROCEDURE
1. Install the fog lamp (1).
NOTE: Refer to Fastener Notice in Cautions and Notices.
2. Install the fog lamp nuts.
Tighten
Tighten the fog lamp (1) nuts to 8.0 N.m (71 lb in).
3. Connect the fog lamp electrical connector to the socket.
4. Close the access door in the front bumper air deflector.
5. Lower the vehicle.
