Horn: Service and Repair

REMOVAL PROCEDURE




CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
3. Remove the front bumper fascia air deflector.

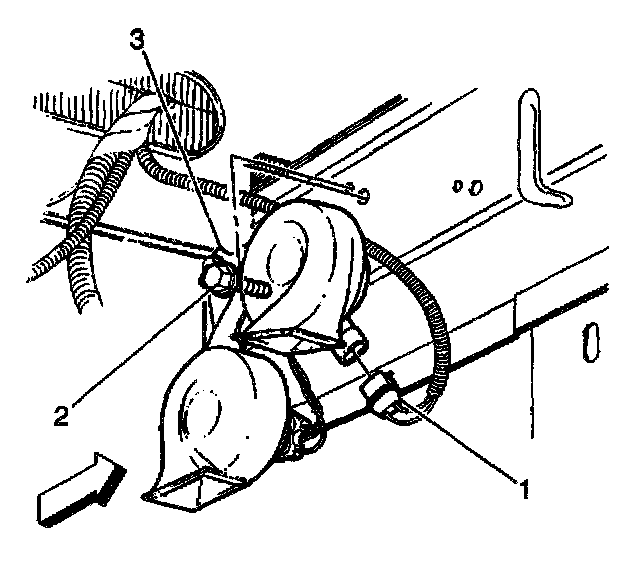

4. Remove the horn bolt (2).
5. Remove the horn (3) from the right engine compartment side outer rail.
6. Disconnect the electrical connector (1) from the horn (3).

INSTALLATION PROCEDURE



1. Connect the electrical connector (1) to the horn (3).
2. Install the horn (3) to the right engine compartment side outer rail.

NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Install the horn bolt (2).

Tighten
Tighten the horn bolt to 27 N.m (20 lb ft).

4. Install the front bumper fascia air deflector.
5. Lower the vehicle.




6. Connect the negative battery cable.
