Marker Lamp Replacement - Side

REMOVAL PROCEDURE



1. Remove the sidemarker lamp screw from the front fascia.

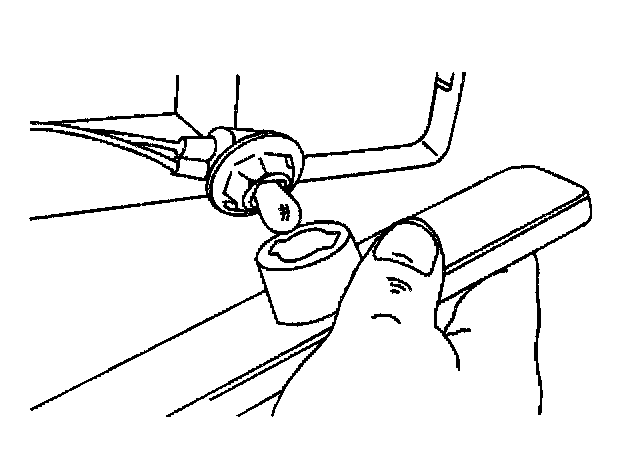

2. Disconnect the electrical connector from the sidemarker lamp.
3. Remove the side marker lamp.

INSTALLATION PROCEDURE



1. Connect the electrical connector and bulb to the sidemarker lamp.
2. Install the side marker lamp.





NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Install the sidemarker lamp screw to the front fascia.

Tighten
Tighten the sidemarker lamp screw to 1.4 N.m (12 lb in).
