Repeater Lamp Replacement (Export)

Repeater Lamp Replacement (Export)



REMOVAL PROCEDURE

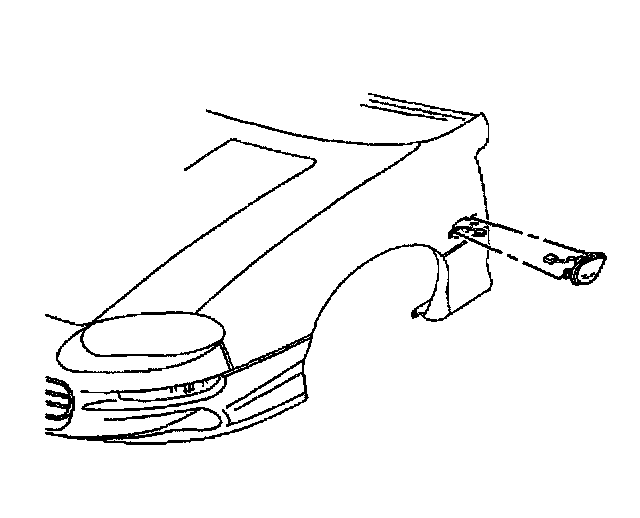

1. Unsnap the side repeater lamp from the fender, perform the following:
^ Insert a screwdriver into the repeater lamp slot to depress the retaining tab.
^ Pry up repeater lamp gently.
2. Disconnect the electrical connector from the repeater lamp.

INSTALLATION PROCEDURE
1. Connect the electrical connector to the repeater lamp.
2. Insert the repeater lamp into the slot in the fender.
3. Snap the repeater lamp into the fender.
