Enabling the SIR System

1. Remove the key from the ignition switch.

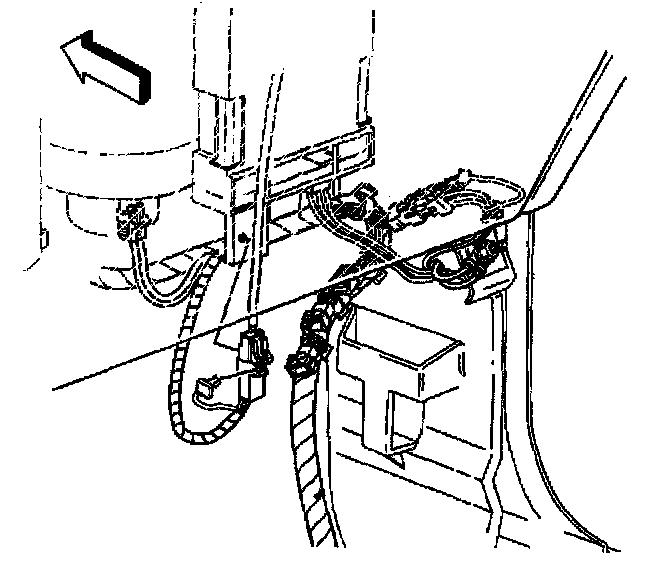

2. Connect the passenger yellow 2-way connector (C219) located behind the Instrument Panel (IP) compartment door.





3. Install the Connector Position Assurance (CPA) to the passenger yellow 2-way connector located behind the IP compartment door.





4. Install the right instrument panel insulator.

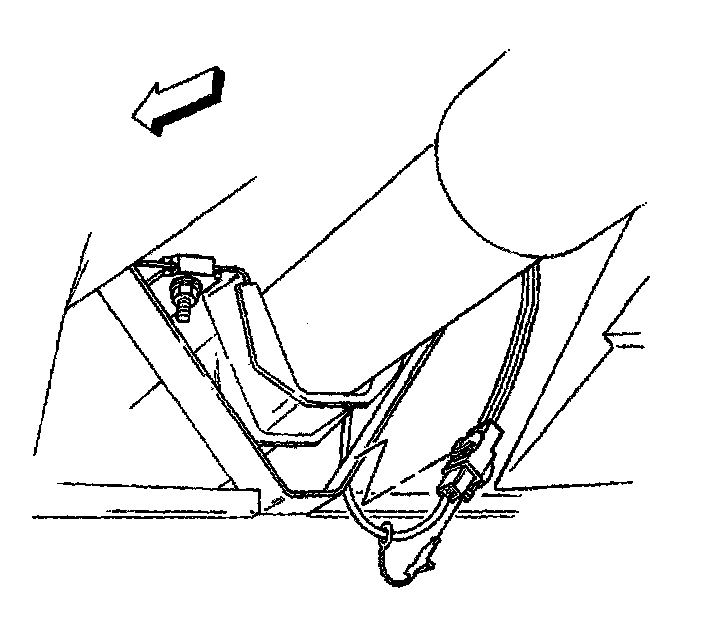

5. Connect the driver yellow 2-way connector (C218) located at the base of the steering column.

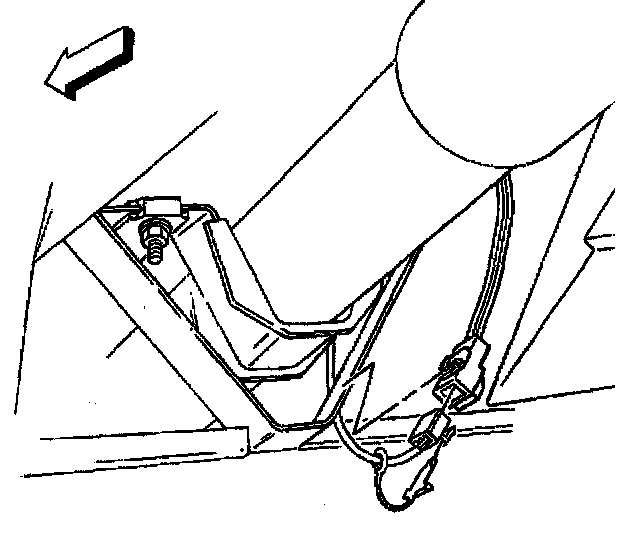

6. Install the Connector Position Assurance (CPA) to the driver yellow 2-way connector located at the base of the steering column.





7. Install the left instrument panel insulator.





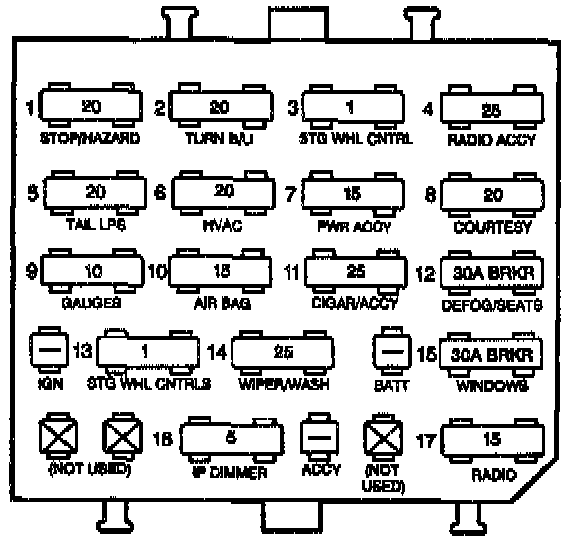

9. Install the IP fuse block access door.
10. Staying well away from both air bags, turn the ignition switch to the RUN position.
10.1. The AIR BAG warning lamp will flash seven times.
10.2. The AIR BAG warning lamp will then turn OFF.
11. Perform the SIR Diagnostic System Check if the AIR BAG warning lamp does not operate as described. Refer to SIR Diagnostic System Check
