Drive Belt: Service and Repair

Removal Procedure

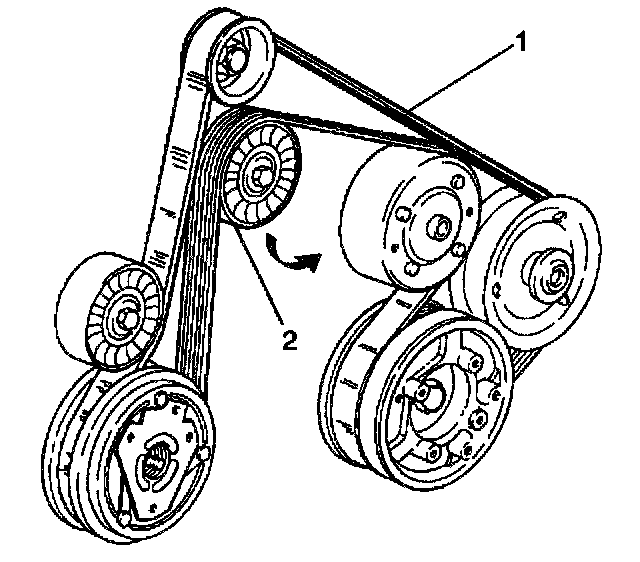

Caution: Refer to Battery Disconnect Caution in Service Precautions.





1. Disconnect the negative battery cable.
2. Position a hex-head socket on the belt tensioner pulley bolt.





3. Rotate the drive belt tensioner (2) clockwise to relieve the tension on the drive belt (1).
4. Remove the drive belt (1) from the tensioner (2) and pulleys.
5. Clean and inspect the belt surfaces of all the pulleys.

Installation Procedure

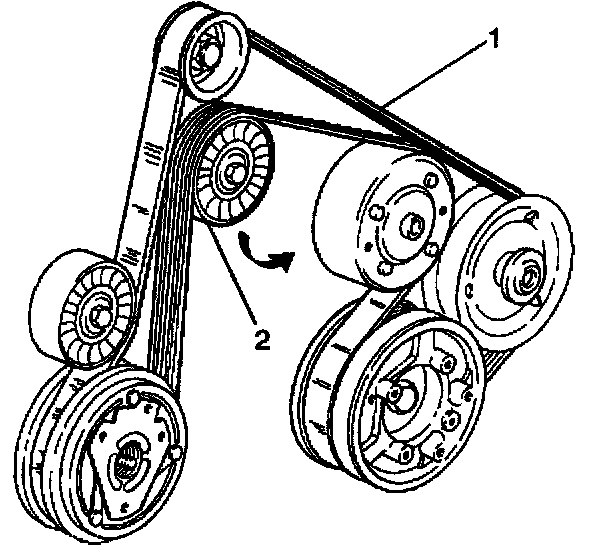

1. Route the drive belt (1) around the pulleys.
2. Position a hex-head socket on the belt tensioner pulley bolt.
3. Rotate the drive belt tensioner (2) clockwise to relieve the tension.
4. Install the drive belt (1) onto the drive belt tensioner (2).
5. Inspect the drive belt (1) to ensure that the belt is properly aligned into the grooves of the pulleys.





6. Connect the negative battery cable.
