Powertrain Controls

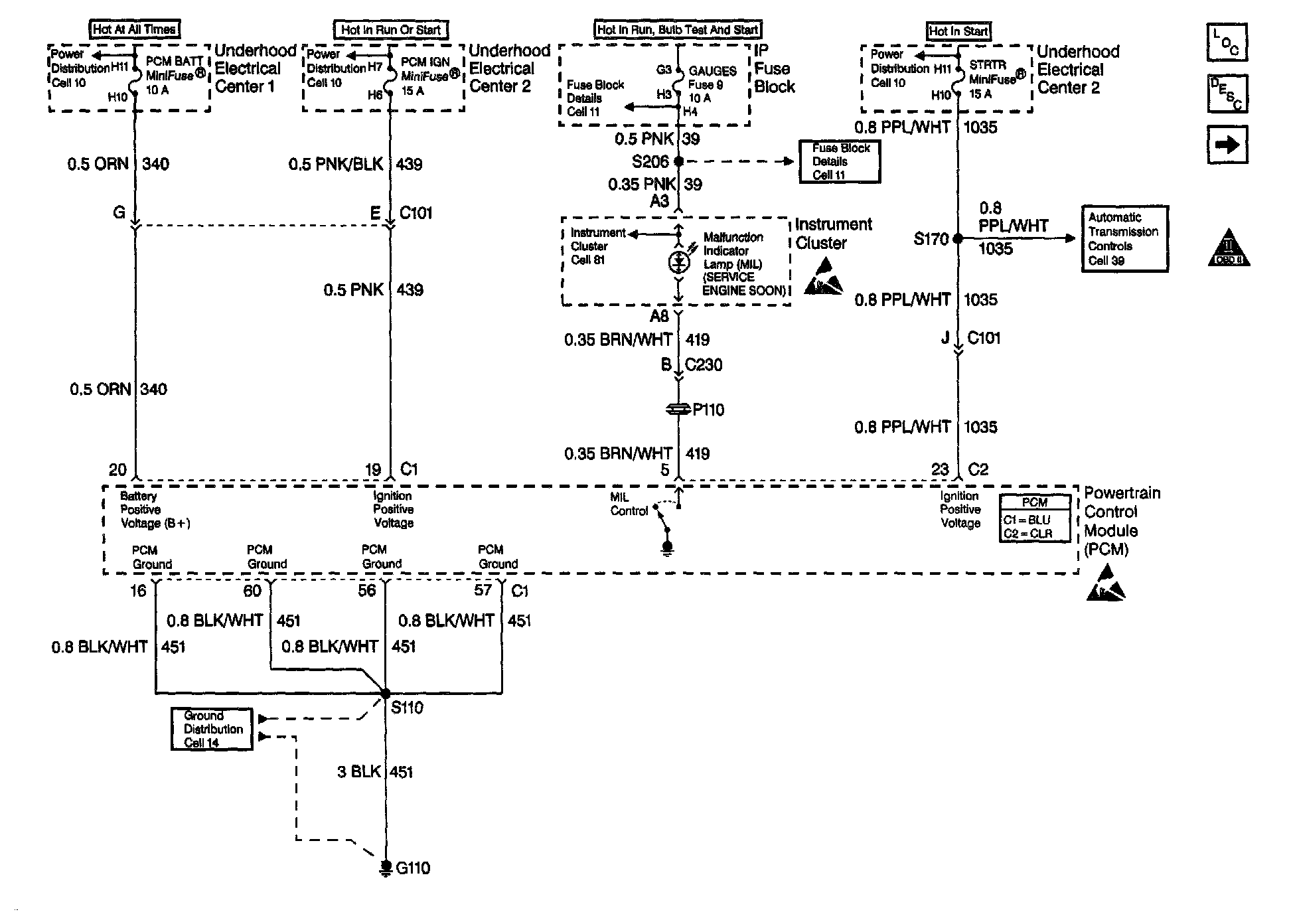

Power, Ground and MIL




Power, Ground and MIL




Ignition Control, Knock Sensors




Fuel Pump Controls




Fuel Injectors

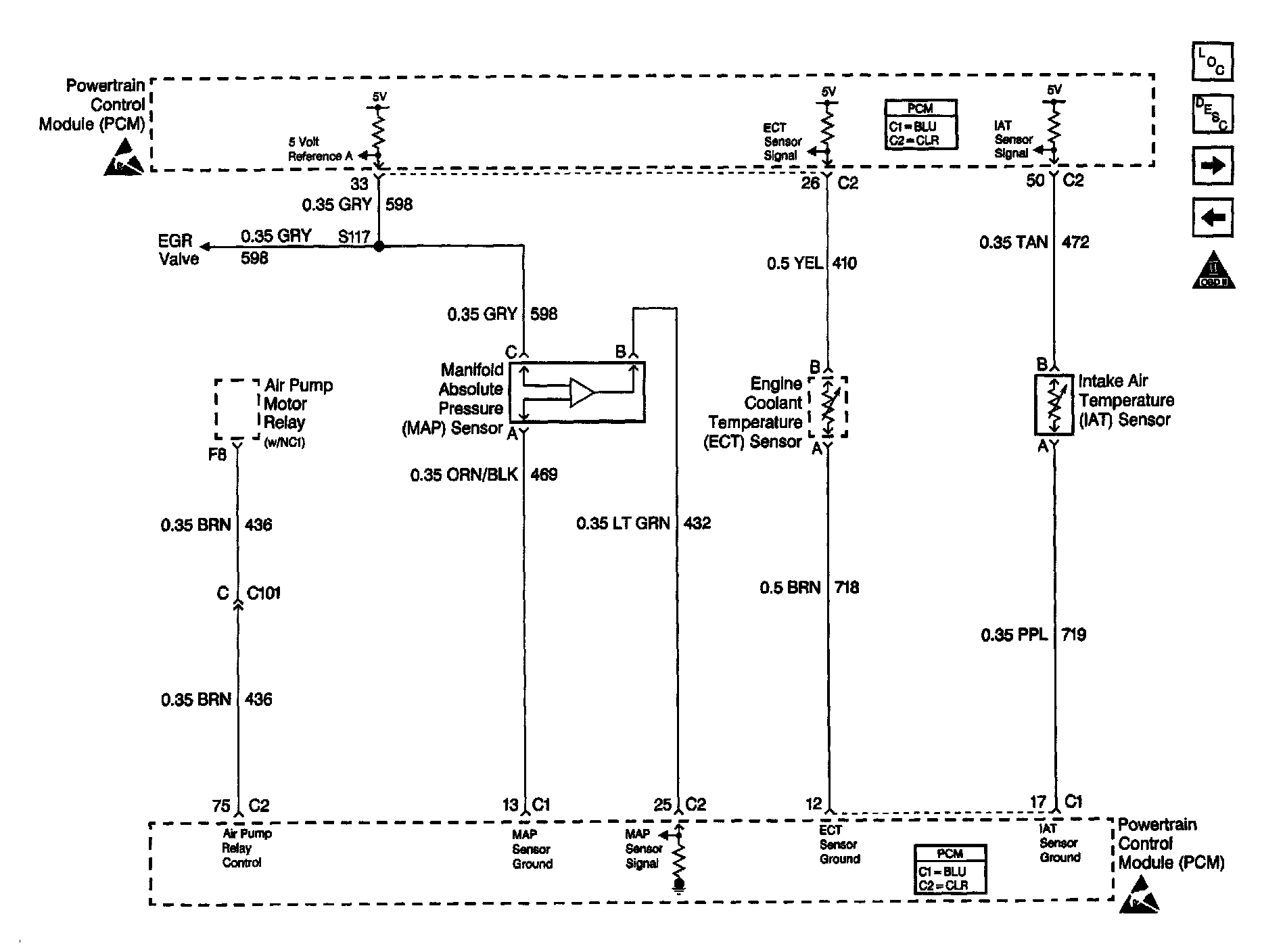

TP, MAP, ECT, IAT Sensors




HO2 Sensors

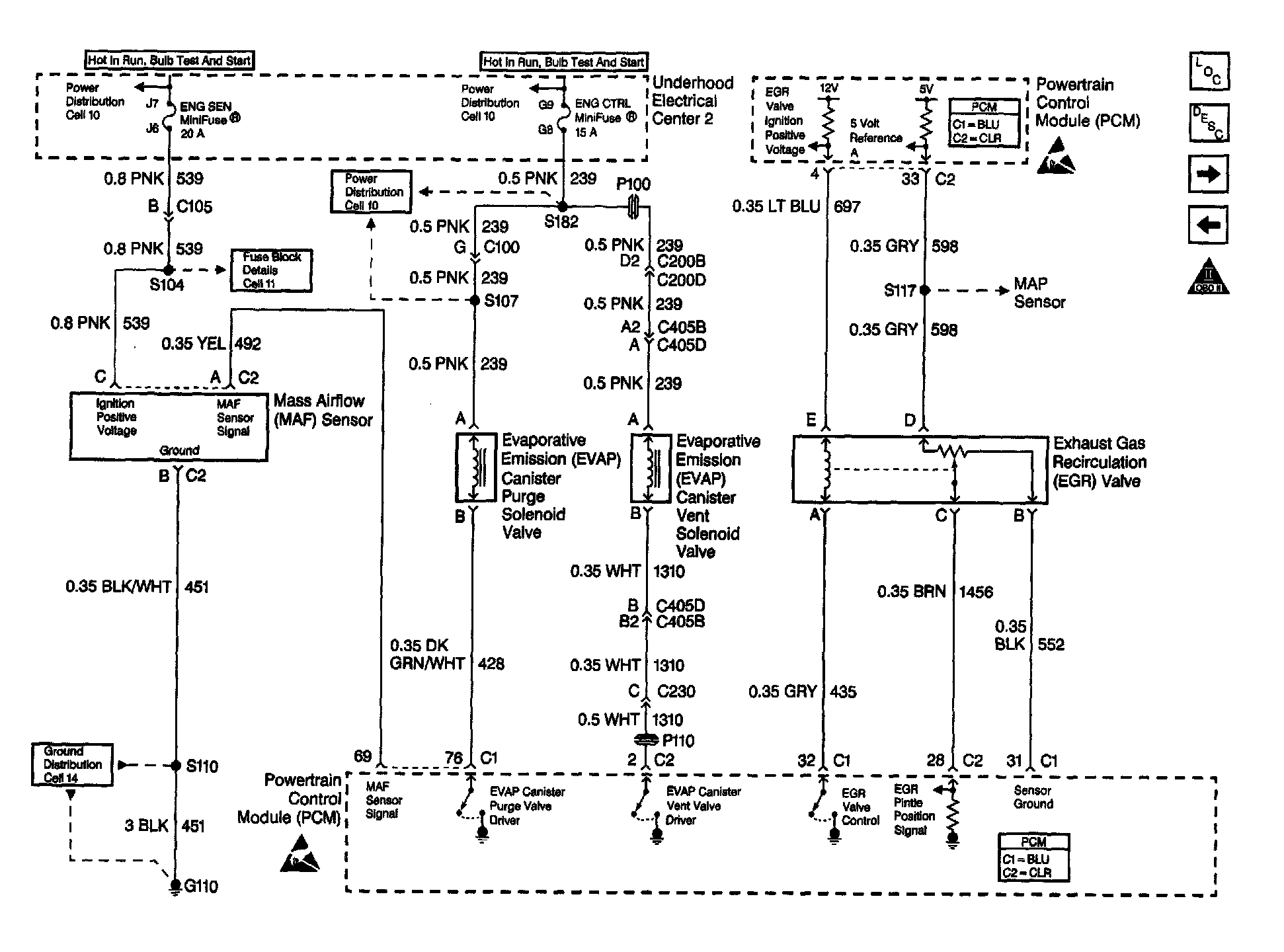

MAF Sensor EVAP System, EGR Valve




Generator Control, IAC and Check Gauges Lamp

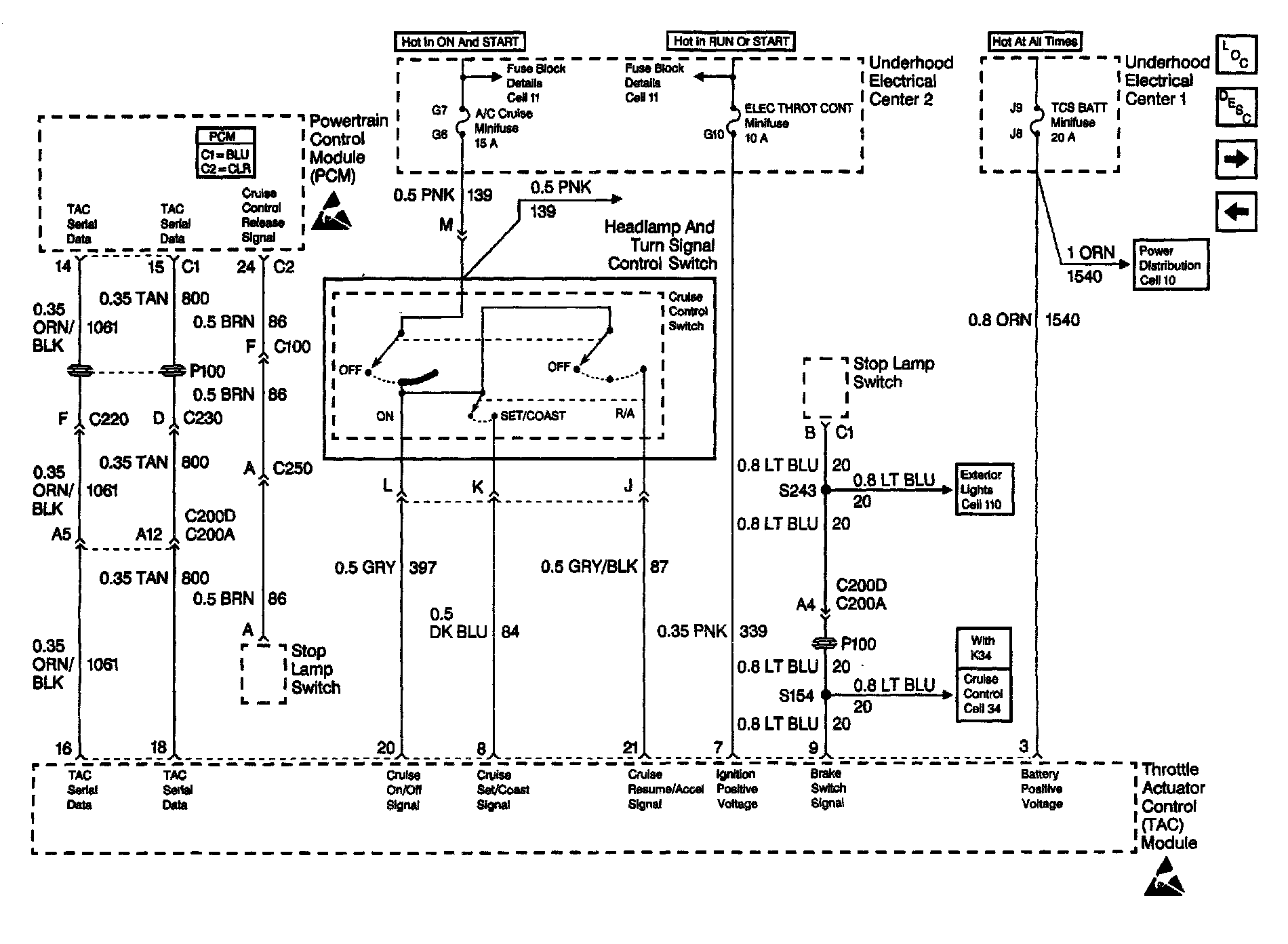

Cruise Control Switch and Power for TAC Module

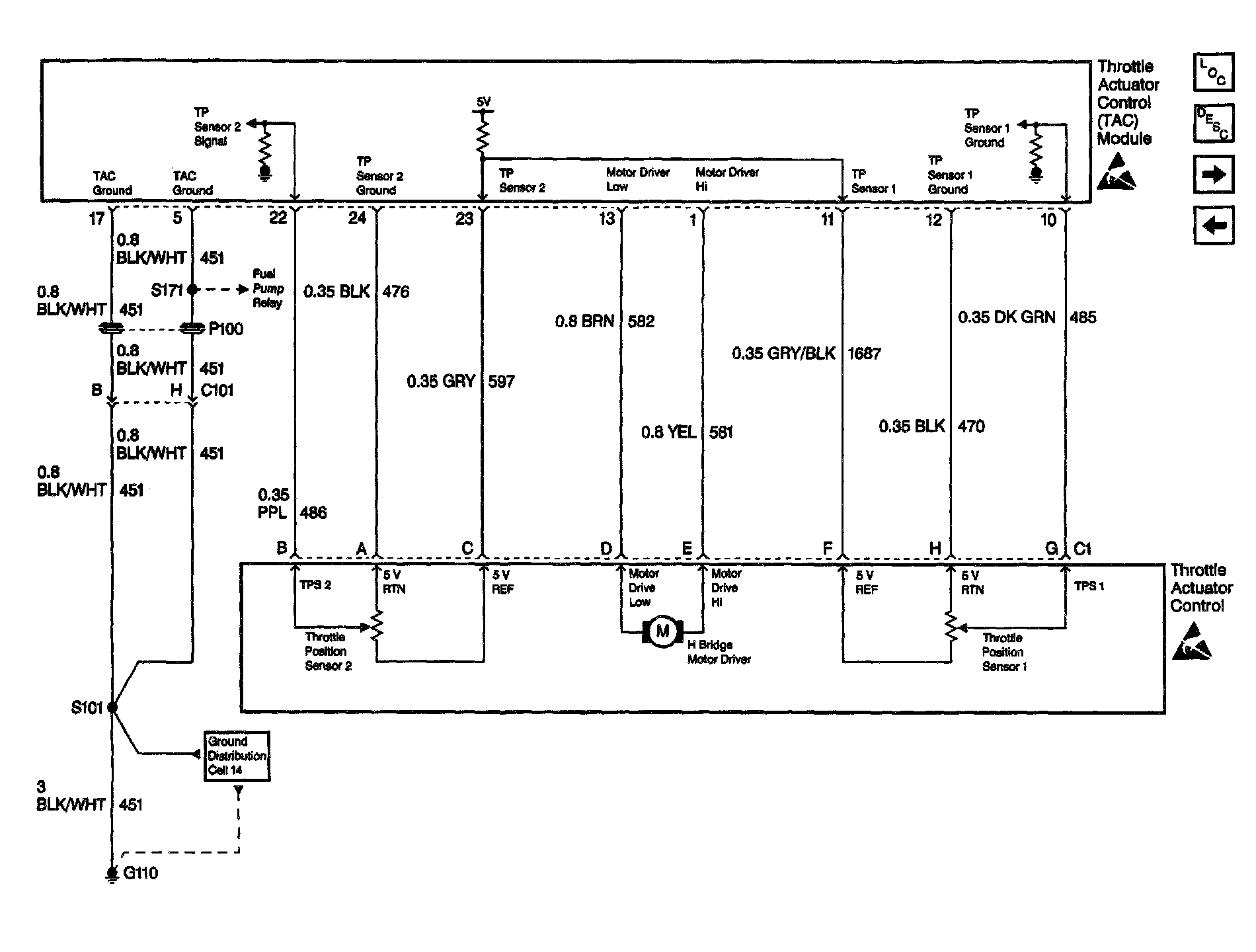

Ground for TAC Module




2nd Gear, Clutch Anticipate Switch




Brake Switch, TCC Solenoid




Trans Range

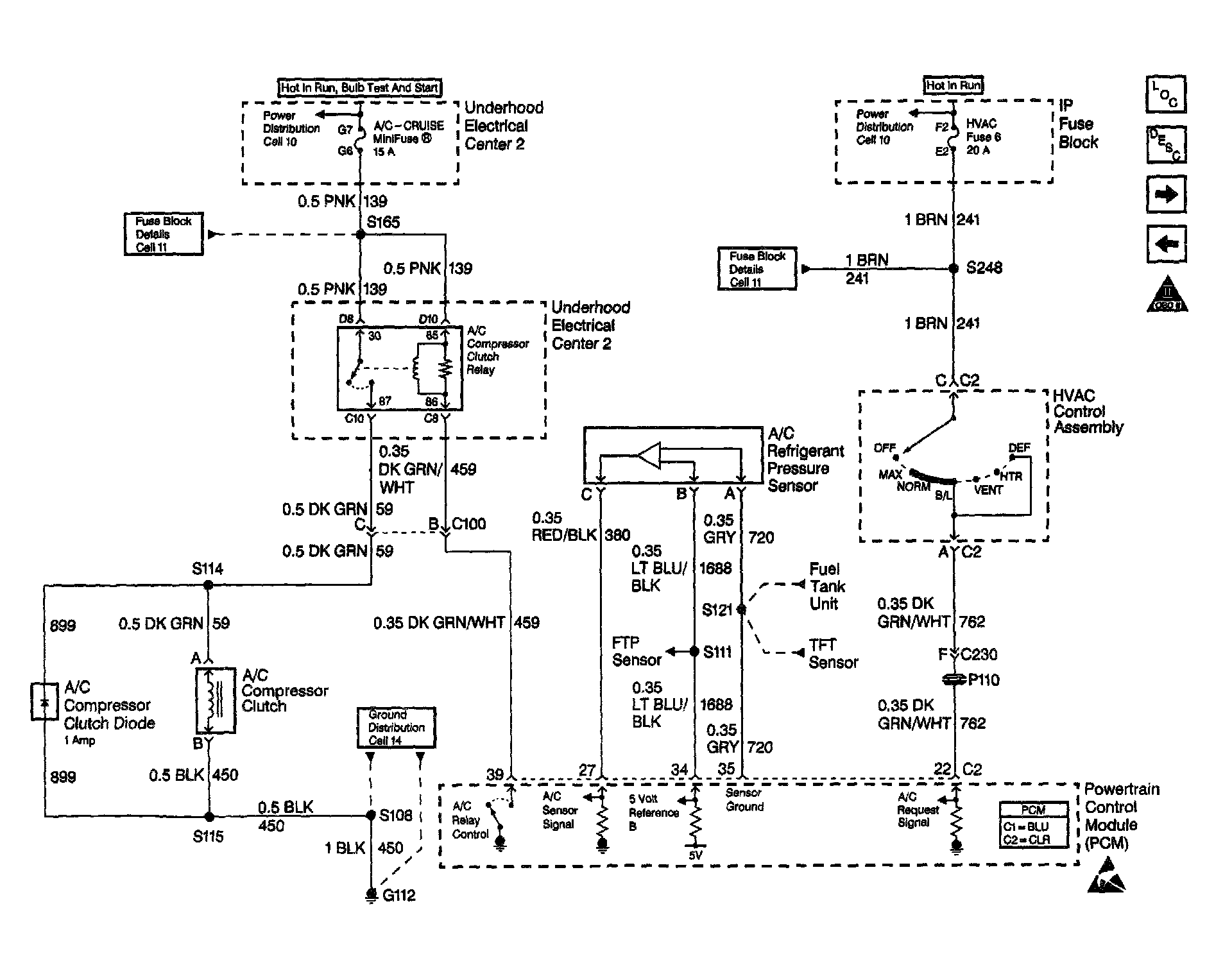

A/C HVAC Control

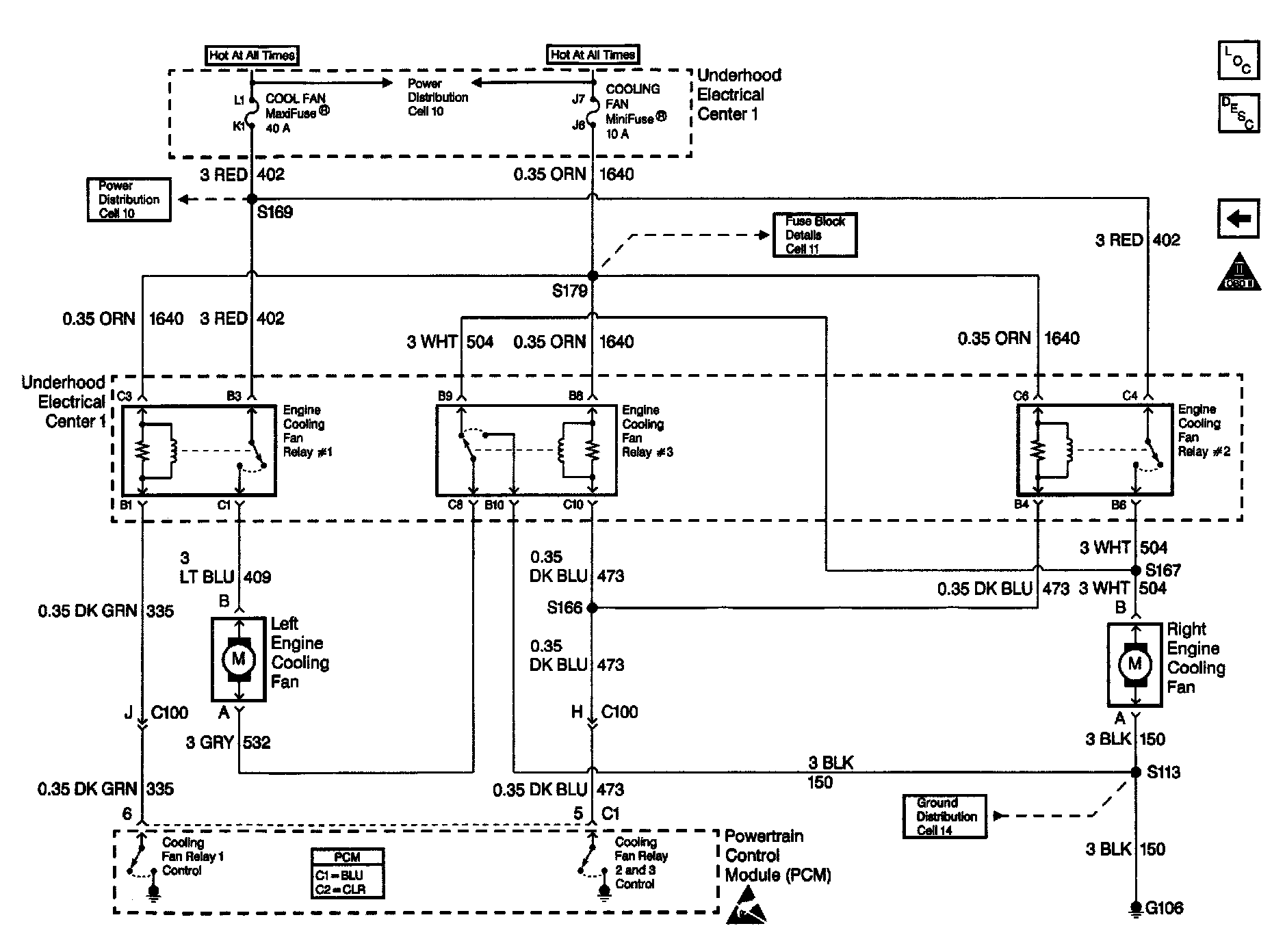

Cooling Fans
