Flywheel: Service and Repair

Removal Procedure

^ Tools Required
- J 37096 Flywheel Holding Tool

1. If equipped with a manual transmission remove the clutch pressure plate and driven disc.
2. Remove the automatic transmission, if equipped.

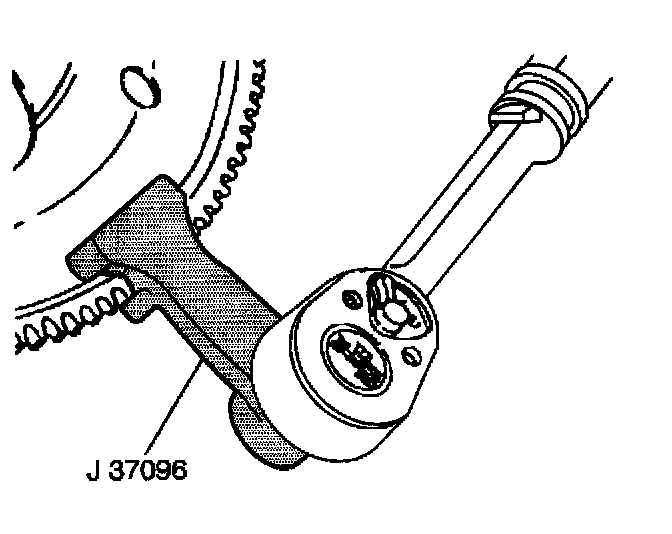

3. Use the J 37096 to hold the flywheel to loosen the flywheel bolts.





4. If equipped with the manual transmission, remove the following components:

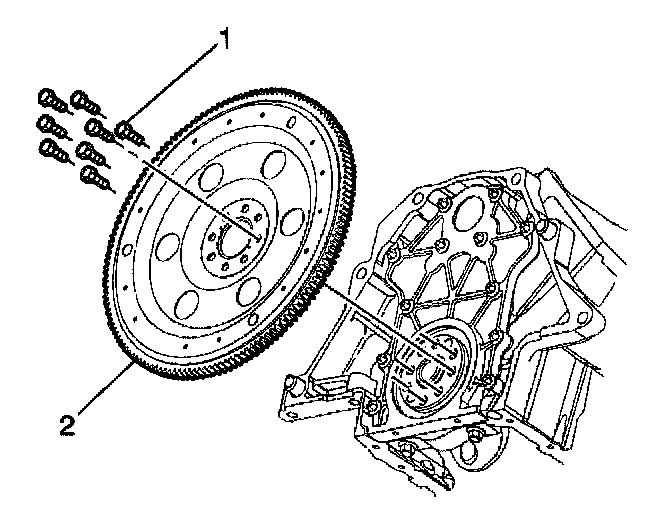

4.1. Remove the flywheel bolts (1).
4.2. Remove the flywheel (2).





5. If equipped with the automatic transmission, remove the following components:
5.1. Remove the flywheel bolts (1).
5.2. Remove the flywheel (2).

Installation Procedure

^ Tools Required
- J 36660 Torque Angle Meter
- J 37096 Flywheel Holding Tool





1. If equipped with the automatic transmission, install the following components:
1.1. Install the flywheel (2).
1.2. Install the flywheel bolts (1) finger tight.





2. If equipped with the manual transmission, install the following components:
2.1. Install the flywheel (2).
2.2. Install the flywheel bolts (1) finger tight.





3. Use the J 37096 to hold the flywheel when tightening the flywheel bolts.

Notice: Refer to Fastener Notice in Service Precautions.

4. Tighten the flywheel bolts.
^ Tighten the flywheel bolts to 15 Nm (11 ft. lbs.). Use the J 36660 to torque the flywheel bolts an additional 50 degrees.
5. Install the automatic transmission, if equipped.
6. If equipped with a manual transmission install the clutch pressure plate and driven disc.
