Steering Wheel Control Switches

REMOVAL PROCEDURE



1. Remove the inflatable restraint steering wheel module.

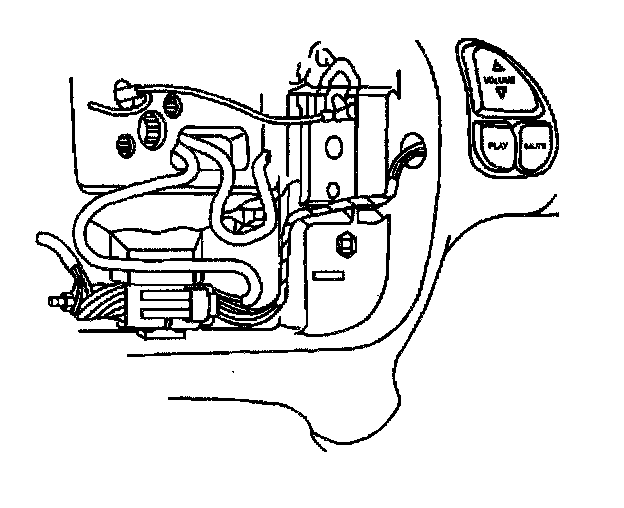

2. Remove the redundant radio control connector from the steering wheel retainer.




3. Disconnect the redundant radio control electrical connector.




4. Pry out the radio control switch at the lower edge.

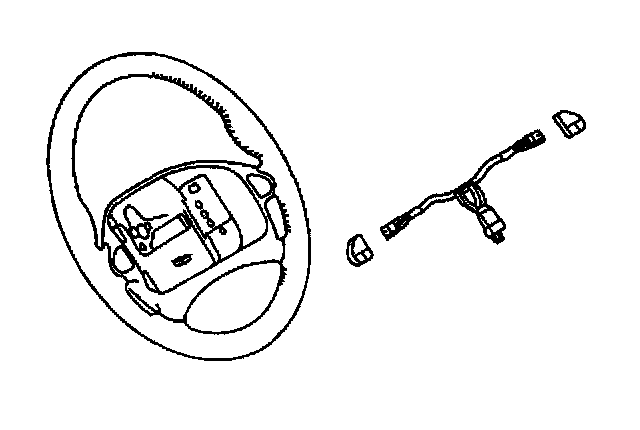

5. Remove the radio control switch from the steering wheel.
Remove the wire harness connector from the control(s).

INSTALLATION PROCEDURE



1. Install the wire harness connector to the control(s).
2. Install the radio control switch to the steering wheel.
Press the radio control switch in at the lower edge.




3. Connect the redundant radio control electrical connector.




4. Install the redundant radio control connector to the steering wheel retainer.
5. Install the inflatable restraint steering wheel module.
