Cruise Control Module: Service and Repair

REMOVAL PROCEDURE




CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Raise and suitably support the vehicle.
3. Remove the left front bumper fascia lower deflector.




4. Remove the cruise control module cover.
5. Disconnect the electrical connector from the cruise control module.




6. Disconnect the cruise control cable connector from the brake pipe clip.
7. Disconnect the cruise control cable from the cruise control module. Refer to Cruise Control Cable Replacement (5.7L). Service and Repair

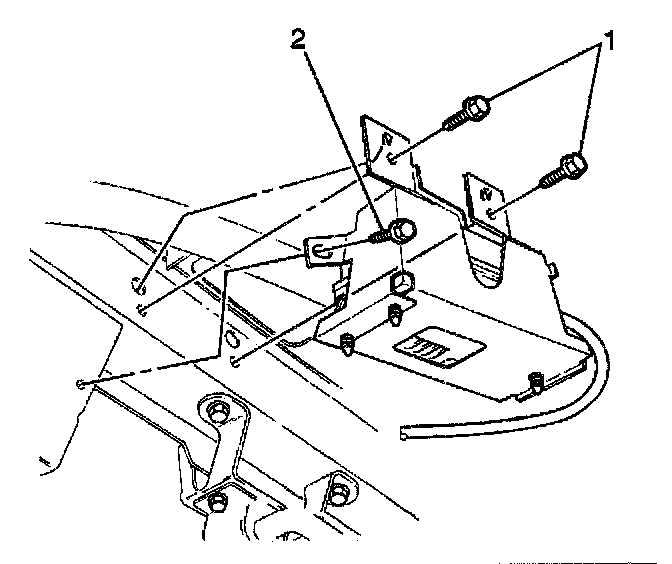

8. Remove the cruise control module bracket bolts (1 and 2).
9. Remove the cruise control module and bracket from the left side engine compartment inner rail.




10. Remove the cruise control module to bracket bolts.
11. Remove the cruise control module from the bracket.

INSTALLATION PROCEDURE



1. Connect the cruise control module to the bracket.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the cruise control module to bracket bolts.

Tighten
Tighten the cruise control module to bracket bolts to 4.5 N.m (40 lb in).




3. Install the cruise control module and bracket to the left engine compartment inner rail.
4. Install the cruise control module bracket bolts.

Tighten
^ Tighten the cruise control module bracket bolts (1) to 10 N.m (89 lb in).
^ Tighten the cruise control module bracket bolt (2) to 2.0 N.m (18 lb in).

5. Connect the cruise control cable to the cruise control module. Refer to Cruise Control Cable Replacement (5.7L).
6. Connect the cruise control cable clip to the brake pipe clip.




7. Connect the electrical connector to the cruise control module.
8. Install the cruise control module cover.
9. Connect the negative battery cable.
10. Instal the left front bumper fascia lower deflector.
12. Adjust the cruise control cable as needed. Refer to Cruise Control Cable Adjustment. Service and Repair
