With Traction Control

REMOVAL PROCEDURE



1. Remove the cruise control servo cable adjuster cover.




2. Remove the cruise control cable from the servo cable adjuster.




3. Remove the cruise control cable (1) from the accelerator control cable clip (3).
4. Remove the cruise control cable from the accelerator/cruise control cable servo bracket.

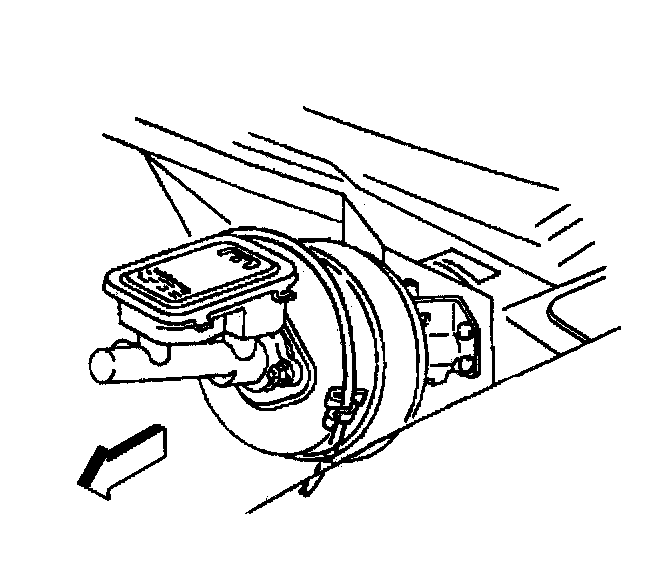

5. Remove the cruise control cable clip from the brake booster.
6. Raise and suitably support the vehicle.

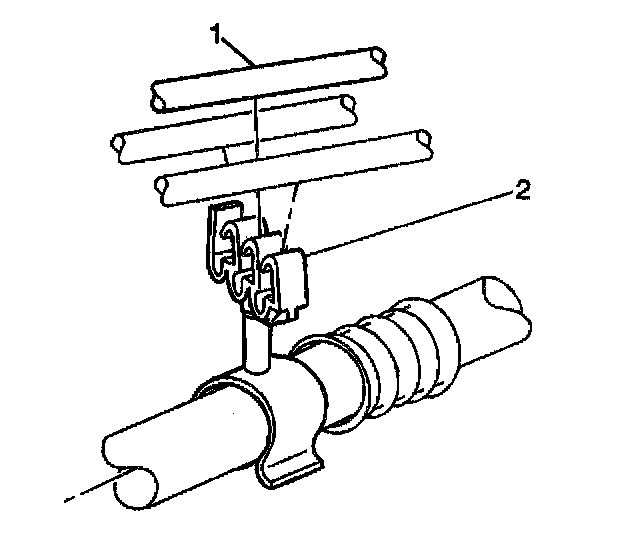

7. Disconnect the cruise control cable rosebud connector from the brake pipe clip.




8. Remove the cruise control module shield bolts and nut.
9. Remove the cruise control shield.

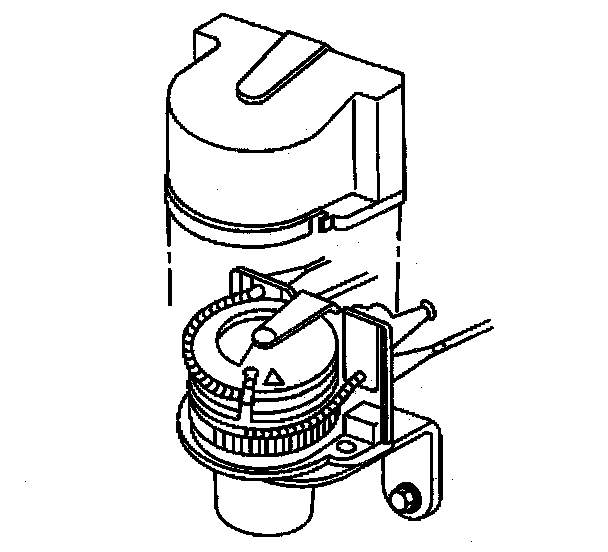

10. Remove the cruise control servo cover.




11. Remove the retainer from the cruise control module.

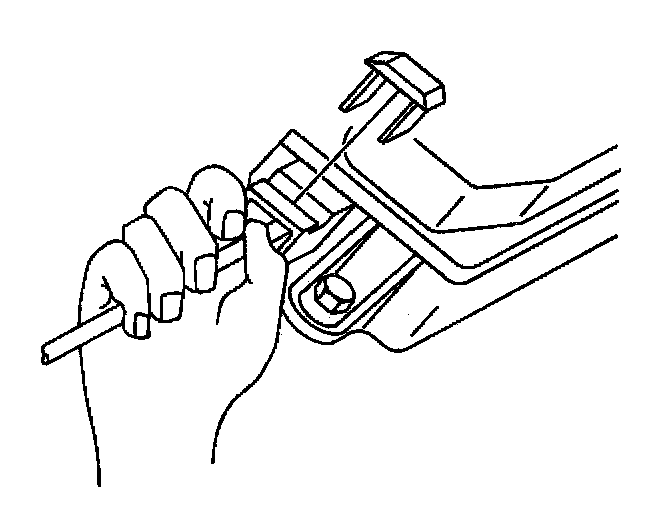

Compress the conduit tangs.

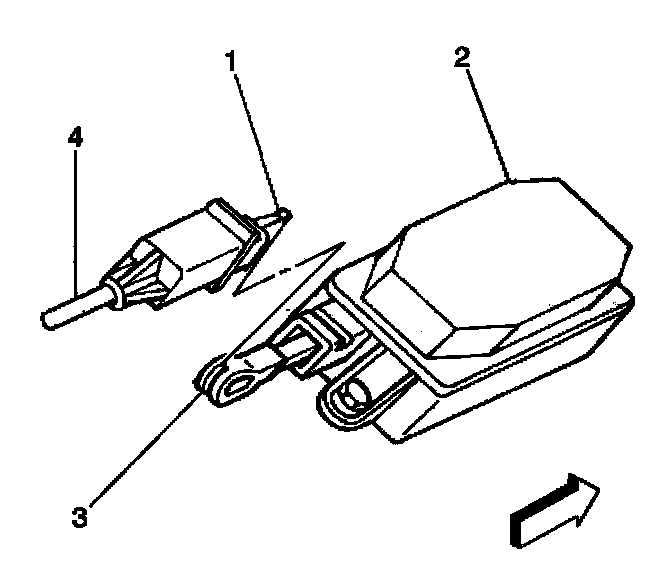

12. .Pull the cruise control cable (4) out from the module (2).
13. .Disconnect the cable bead (1) from the ribbon (3)
14. .Remove the cruise control cable from the vehicle.

INSTALLATION PROCEDURE



1. Install the cruise control cable to the vehicle.
2. Inspect the cable end to insure the O-ring is in place.
3. Connect the cable bead (1) to the ribbon (3)
4. Remove the shipping retainer.

IMPORTANT: Cruise control module ribbon must not be twisted.
5. Pull the engine end of the cruise control cable until the cable is taut.

6. Install the conduit fitting over the ribbon and snap cable end into the module.
Ensure that both tangs are engaged.




7. Install the retainer to the cruise control module.




8. Install the cruise control servo cover.




9. Install the cruise control module shield.

NOTE: Refer to Fastener Notice in Cautions and Notices.

10. Install the cruise control module shield bolts and nut.

Tighten
^ Tighten the cruise control module shield bolts to 6 N.m (53 lb in).
^ Tighten the cruise control module shield nut to 27 N.m (20 lb ft).




11. Connect the cruise control cable rosebud connector to the brake pipe clip.
12. .Lower the vehicle.




13. .Install the cruise control cable clip to the brake booster.
14. .Install the cruise control cable to the accelerator/cruise control cable servo bracket.




15. .Install the cruise control cable (1) to the accelerator control cable clip (3).




16. .Install the cruise control cable to the servo cable adjuster.




17. .Install the cruise control servo cable adjuster cover.
18. .Adjust the cruise control cable as needed. Refer to Cruise Control Cable Adjustment. Adjustments
