Engine Oil Pressure Sensor

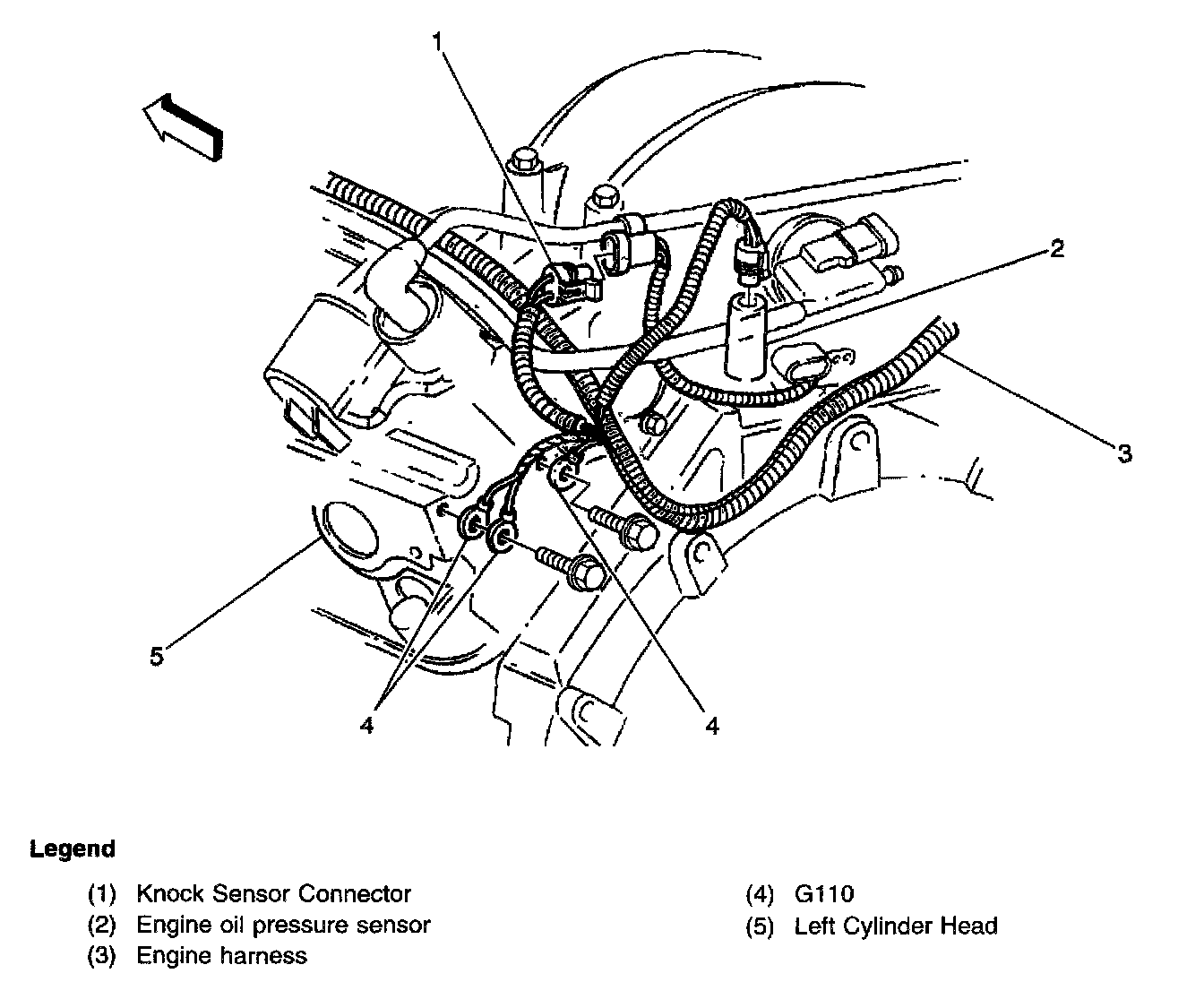

Upper Left Rear Of Engine:




Locations View:





On the top rear of the engine, near the left cylinder head
