BCM,IGN SW, Security IND Led, Theft Deterrent Relay & Shock SEN

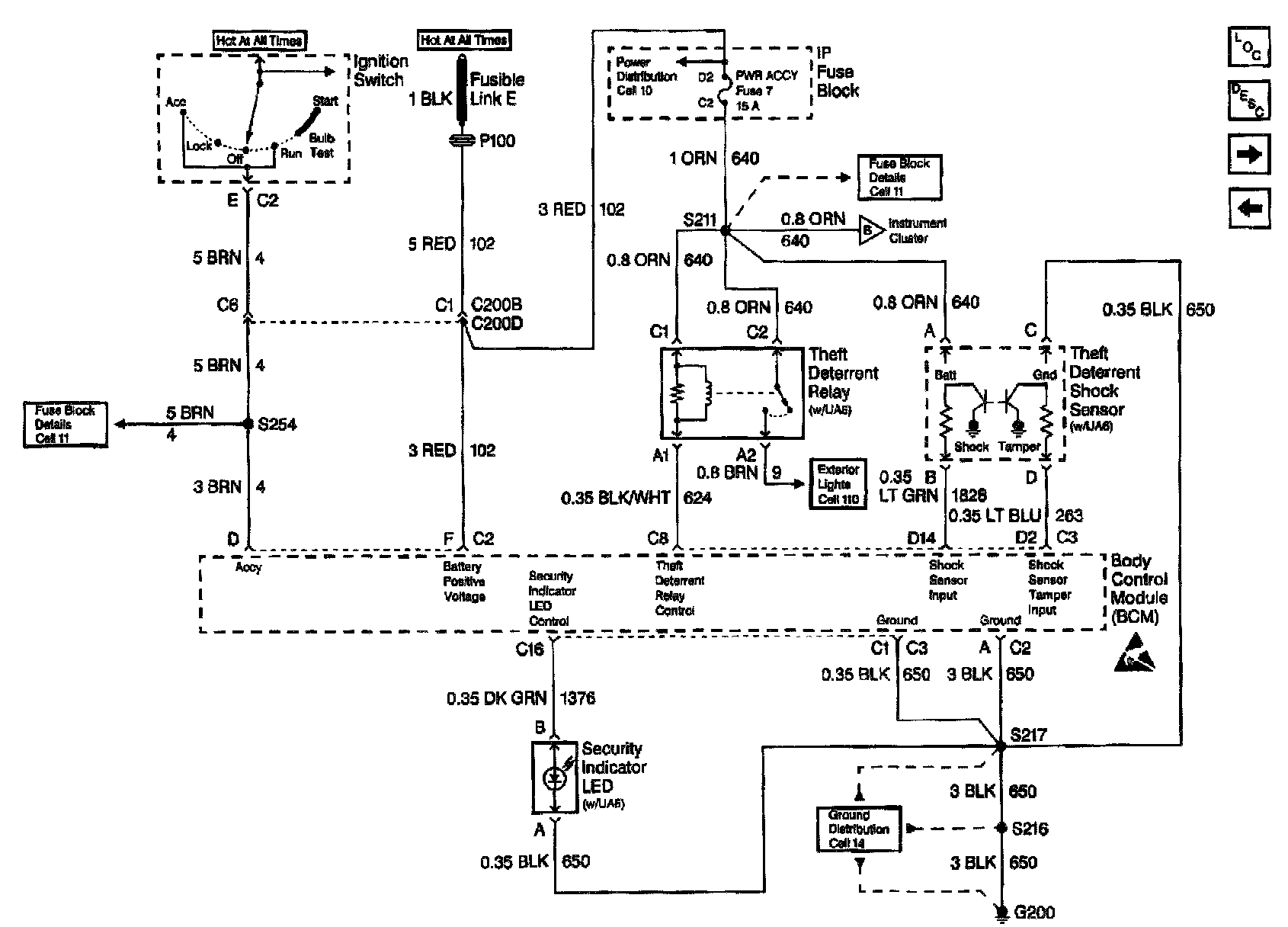

Theft Deterrent System Schematics: BCM, Ignition Switch, Security Indicator LED, Theft Deterrent Relay, And Theft Deterrent Shock Sensor:
