59. Vapor Vent Pipe Clean and Inspect

Important: Do not reuse the vapor vent pipe gaskets. Upon installation of the vapor vent pipe, install NEW gaskets.

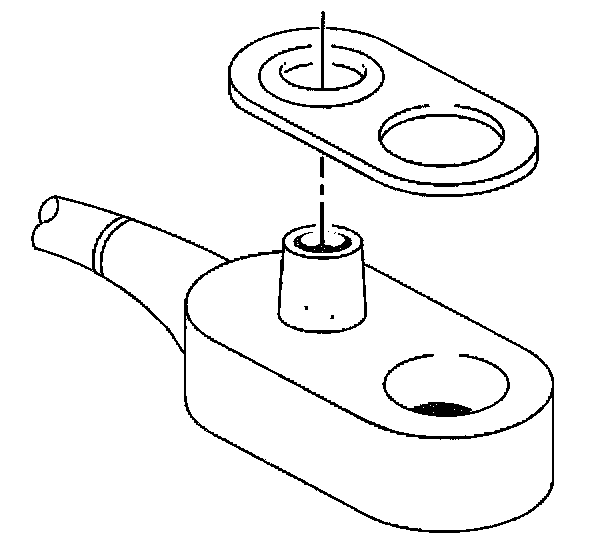

1. Remove the vapor vent pipe hose, clamps and sealing gaskets from the tube.





2. Clean the vapor vent pipe (1) and hose (2) in solvent.

Caution: Wear safety glasses in order to avoid eye damage.

3. Dry the tube with compressed air.
4. Inspect the vapor vent pipe for damage or restrictions.
5. Inspect the vapor vent pipe gasket and hose sealing surfaces for damage.
6. Inspect the vapor vent pipe hose (2) for restrictions, cracking or wear.
The vapor vent pipe hose may be reused if not damaged.
