Blower Motor Resistor: Service and Repair

Blower Motor Resistor Replacement

REMOVAL PROCEDURE
1. Remove the key from the ignition in order to assure that the ignition switch will remain in the OFF position.
2. Remove the right instrument panel insulator.
3. Pull the carpet away from the heater module.

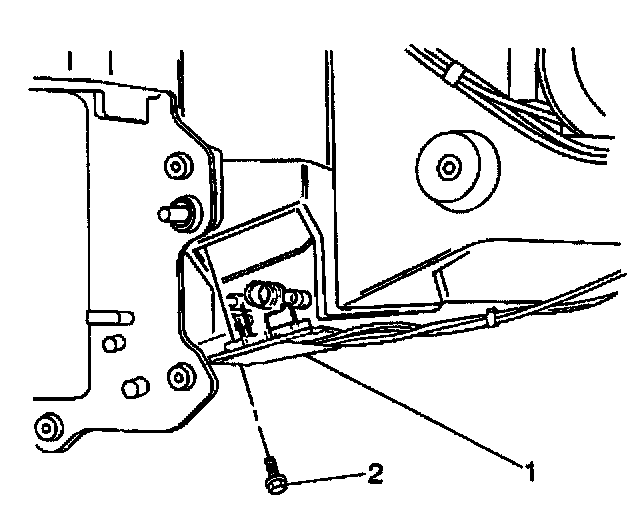

4. Remove the blower motor resistor bolt (2).
5. Remove the blower motor resistor (1).

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.

1. Install the blower motor resistor (1).
2. Install the blower motor resistor bolt (2).

Tighten
Tighten the blower motor resistor bolt to 2 N.m (18 lb in).

3. Reposition the carpet.
4. Install the right instrument panel insulator.
5. Test the blower motor operation at each of the four speeds.
