Service Port HVAC: Service and Repair

Service Ports Replacement

REMOVAL PROCEDURE

TOOLS REQUIRED
J 34611-A Valve Core Remover and Installer

1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging.

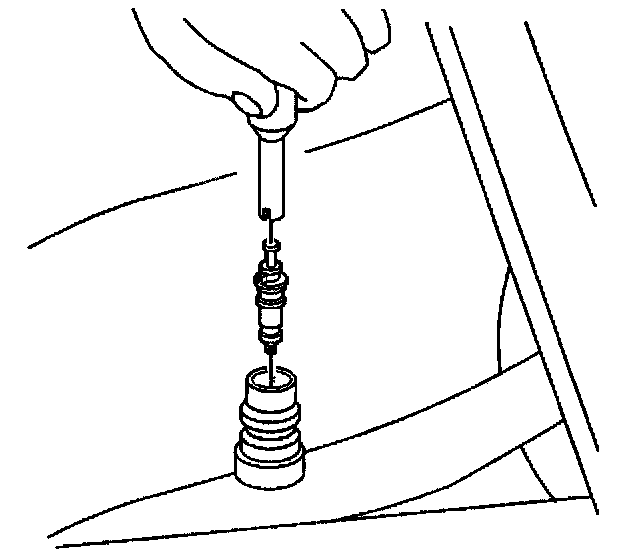

2. Remove the valve core using J 34611-A.

INSTALLATION PROCEDURE

TOOLS REQUIRED
J 34611-A Valve Core Remover and Installer

1. Install the valve core using J 34611-A.
2. Recharge the A/C system. Refer to Refrigerant Recovery and Recharging.
3. Test the fitting for leaks. Refer to Leak Testing.
