Turn Signal Lamp: Service and Repair
PONTIAC FIREBIRDREMOVAL PROCEDURE
1. Raise and suitably support the vehicle.
2. Open the access door in the front bumper air deflector.
3. Disconnect the electrical connector from the park and [1][2]turn signal lamp.
4. Remove the park and [1][2]turn signal lamp nuts.
5. Remove the park and [1][2]turn signal lamp (2) from the fascia.
INSTALLATION PROCEDURE
1. Install the park and [1][2]turn signal lamp (2) to the fascia.
NOTE: Refer to Fastener Notice in Cautions and Notices.
2. Install the park and [1][2]turn signal lamp bolts.
Tighten
Tighten the park and [1][2]turn signal lamp nuts to 4 N.m (35 lb in).
3. Connect the electrical connector to the park and [1][2]turn signal lamp.
4. Close the access door in the front bumper air deflector.
5. Lower the vehicle.
PONTIAC TRANS AM

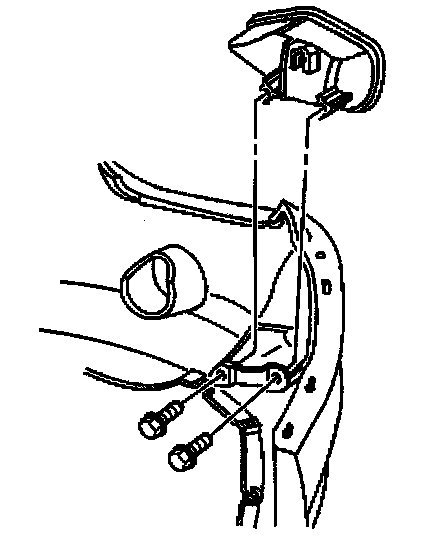

REMOVAL PROCEDURE
1. Raise and suitably support the vehicle.
2. Open the access door in the front bumper air deflector.
3. Disconnect the electrical connector from the park and [1][2]turn signal lamp.
4. Remove the park and [1][2]turn signal lamp bolts.
5. Remove the park and [1][2]turn signal lamp from the fascia.
INSTALLATION PROCEDURE
1. Install the park and [1][2]turn signal lamp to the fascia.
NOTE: Refer to Fastener Notice in Cautions and Notices.
2. Install the park and [1][2]turn signal lamp bolts.
Tighten
Tighten the park and [1][2]turn signal lamp bolts to 2.5 N.m(22 lb in).
3. Connect the electrical connector to the park and [1][2]turn signal lamp.
4. Close the access door in the front bumper air deflector.
5. Lower the vehicle.
