Powertrain Controls

Power, Ground and MIL

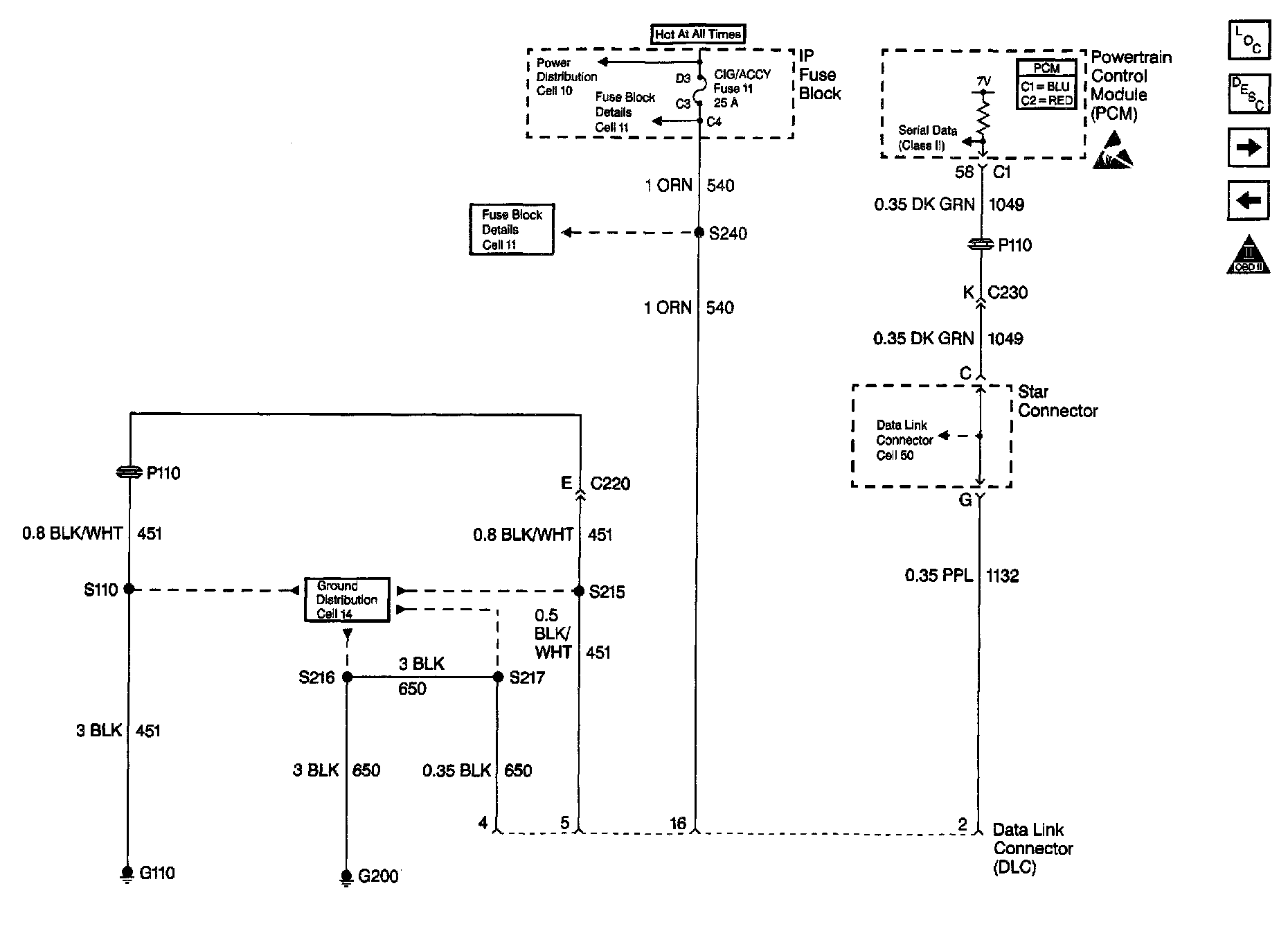

Data Link Connector




Bank 1 Ignition Coil/Modules

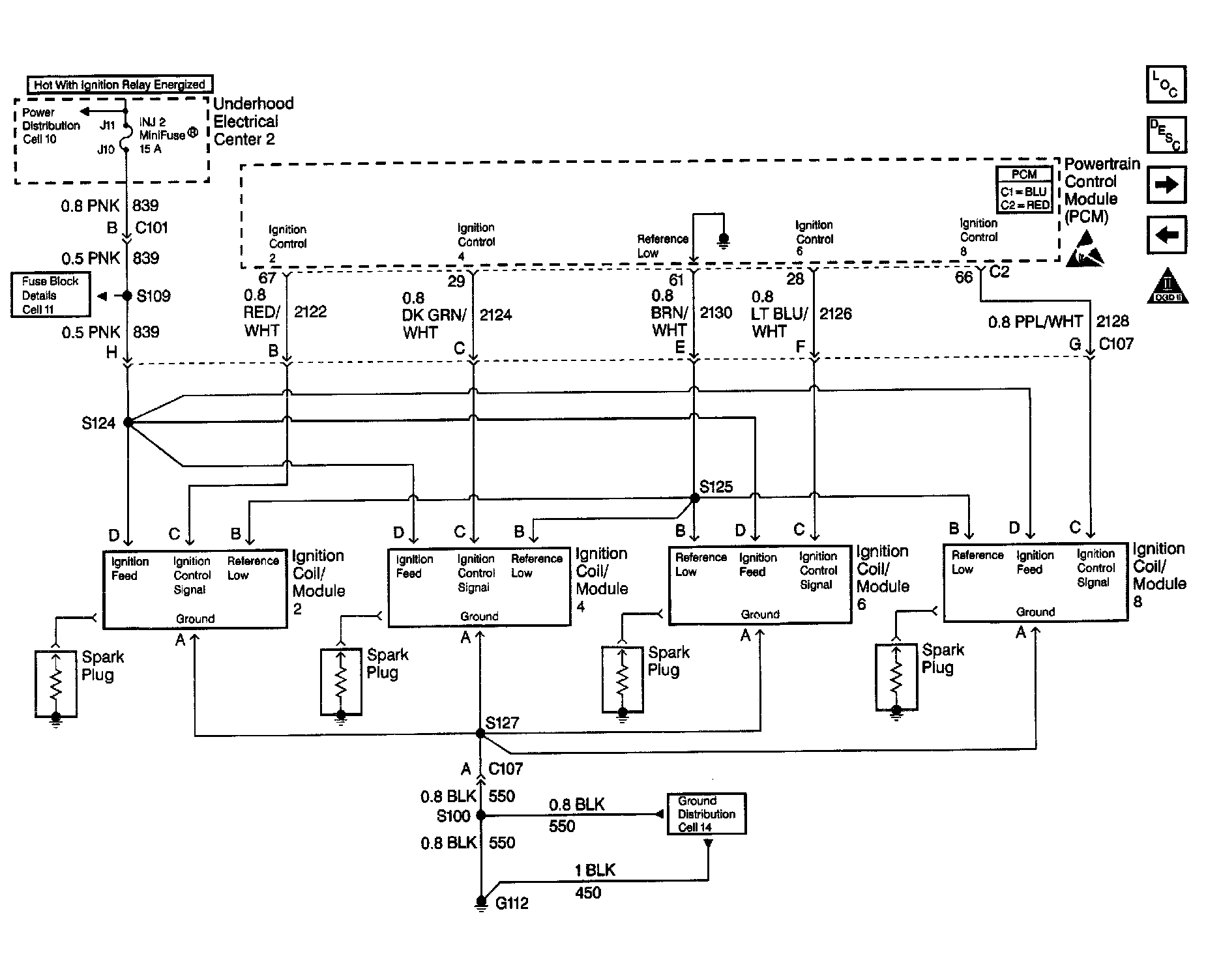

Bank 2 Ignition Coil/Modules

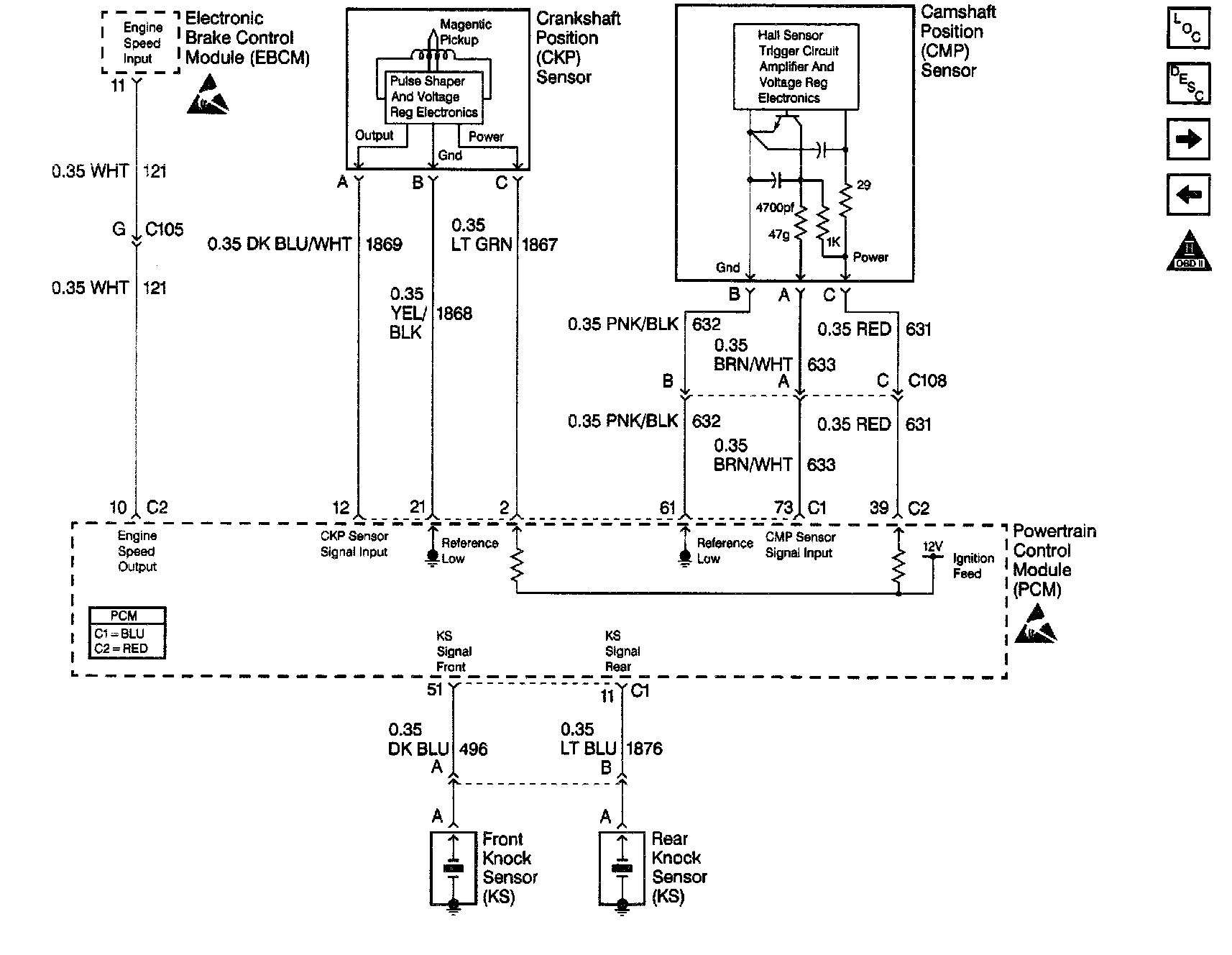

Engine Speed Output, CKP, CMP and Knock Sensors

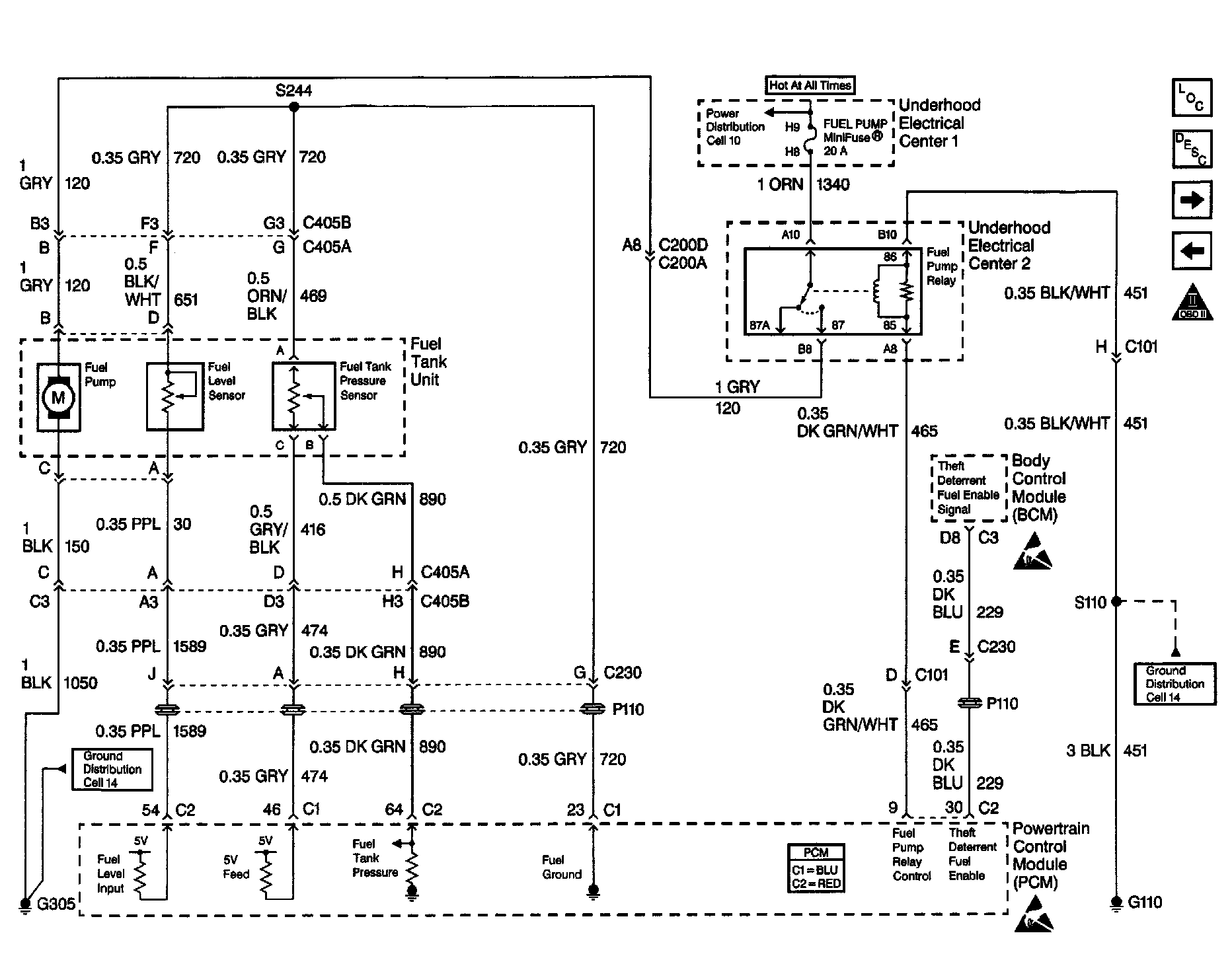

Fuel System

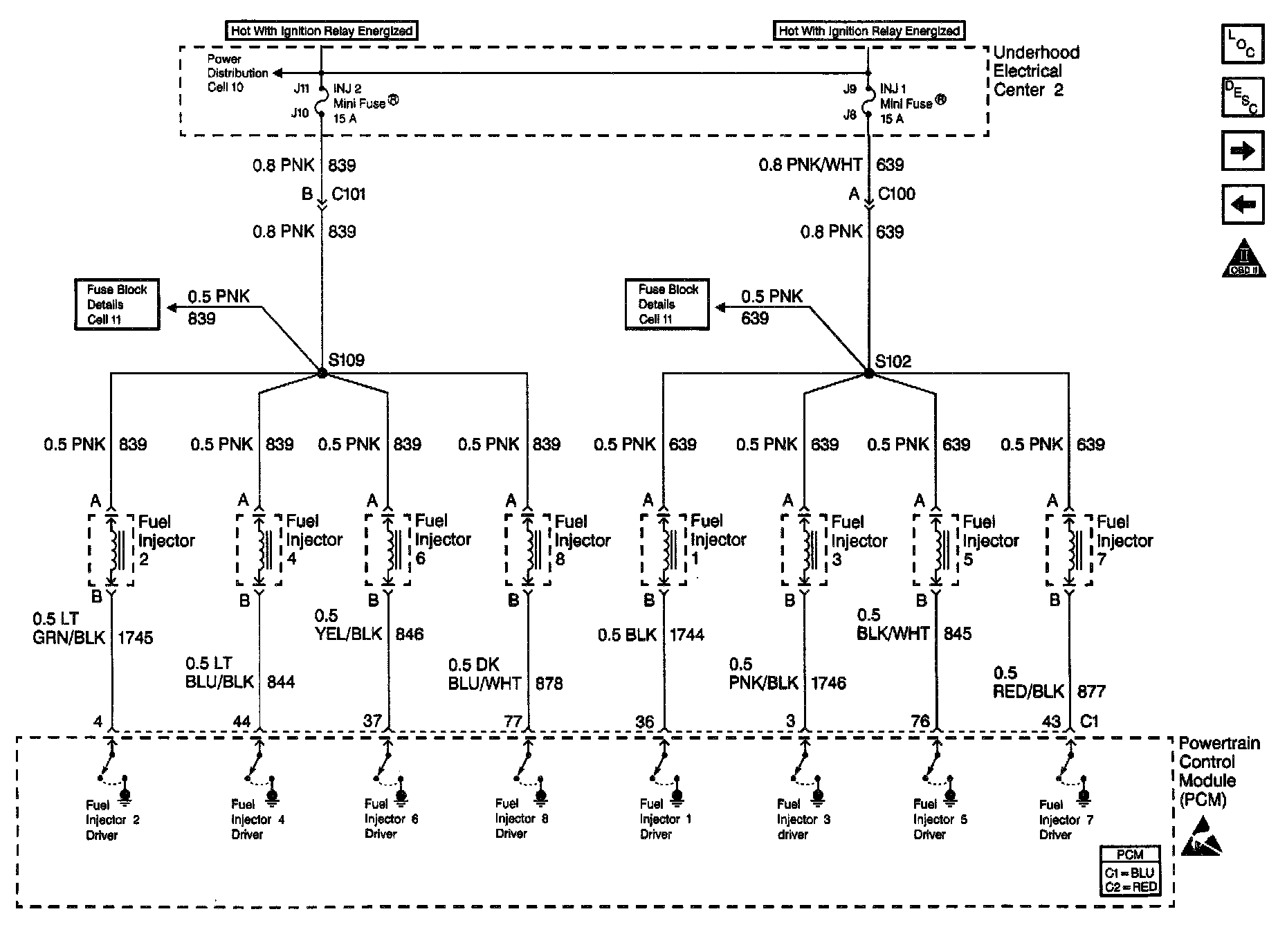

Injector Circuits




Information Sensors




Heated Oxygen Sensors

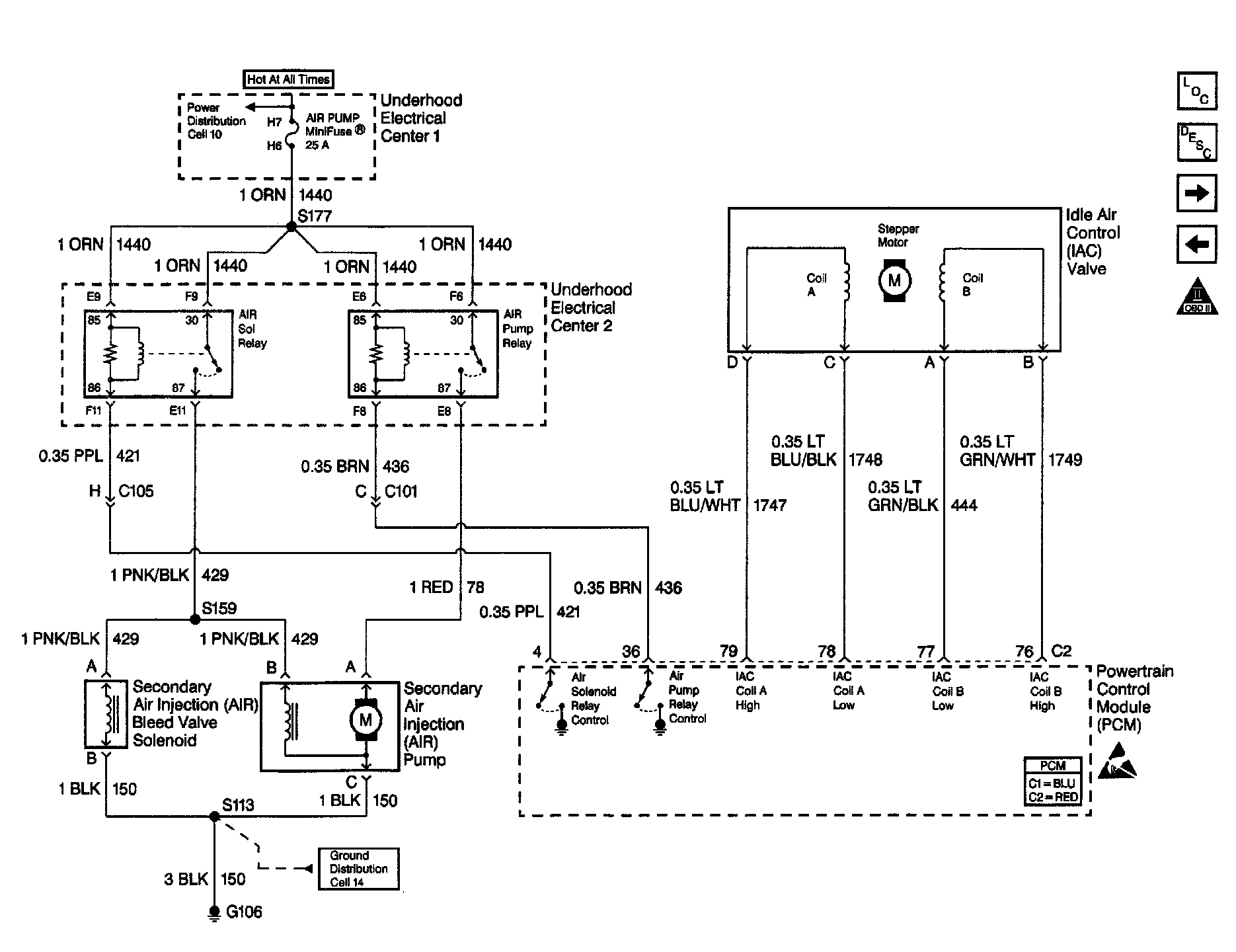

AIR and IAC

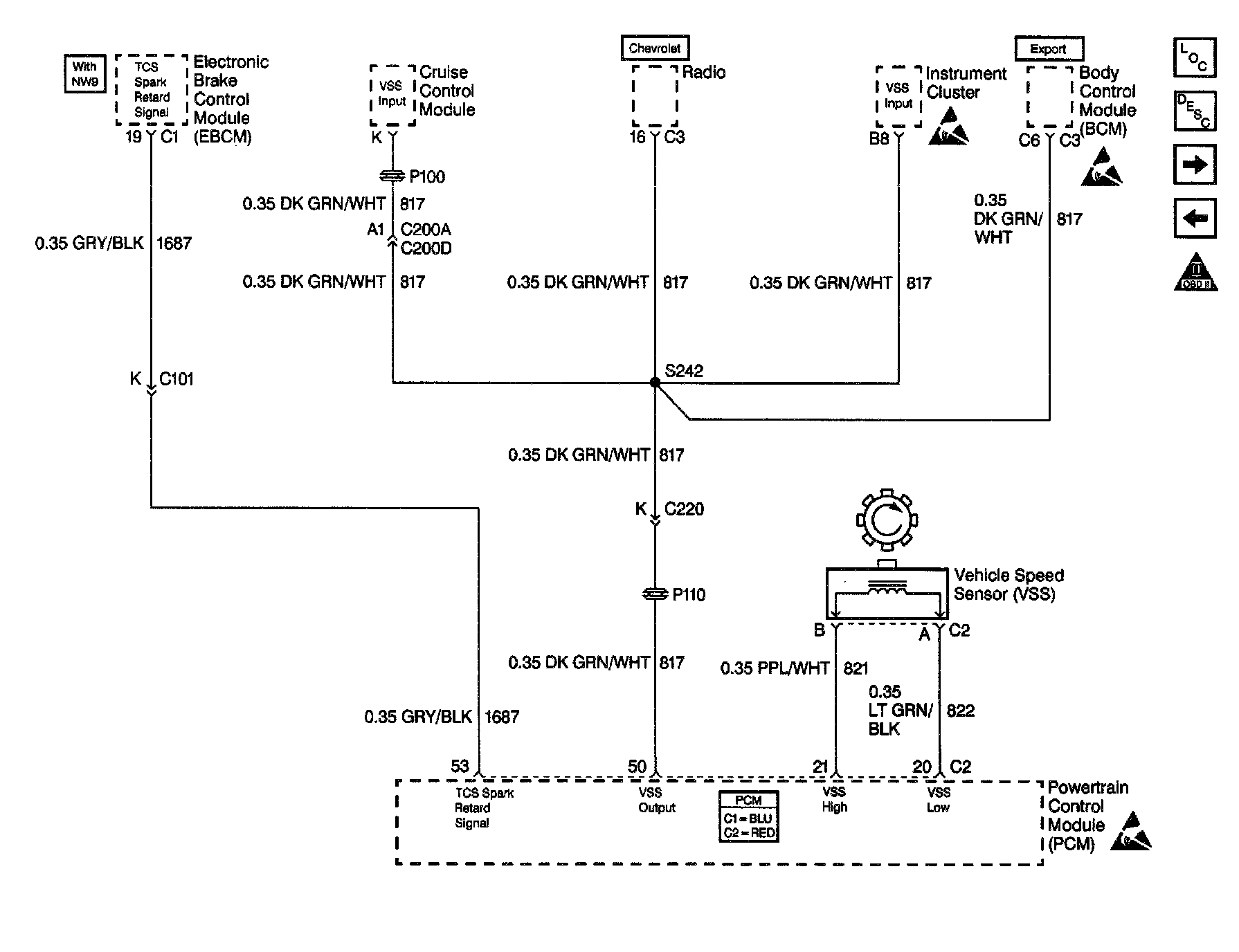

TCS Retard Signal, VSS Output and VSS Signal




[1][2]EVAP and EGR




Oil Level, ETC, Cruise Control and Generator

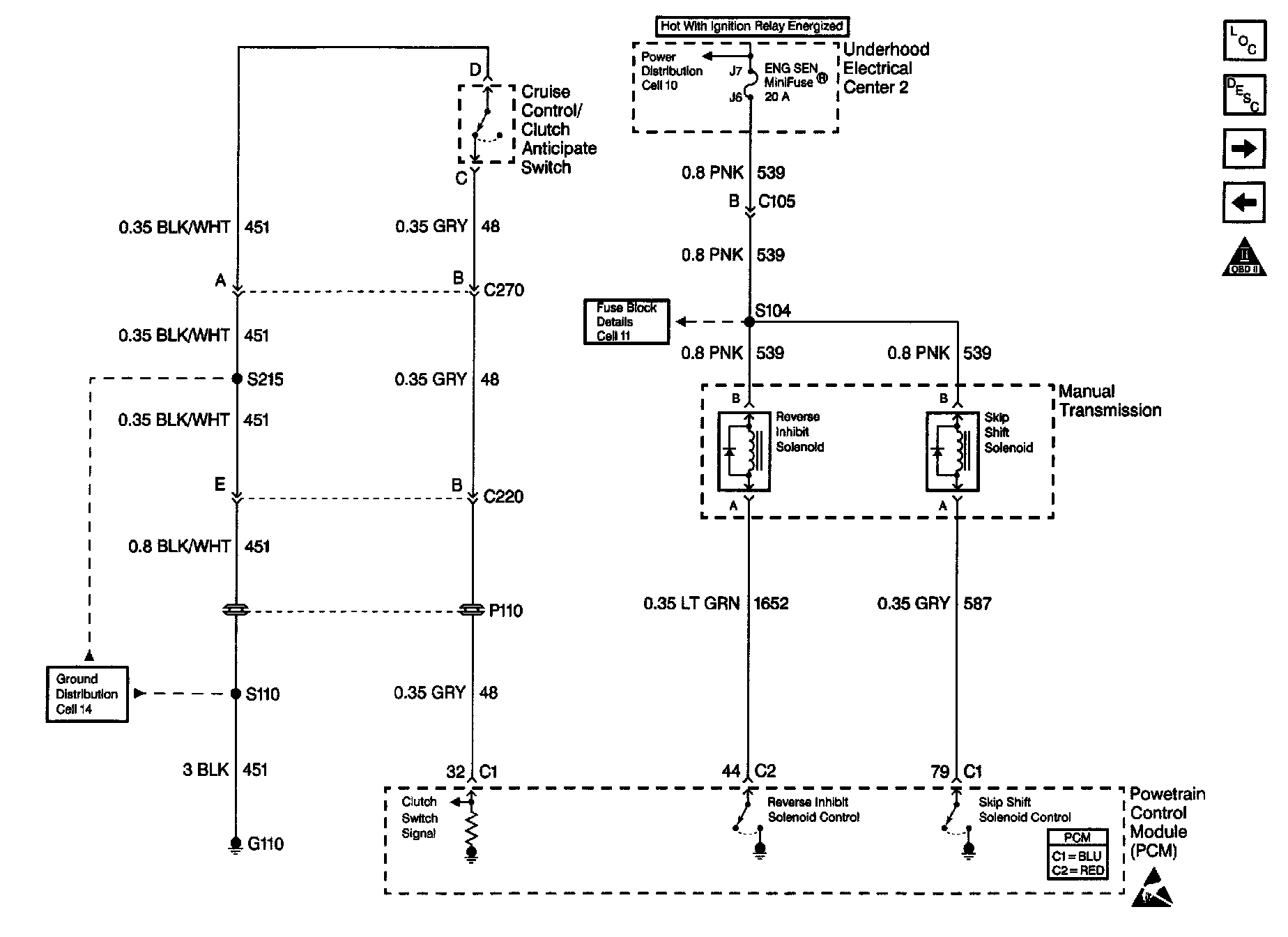

Clutch Anticipate Switch, Reverse Inhibit and Skip Shift Solenoids




Automatic Transmission, Stop Lamp Switch




Automatic Transmission, PNP Switch




A/C System

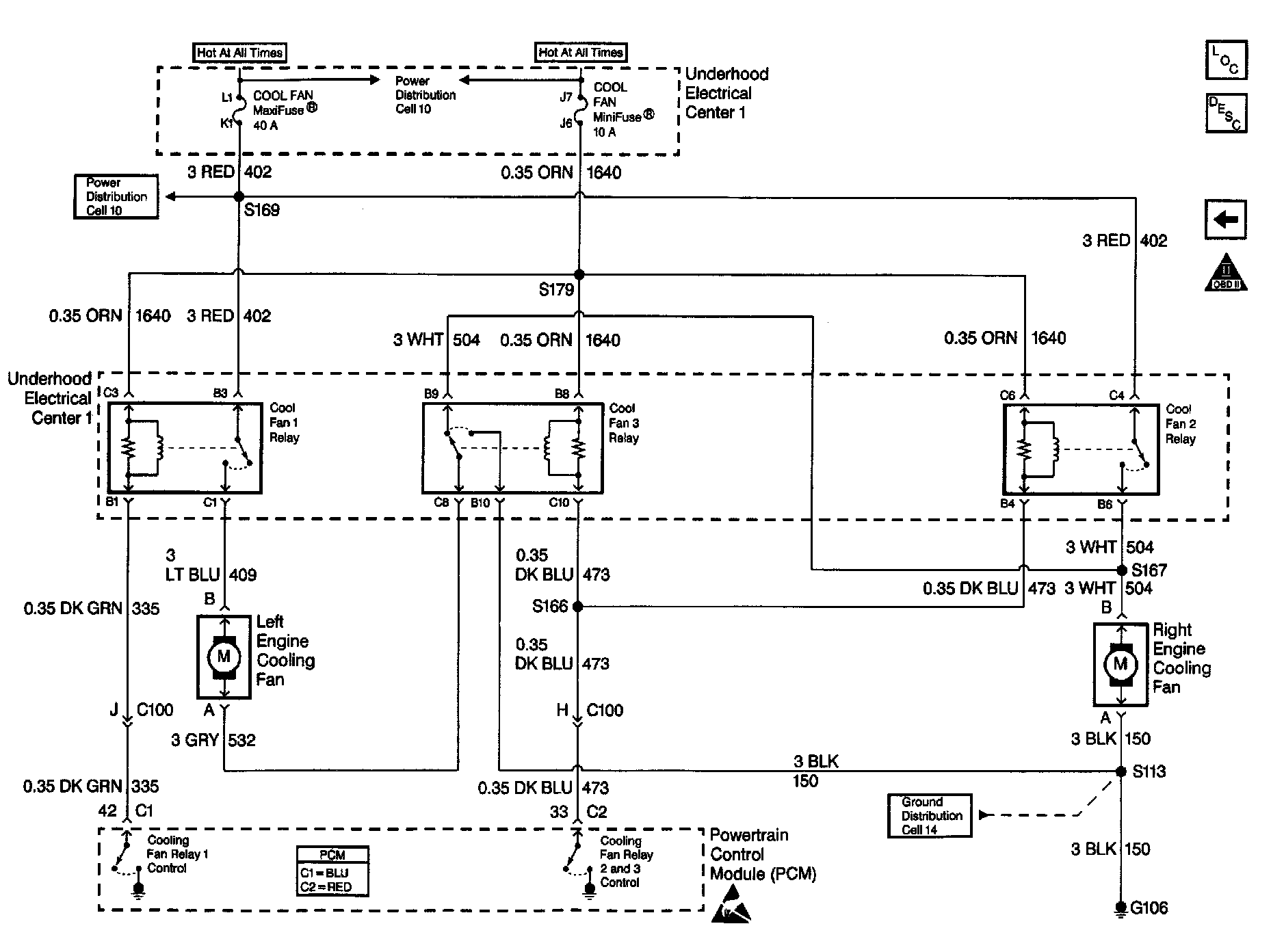

Engine Cooling Fans
