Evaporative System Service Port

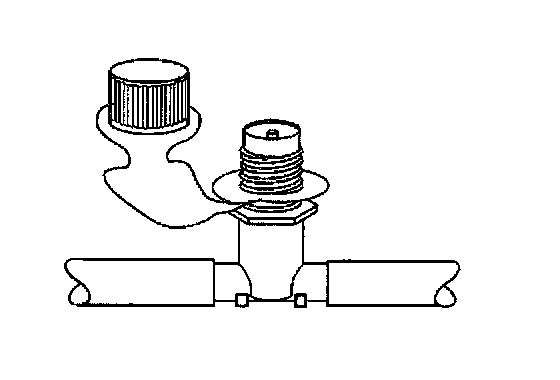

The Evaporative System Service Port is located in the evaporative hose located between the purge solenoid and the canister. The service port is identified by a green colored cap. The port contains a schrader valve and fittings in order to allow the connection of the service tool kit Enhanced [1][2]EVAP Pressure Purge Diagnostic Cart J 41413.
