AIR Cleaner Assembly Replacement

REMOVAL PROCEDURE




1. Loosen the air cleaner outlet duct clamps.

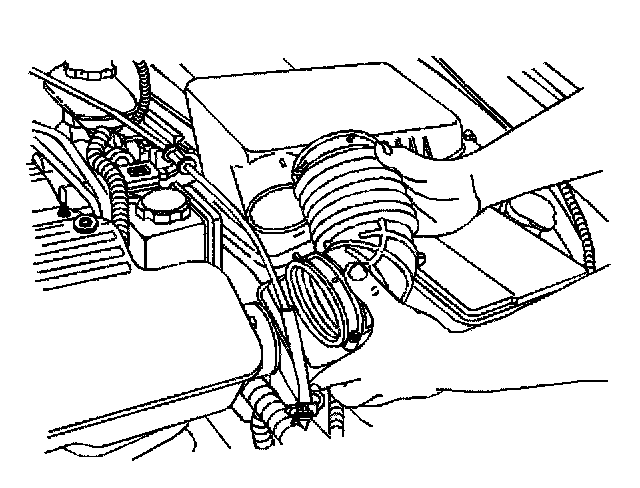

2. Remove the air cleaner outlet duct from the air cleaner assembly.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

3. Disconnect the battery cables.
4. Remove the battery.

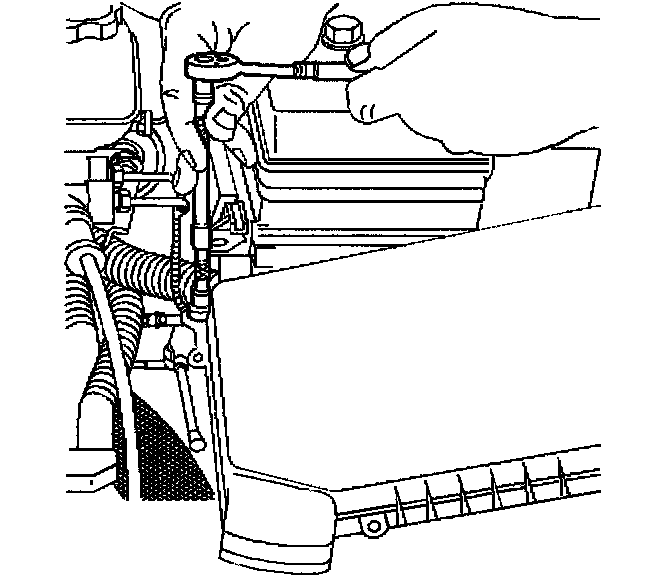

5. Remove the lower air cleaner mounting nuts.

Upper And Lower Air Cleaner Assembly:

6. Remove the upper and lower air cleaner assembly.

INSTALLATION PROCEDURE

IMPORTANT: Verify full engagement of the intake duct and resonator assembly into the air cleaner assembly.




1. Install and align the upper and lower air cleaner assembly to the intake duct and the resonator assembly.

NOTE: Refer to Fastener Notice in Service Precautions.




2. Install the lower air cleaner mounting nuts.

Tighten
Lower air cleaner mounting nuts to 10 N.m (89 lb in).




3. Install the battery.
4. Connect the battery cables.
5. Install the air cleaner outlet duct to the air cleaner assembly.


NOTE: Refer to Fastener Notice in Service Precautions.

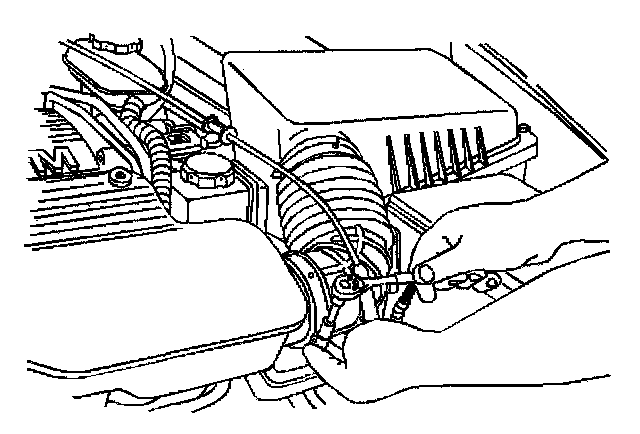

6. Tighten the air cleaner outlet duct clamps.

Tighten
Air cleaner outlet duct clamps to 5 N.m (44 lb in).
