Seats: Service and Repair
The following components secure the front seats to the floor pan:^ Two front hook attachments
^ Two rear bolts installed to nuts that are welded to the floor pan
The manually operated 2-way front adjusters provide only fore and aft movement of the seat. The seat adjuster handle is located on the front side of the seat. When the seat adjuster handle is pulled up, the seat adjusters unlock. This action permits travel of the seat. When the seat is in the desired position, and the seat adjuster handle is released, the seat locks in place.
The power operated 6-way seat adjuster (driver's side only) is activated by 3 motors with the following characteristics:
^ 12-volt
^ Reversible
^ Permanent magnet motors
^ Built-in circuit breaker
A switch mounted on the seat cushion outer trim panel energizes the motors.
The 3 motors drive the following components:
^ A front vertical actuator
^ A rear vertical actuator A horizontal actuator
When the adjusters reach the limit of travel, torque is absorbed through the rubber mounted grommets. The grommets are located between the motor and the support. The circuit provides an overload relay if you apply excessive torque to the motor.
REMOVAL PROCEDURE
1. Remove the seat adjuster covers (2), if equipped. The covers snap onto the seat adjusters in the front and rear.
2. Position the front seat assembly forward in order to gain access to the seat adjuster attaching bolts.
3. Remove the seat adjuster attaching bolts.
4. Remove the seat belt wire harness (driver's side only).
5. Disconnect the power seat electrical connector, it equipped (driver's side only).

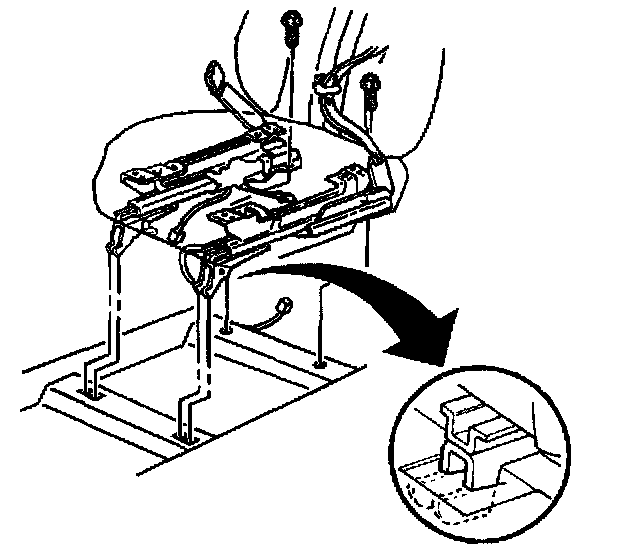

6. Remove the front seat. Manually tilt the seat forward in order to disengage the hooks from the floor pan.
INSTALLATION PROCEDURE
1. Install the front seat. Manually tilt the seat forward in order to engage the hooks onto the floor pan.
2. Connect the power seat electrical connector, if equipped (driver's side only).
3. Install the seat belt wire harness (driver's side only).
4. Position the front seat assembly forward in order to gain access to the seat adjuster attaching bolts.
NOTE: Refer to Fastener Notice in Cautions and Notices.
5. Install the seat adjuster bolts.
Tighten
Tighten the seat adjuster bolt to 40 N.m (30 lb ft).
6. Install the adjuster covers (2), if equipped.
