Cruise Control Switch: Service and Repair

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.
2. Disable the SIR system. Refer to Disabling the SIR System in SIR.
3. Remove the drivers side inflator module.
4. Remove the IP cluster trim plate.
5. Remove the IP cluster.

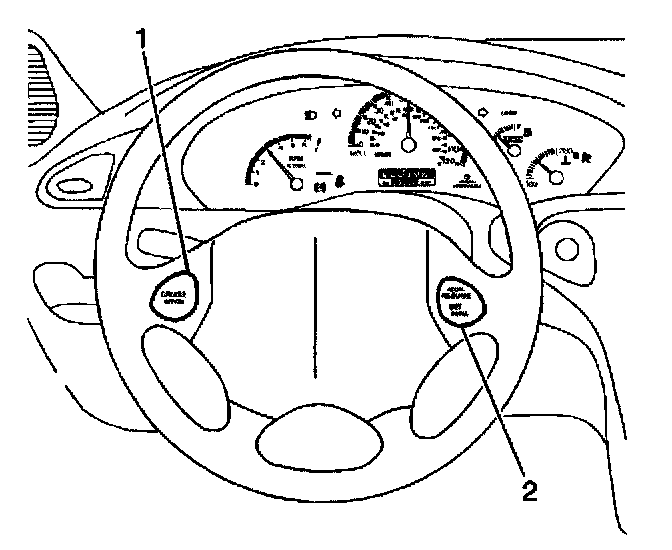

6. Remove the cruise control switch (1, 2). Pry outward with a flat bladed tool.
7. Disconnect the electrical connections.

INSTALLATION PROCEDURE
1. Connect the electrical connections.
2. Install the cruise control switch (1, 2). Ensure the unit is retained.
3. Install the IP cluster.
4. Install the IP cluster trim plate.
5. Install the drivers side inflator module.
6. Enable the SIR system. Refer to Enabling the SIR System in SIR.
7. Connect the negative battery cable.
