Pontiac
>>
1999
>>
Grand AM V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Backup Lamp
>>
Backup Lamp Assembly, RH
Backup Lamp Assembly, RH

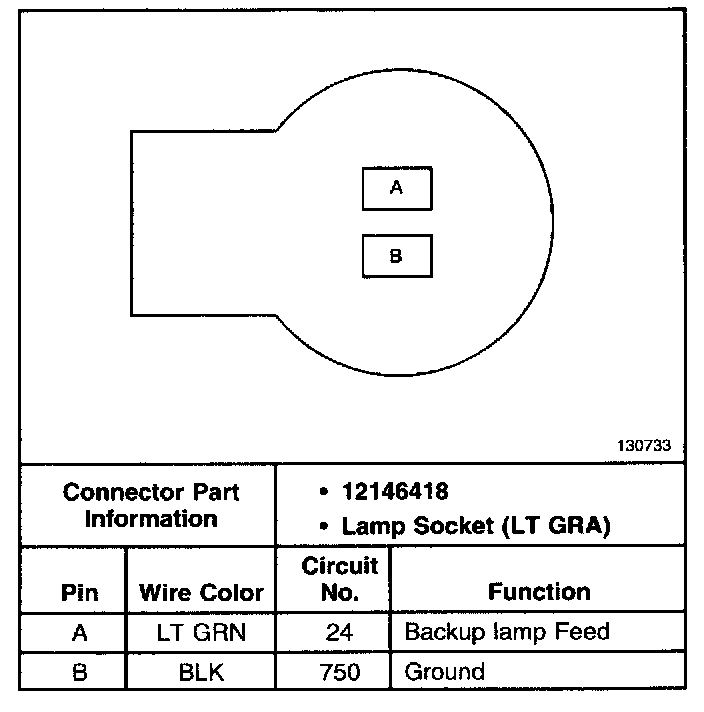

Backup Lamp Assembly, Right Side:
