Home
>>
Pontiac
>>
1999
>>
Grand AM V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors By Number
>>

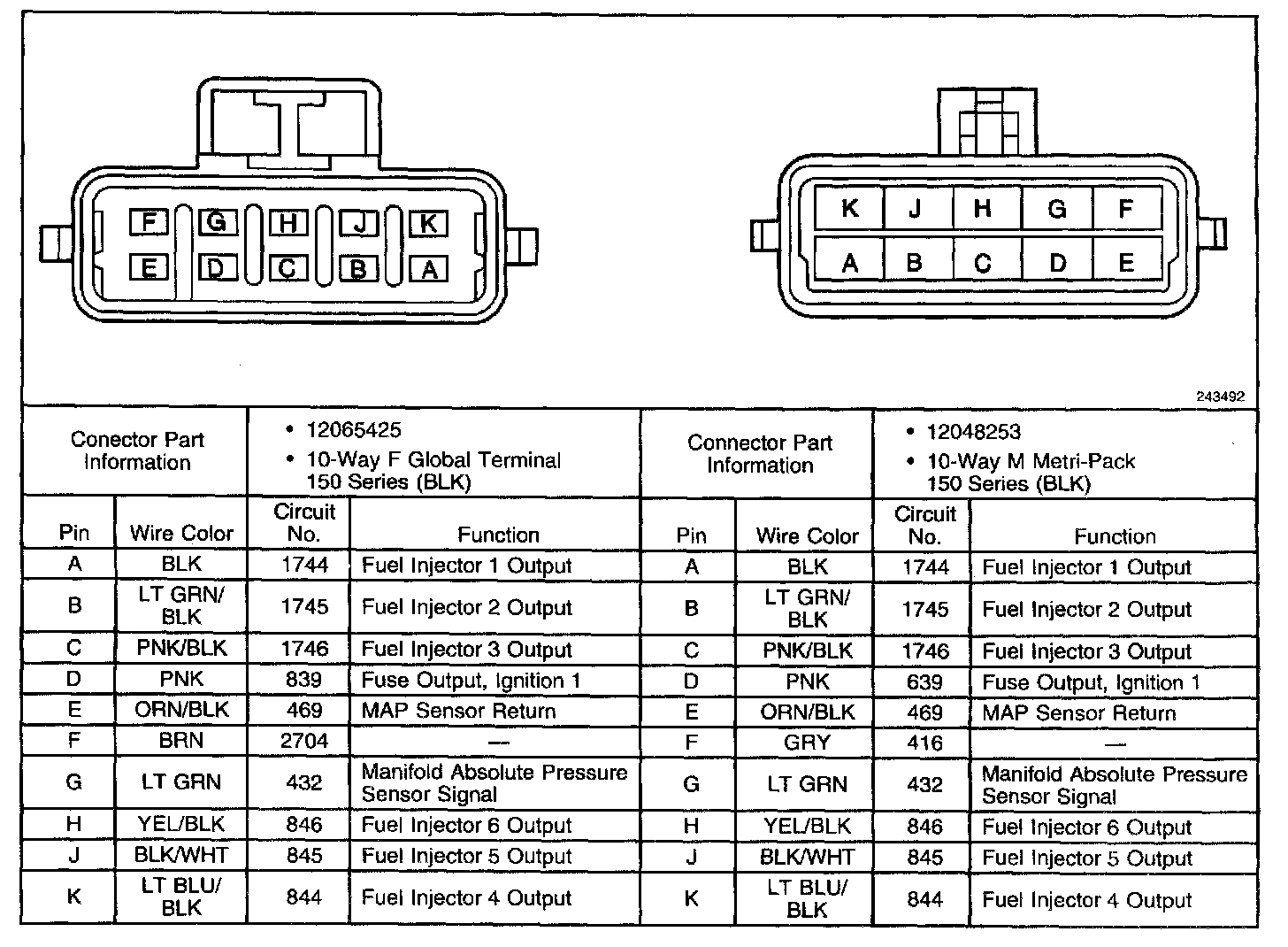

C130: LA1 Only
C130: LA1 Only
C130: LA1 Only:
