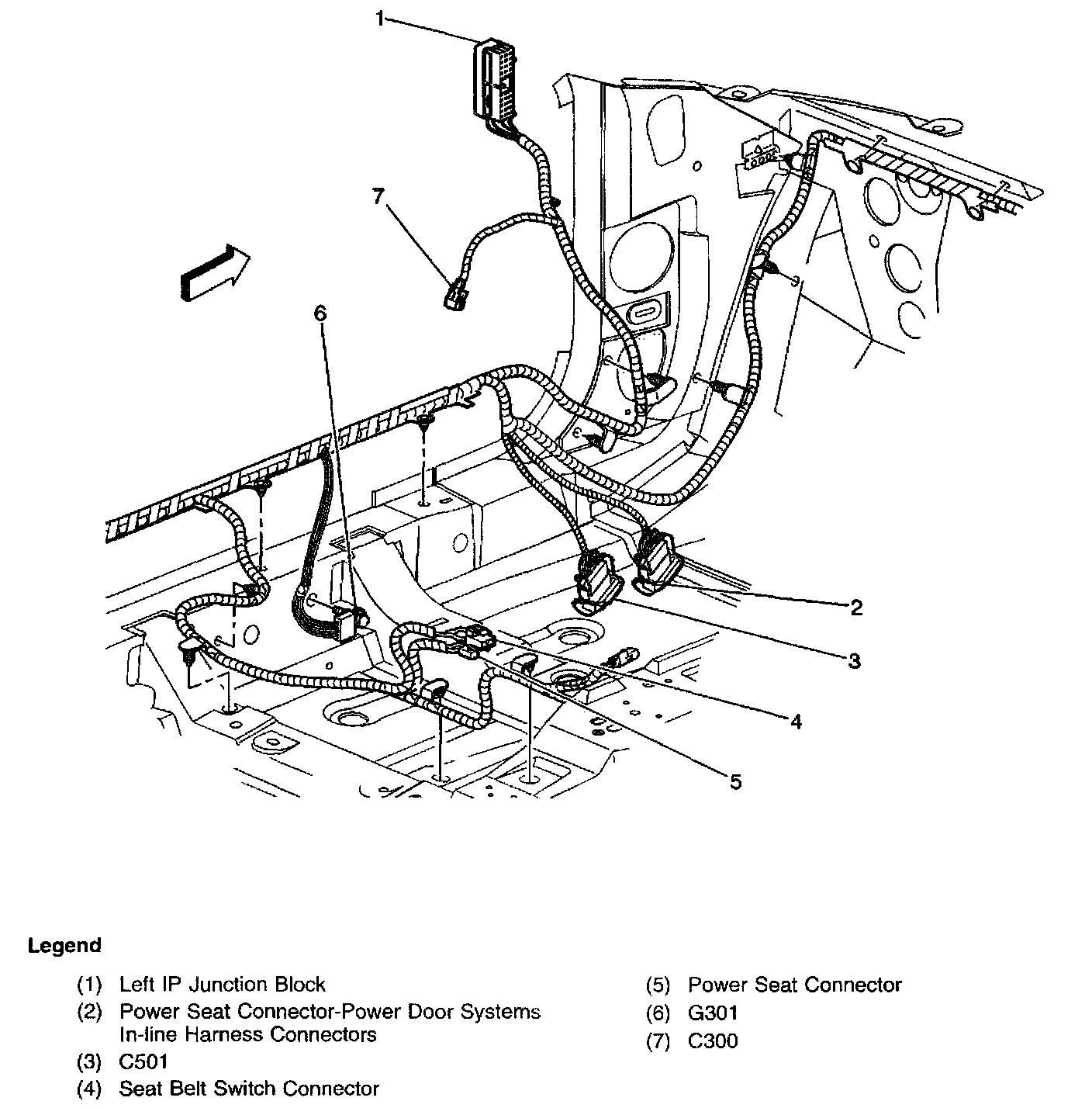

Power Seat CONN-Power Door Systems In-Line Harness CONN
Power Seat CONN-Power Door Systems In-Line Harness CONN
Left Side Of Passenger Compartment:
Left Side Of Passenger Compartment:
