Operation CHARM
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
1999
>>
Grand AM V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>

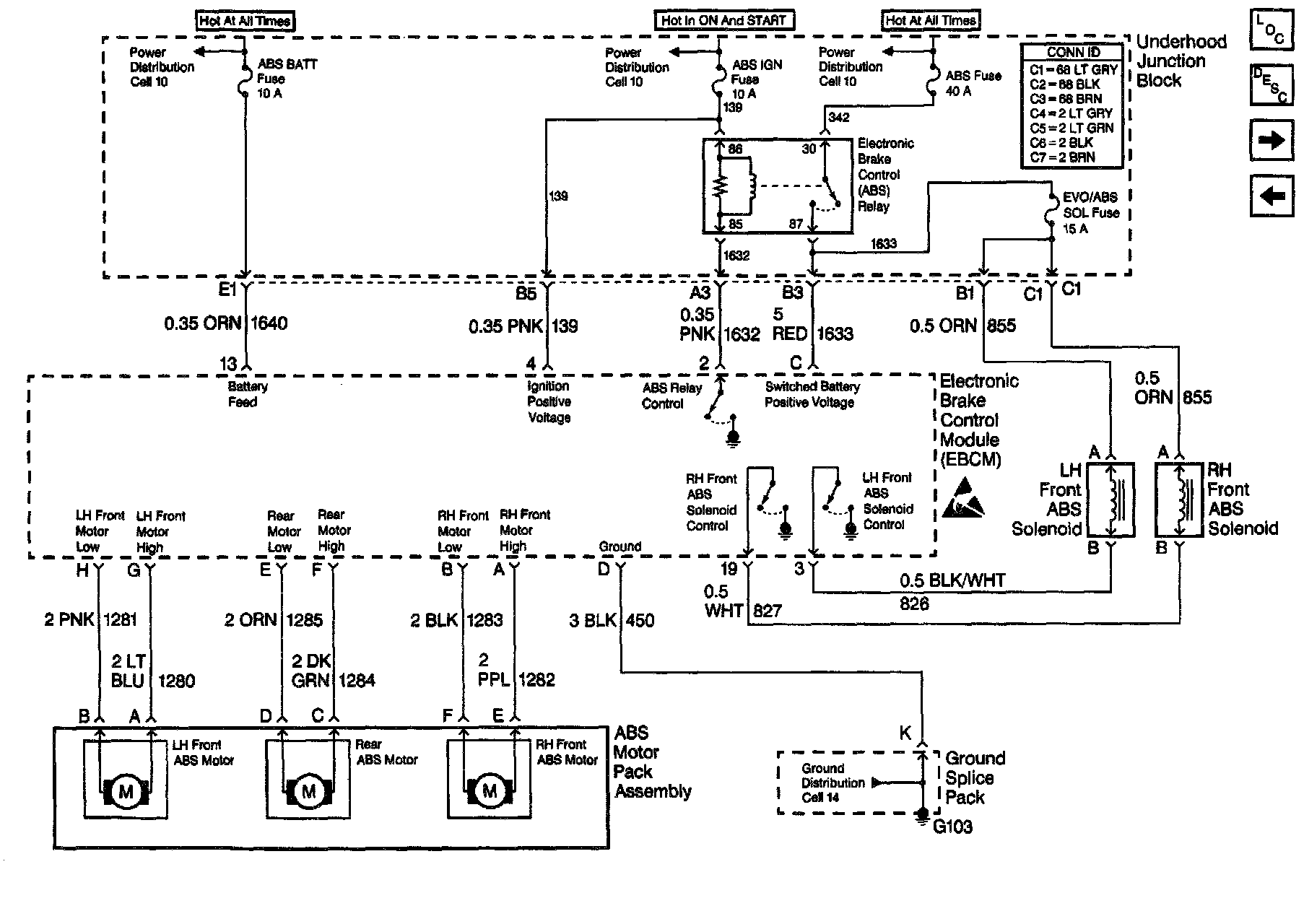

Cell 44: Relay, Solenoids and Motor Pack
Cell 44: Relay, Solenoids and Motor Pack
