Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
System Diagram

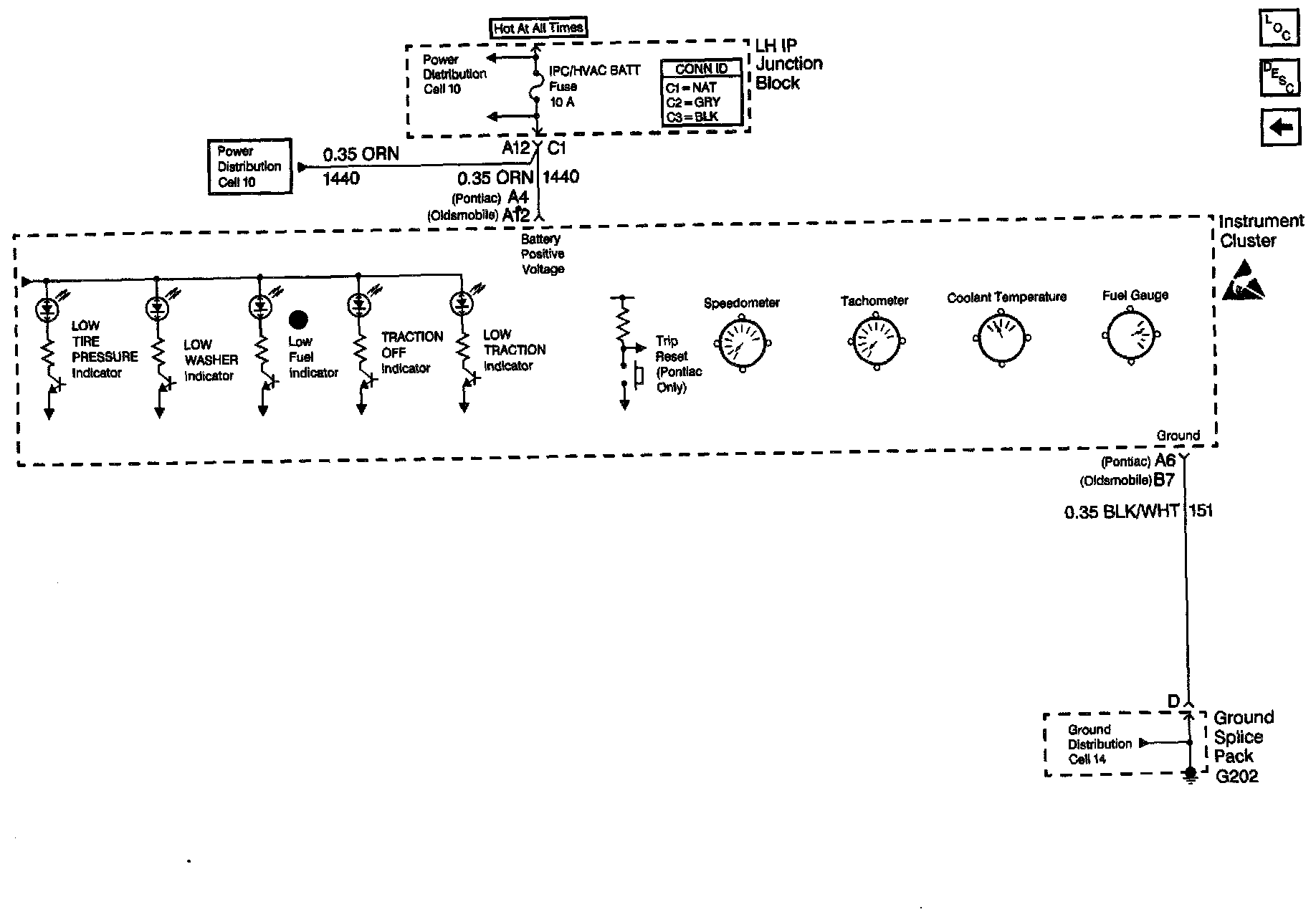

Instrument Cluster: Analog Schematics (Part 1 Of 3):

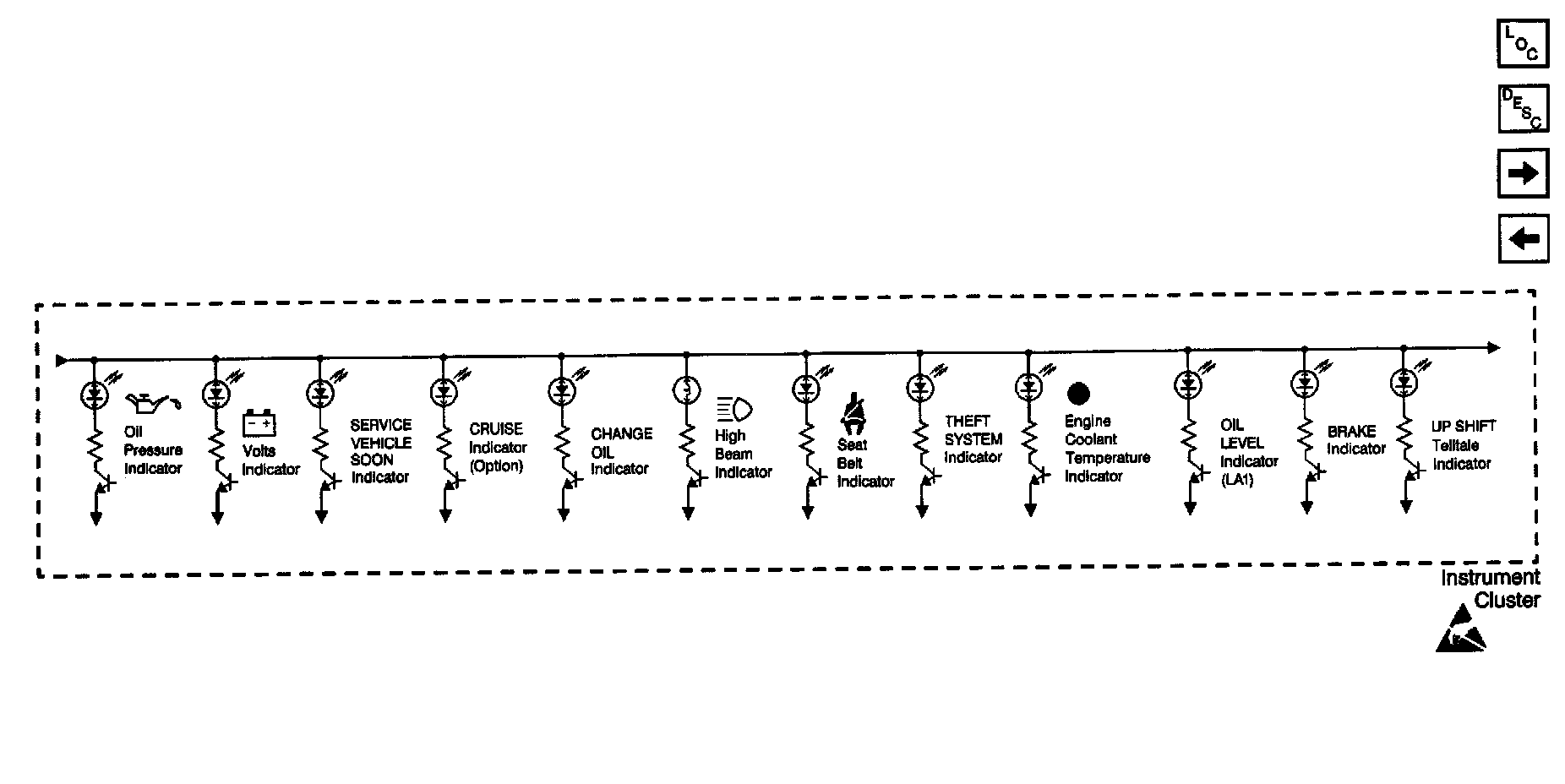

Instrument Cluster: Analog Schematics (Part 2 Of 3):

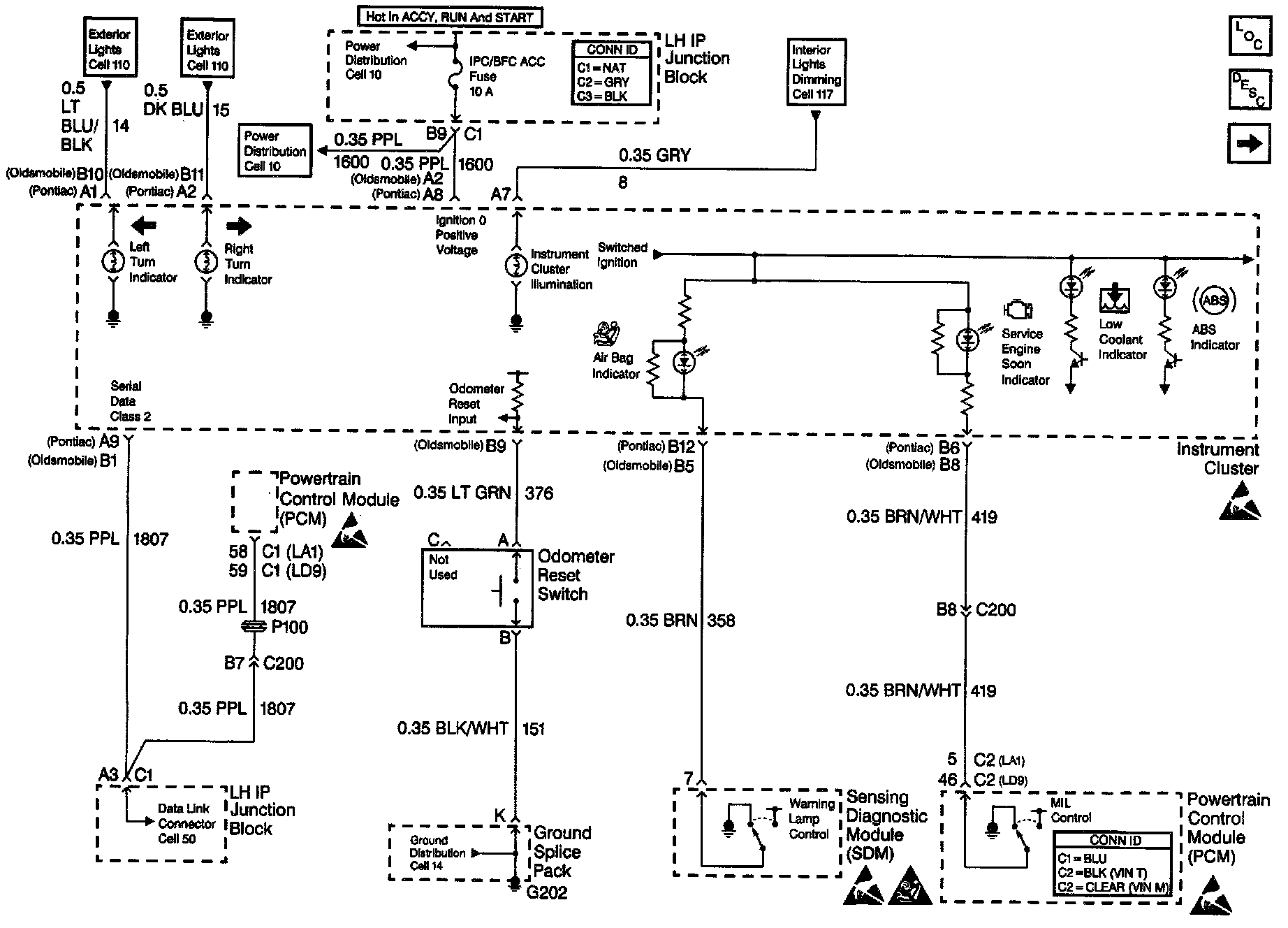

Instrument Cluster: Analog Schematics (Part 3 Of 3):
