Home >> Pontiac >> 1999 >> Grand AM V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> 6-Way Power Seats

6-Way Power Seats

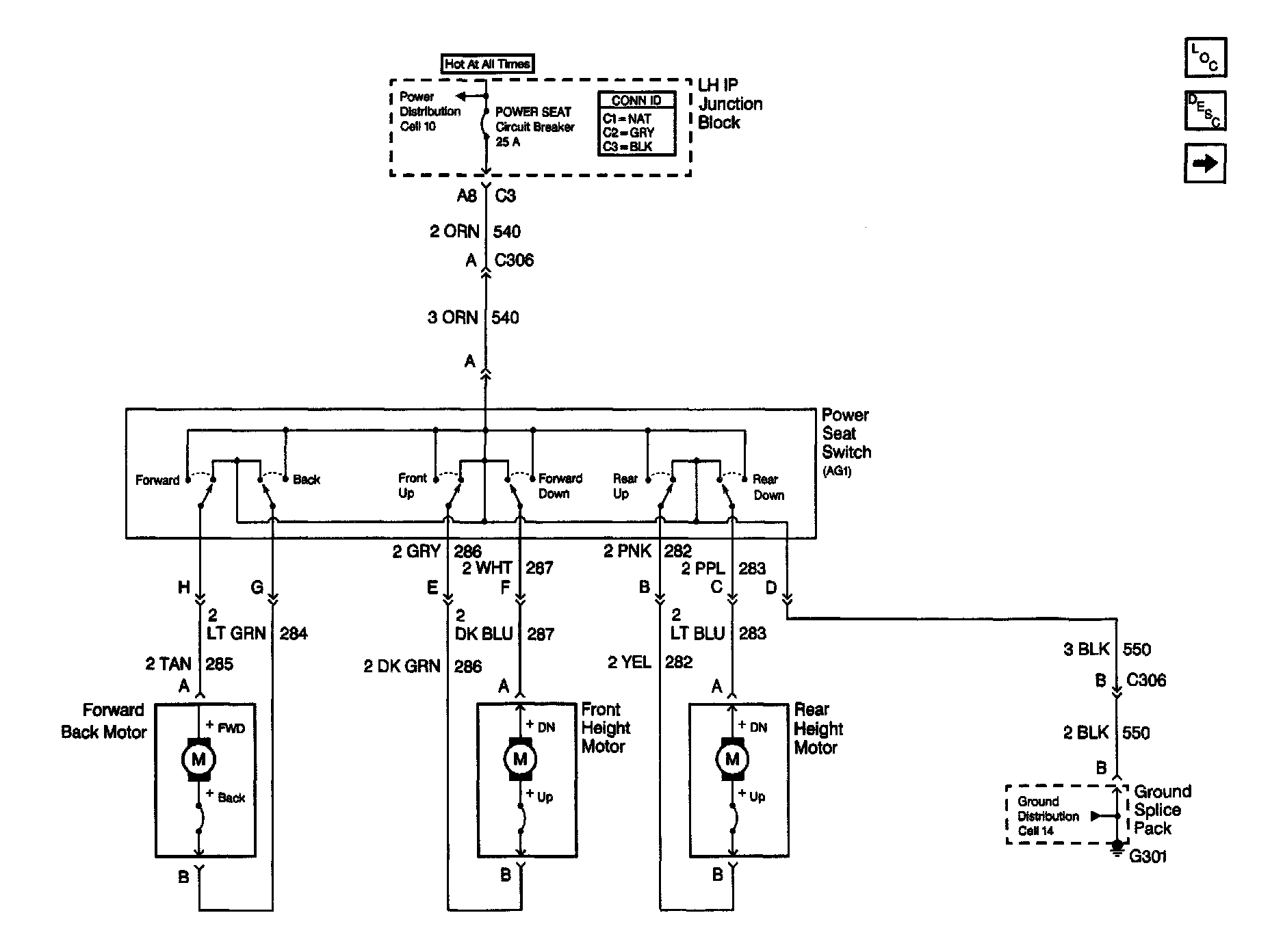

Power Seats Schematics: 6-Way Power Seats:
