Engine








Upper Intake Manifold and Components





Lower Intake Manifold, Cylinder Head, and Components

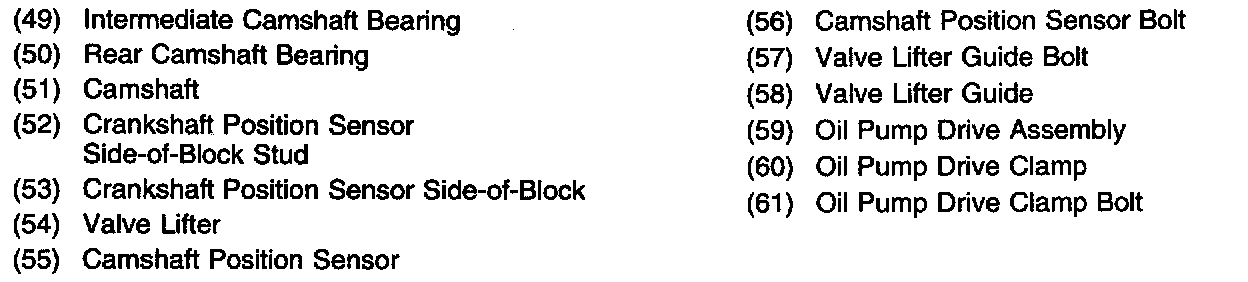

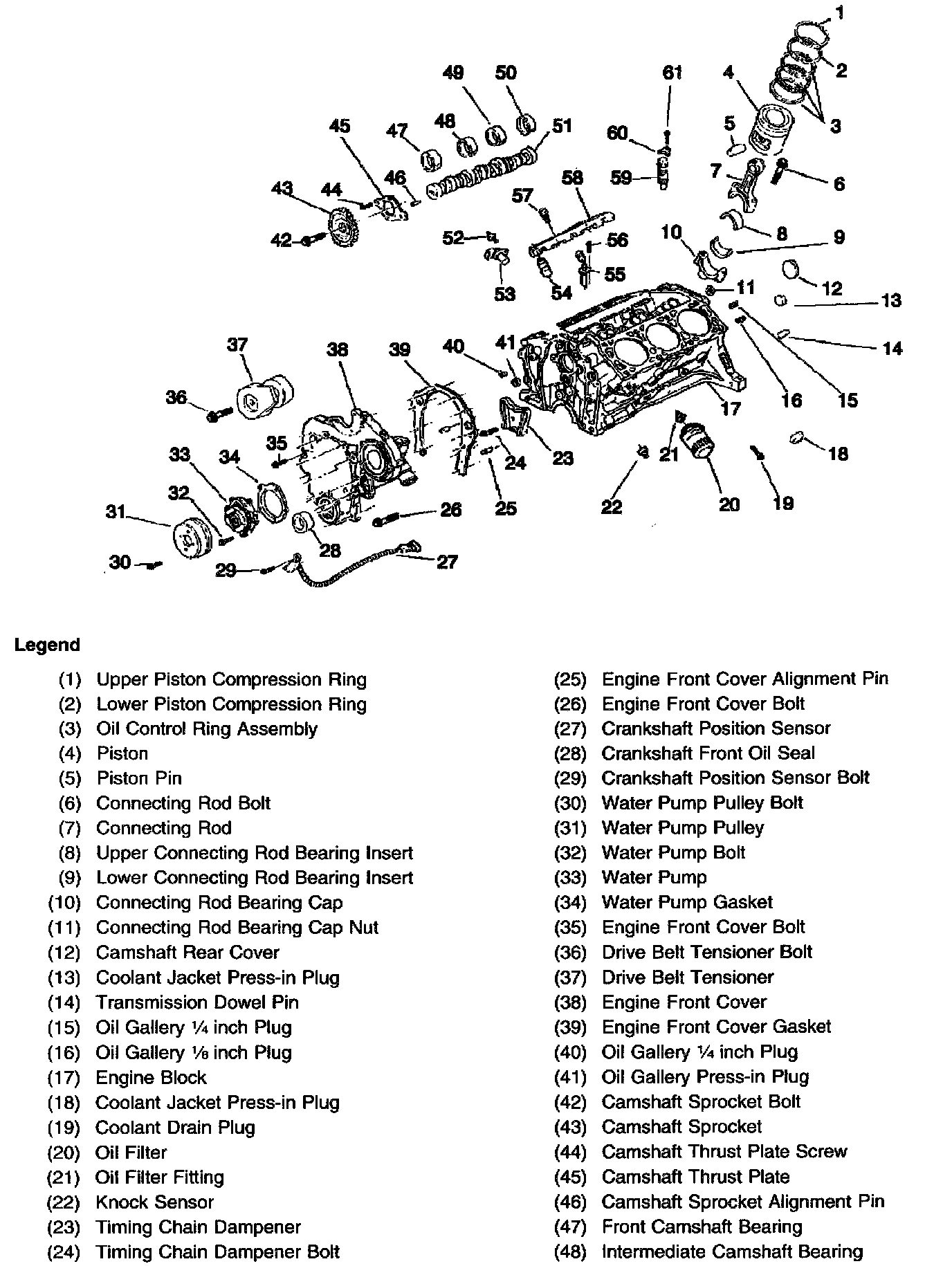

Engine Block and Components

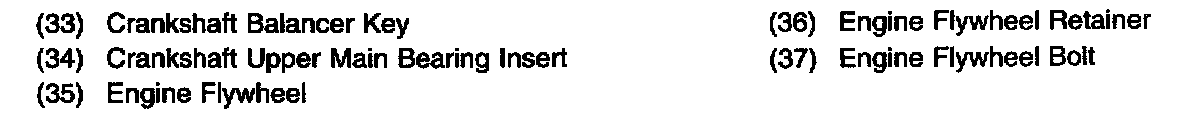

Crankshaft and Components
