Blower Motor: Locations

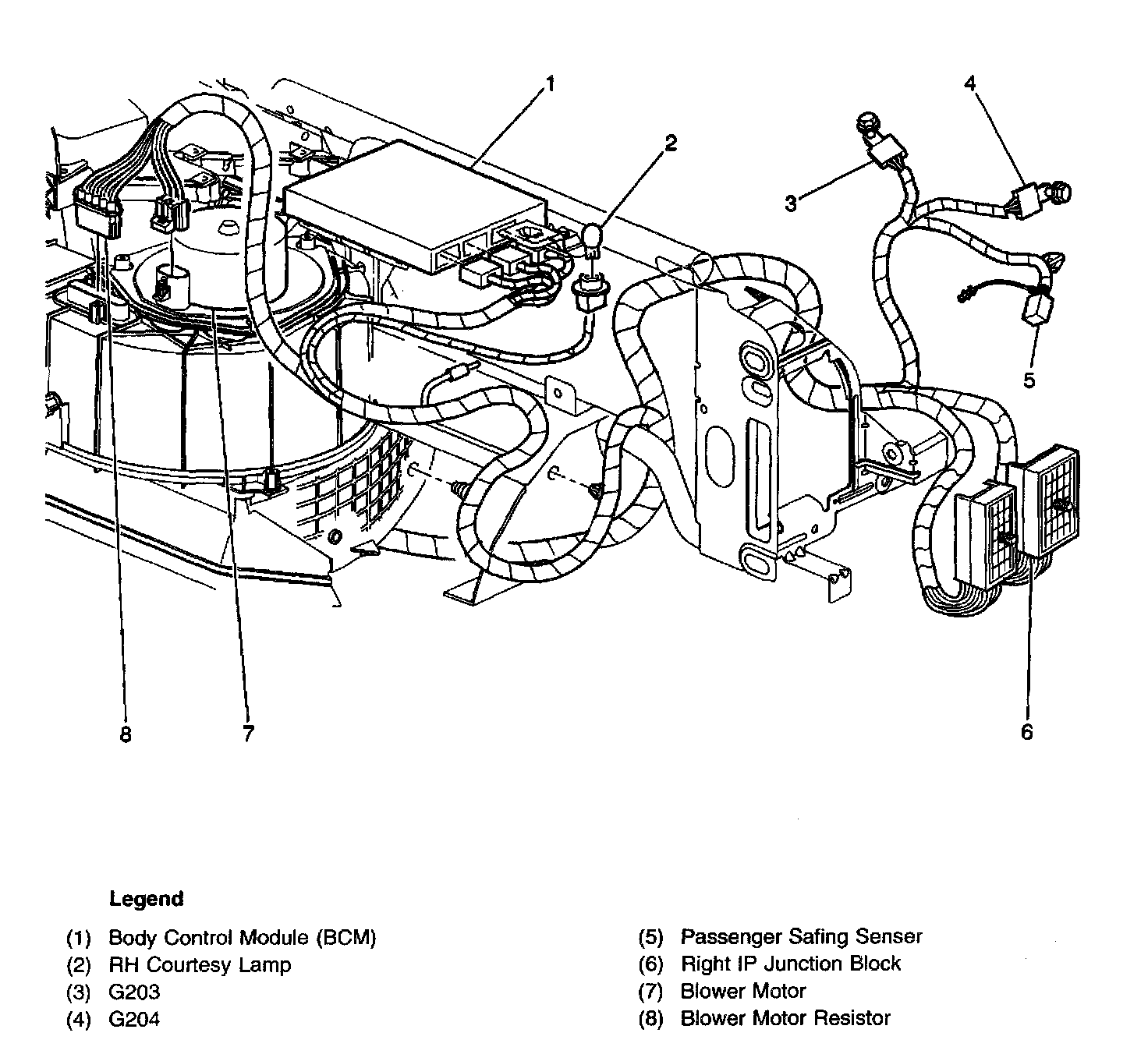

IP Wiring Harness Installation (RH):
Location View:
BLOWER MOTOR
Below the right side of the IP
