Center Mounted Brake Lamp: Service and Repair

REMOVAL PROCEDURE

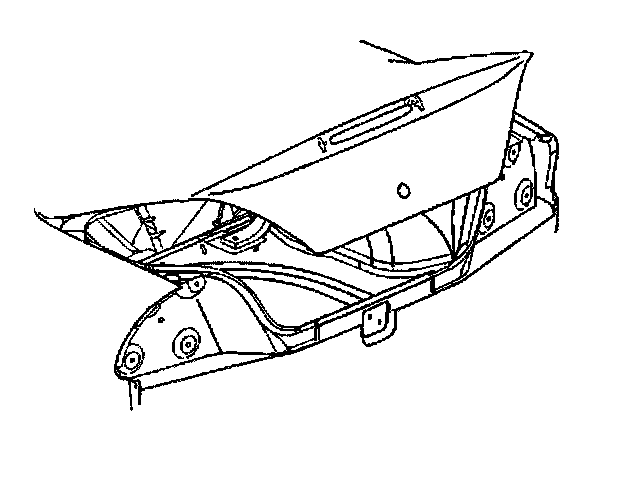

1. Open the rear deck lid.
2. Remove the screws which retain the socket to the lamp assembly.
3. Remove the socket from the lamp assembly.
4. Remove the bulbs from the socket.
Twist the bulb and pull outward.

INSTALLATION PROCEDURE
1. Install the bulbs to the socket.
Push the bulb inward and twist until the bulb is retained.
2. Install the socket to the lamp assembly.

NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Install the screws which retain the socket to the lamp assembly.

Tighten
Tighten the stoplamp socket to lamp assembly to 2 N.m (17 lb in).

4. Close the rear deck lid.
