Dimmer Switch: Service and Repair

IP Dimmer Switch Replacement




REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.

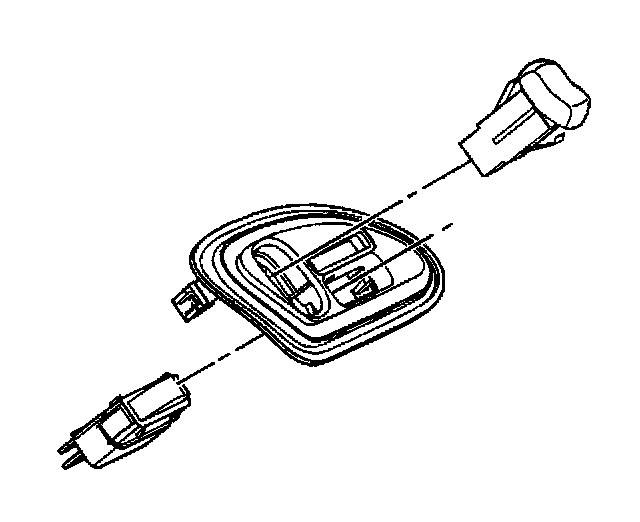

2. Use a flat blade tool in order to unsnap the interior lamp control assembly from the trim plate.
3. Disconnect the electrical connector.

INSTALLATION PROCEDURE
1. Connect the electrical connectors.
2. Install the switch into the cluster trim plate.
3. Connect the negative battery cable.
