Initial Inspection and Diagnostic Overview

Use the following procedure in order to test batteries:
- Visual Inspection:
Inspect for obvious damage, such as a cracked or broken case or cover, that could permit loss of electrolyte. If you see obvious damage, replace the battery. Determine the cause of damage and correct as needed. If not, proceed to step 2.

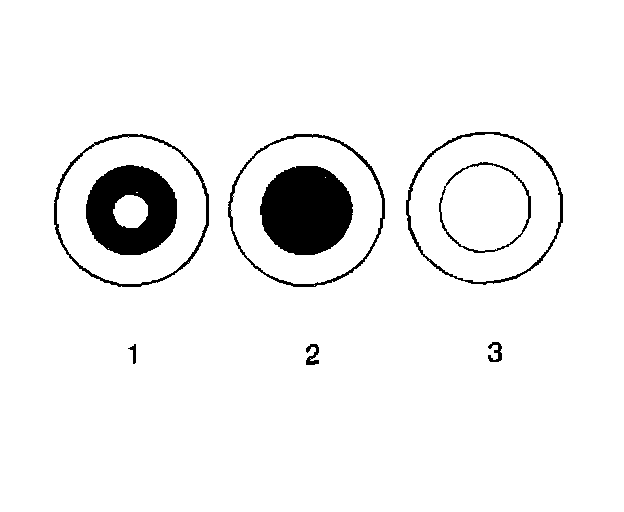

^ Hydrometer Inspection:
- Green Dot Visible: See Load Test.
- Dark; Green Dot Not Visible: Charge the battery as outlined under Battery Charging, and proceed to Load Test.
- Clear or Yellow Dot: If the hydrometer is clear or light yellow, the battery is low on electrolyte. Replace the battery.
