Radio/Stereo: Service and Repair

REMOVAL PROCEDURE



1. Remove the instrument panel cluster trim plate.

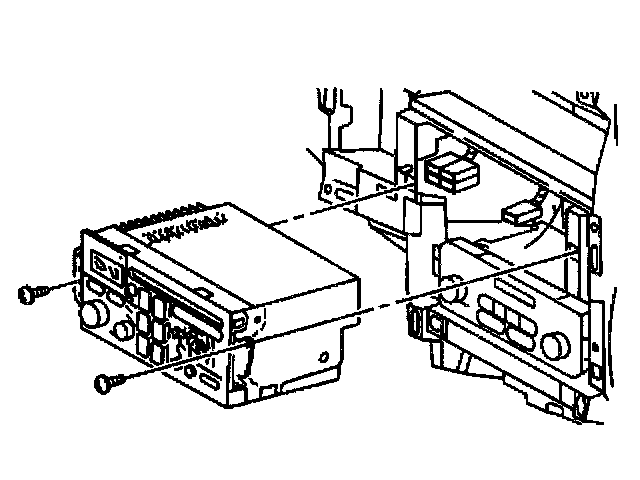

2. Remove the screws from the radio.

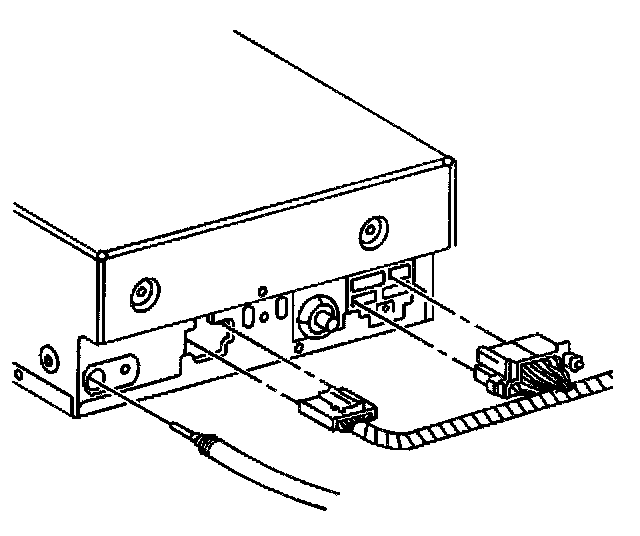

3. Disconnect the electrical/audio and the coaxial cable connectors from the radio.
4. Remove the radio from the instrument panel.

INSTALLATION PROCEDURE



1. Connect the electrical/audio and the coaxial cable connectors to the radio.
2. Install the radio to the instrument panel. Align the radio control locator tab to the instrument panel locator hole while carefully pressing the radio into the instrument panel until fully seated.





NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Install the screws to the radio.

Tighten
Tighten the radio screws to 2 N.m (18 lb in).

4. Install the instrument panel cluster trim plate.
